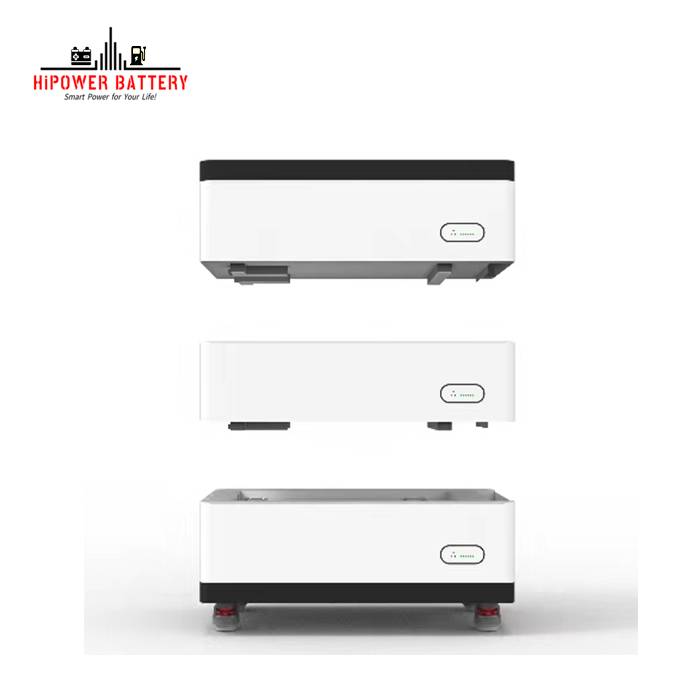

HiPOWER Stacked Type LiFePO4 Energy Storage System from 5KWH to 500KWH

HiPOWER Stacked Type LiFePO4 Energy Storage System from 5KWH to 500KWH

Module Voltage: 48V/ 51.2V
Module Capacity: 100Ah/ 150Ah/ 200Ah/ 300Ah
Module Connection in Parallel: 16PCS Max.
Application Scenarios: Residentials, Offices, Business Centers, Shopping Malls, Banks and Other Buildings Power Supply
Product description: HiPOWER Stacked Type LiFePO4 Energy Storage System from 5KWH to 500KWH for Residential, Commercial and Industrial Power Back-up Supply. Our ESS Can Compatible with Most of the Brand Inverters. Welcome
INQUIRY

Specifications:

Stacked Type Battery Modules
Product Model	HPLF51100	HPLF51160	HP51175	HPLF51200	HPLF51280
Battery Cell Parameters
Battery Cell Type	LiFePO4	LiFePO4	LiFePO4	LiFePO4	LiFePO4
Nominal Voltage	3.2V	3.2V	3.2V	3.2V	3.2V
Nominal Capacity	100Ah	160Ah	175Ah	200Ah	280Ah
Voltage Rage	2.8V-3.65V	2.8V-3.65V	2.8V-3.65V	2.8V-3.65V	2.8V-3.65V
Certifications	MSDS/ UN38.3/ UL1973/ IEC62619
Battery Module Parameters
Nominal Voltage	51.2V	51.2V	51.2V	51.2V	51.2V
Nominal Capacity	100Ah	160Ah	175Ah	200Ah	280Ah
Energy by kWh	5.12kWh	8.192kWh	8.86kWh	10.24kWh	14.336kWh
Serial/Parallel	16S1P	16S1P	16S1P	16S1P	16S1P
Discharge Voltage	40V-58.4V	40V-58.4V	40V-58.4V	40V-58.4V	40V-58.4V
Charge Voltage	54.4V-55.2V	54.4V-55.2V	54.4V-55.2V	54.4V-55.2V	54.4V-55.2V
Floating Charge Voltage	53.6V-54.4V	53.6V-54.4V	53.6V-54.4V	53.6V-54.4V	53.6V-54.4V
Max. Charge Current	100A	100A	100A	100A	100A
Max. Discharge Current	100A	100A	100A	100A	100A
Dimensions	198423630mm	230423681mm	230423681mm	277425681mm	282425776mm
Weight (About)	49.5kgs	70.5kgs	70.5kgs	93.5kgs	123.8kgs
Housing	Metal Case
Cycle Life	>5000 cycles @ 80% DOD
Design Life Span	>15 years
Charge Temperature	0℃ ~ 55℃ (32F ~ 131F) @60±25% Relative Humidity
Discharge Temperature	-20℃ ~ 60℃ (-4F ~ 140F) @60±25% Relative Humidity
Storage Temperature	0℃ ~ 45℃ (32F ~ 113F) @60±25% Relative Humidity
IP Rating	IP20
Communication	CAN /RS485 /RS232
Connection in Parallel	Max. 16pcs
BMS Protections	Over charge, Over discharge, Over current, Over Voltage, and Temperature Protections

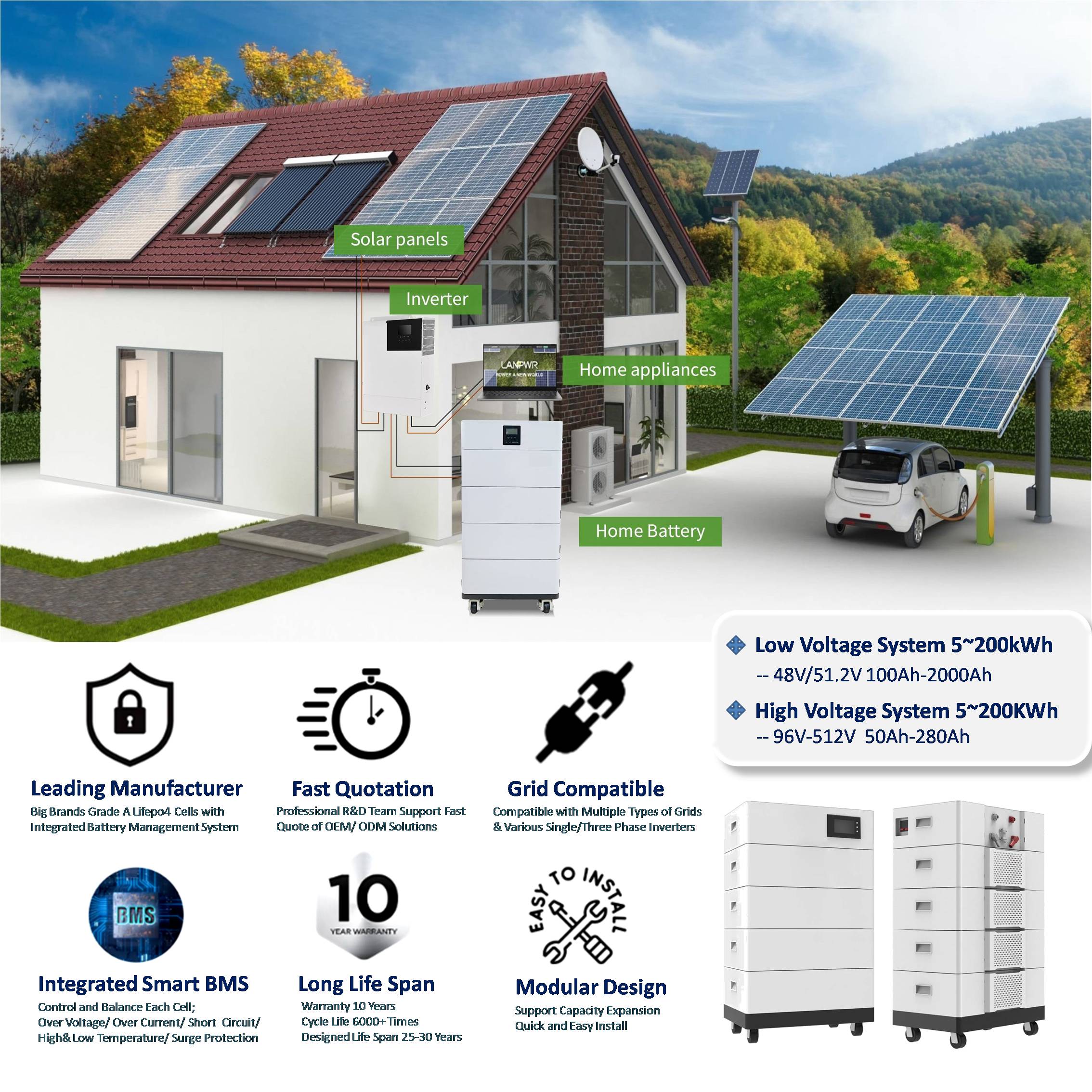

Applications	Solar/Wind Energy Storage/Communication Backup/ Household and Commercial Energy Storage System/ Power Station, etc.
If Support OEM / ODM	YES

Feartures:

1) High performance Grade A LiFePO4 battery cells of major brands are selected, with cycle life 6000+ times and service life 20+ years. The comprehensive operation cost is low.

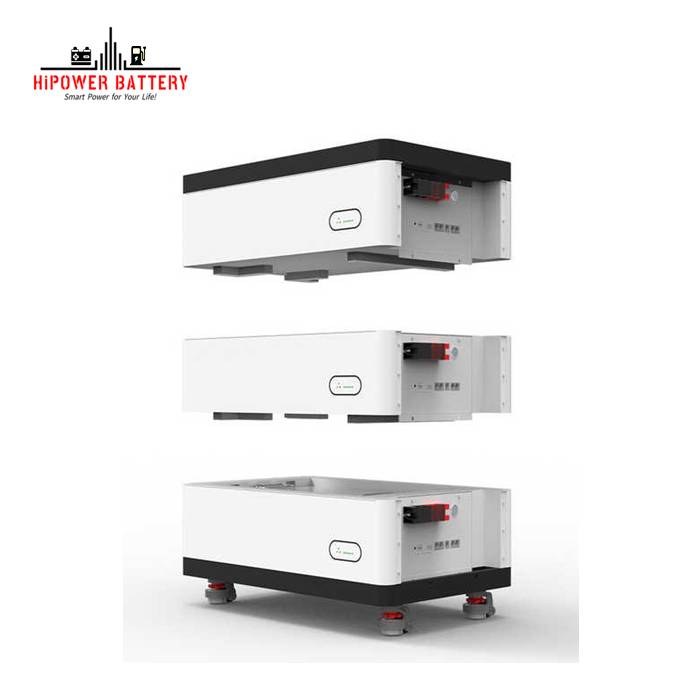

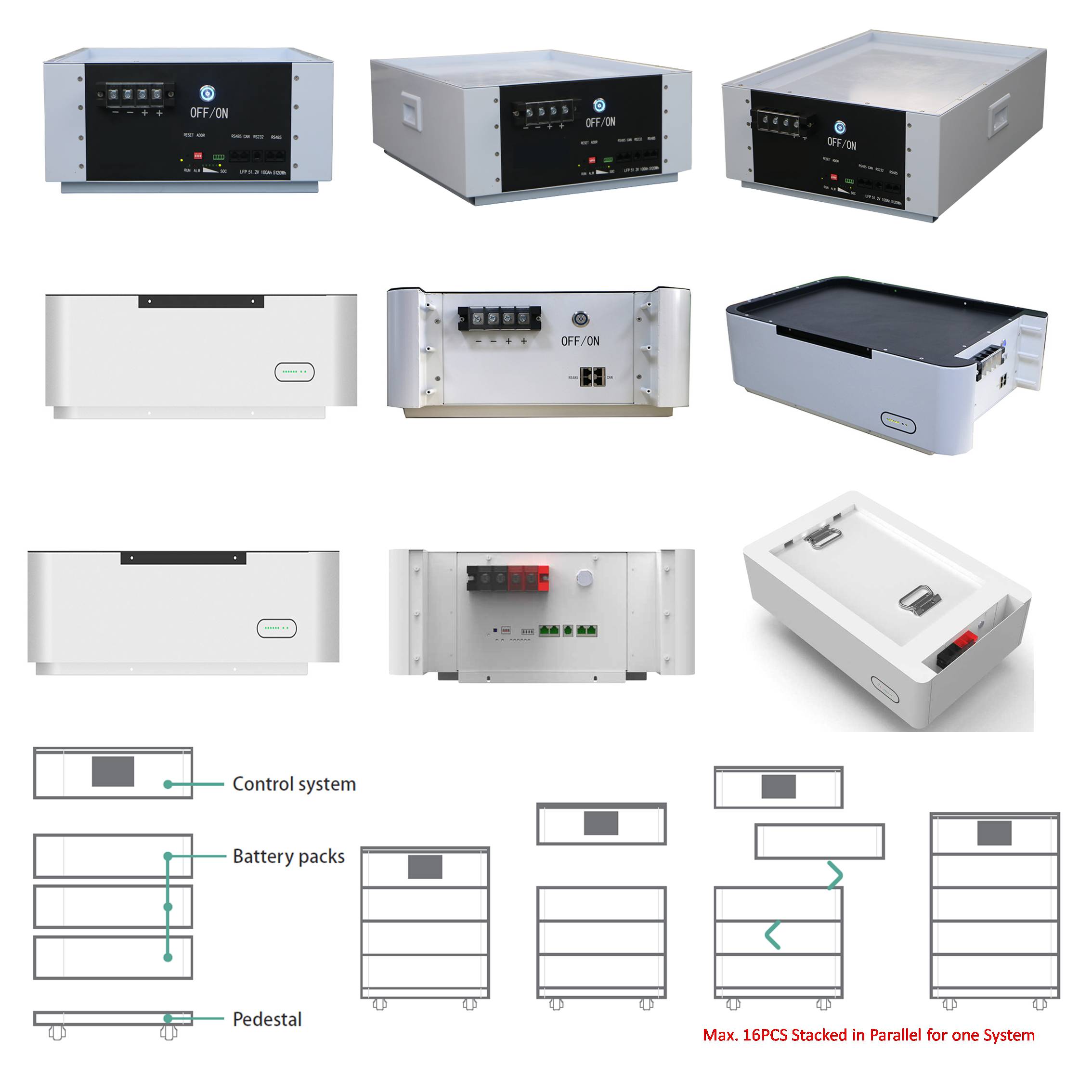

2) Professional design and compact structure minimize the size, and the product is in harmony with the home environment. It can supports 8 units battery modules in stacked and max 16pcs stacked for one system.

3) With Perfect BMS protection functions and all-round control system, the battery sytem can run safely and efficiently.

4) CAN2.0, RS485 and RS232 communication protocols are supported, and inverters of various brands can be matched.

5) It can add touch LCD screen according to your demands and you can check the operation state and data in real time, and grasp all the information of the battery system accurately.

Different Designed Battery Modules:

HiPOWER Stacked Type Energy Storage System
