Lifepo4 battery 12.8V 100Ah

Nominal Voltage: 12.8V
Nominal Capacity: 100Ah
Working current: 10A - 18A
Charging Current: 10A - 18A
Product description: Lifepo4 battery 12.8V 100Ah for solar street light
INQUIRY

Lifepo4 battery 12.8V 100Ah

Specification:

Lifepo4 Battery pack 12.8v 100ah	Pack Method	4S2P
	Nominal Capacity	104Ah	Discharge : 10A Cut-off Voltage:10V
	Minimum Capacity	100Ah	Discharge : 10A Cut-off Voltage: 10V
	Nominal Voltage	12.8V
	Energy	1280Wh
	Charge Voltage	14.6V
	Discharge cut-off voltage	10V
	Charge Method	CC/CV
	Standard Charge Current	10A	0.1C
	Max. Charge Current	18A
	Standard Discharge Current	10A	0.1C
	Max. Continuous Discharge current	18A
	Peak Discharge Current	52A	<400mS
	Cycle Life	≥2000 times	≥80%
	Internal Impedance	≤33mΩ
	Dimension	Max. 106×198x345mm	Can be customized
	Output Wire	AWG14	Red/Black,L=510±20 mm
	Output Connector	N/A
	Weight	Approx.11.5kgs
	Working Temperature Range	Charge: 0°C--45°C Discharge: -20°C--60°C
	Storage Temperature	-10°C--45°C
	Storage Humidity	65±20%

Features:

1. Lighter weight, smaller size
2. High temperature performance
3. Extremely safe, no explosion, no fire under collision
4. Strong over-discharge resistance and charge retention
5. Strong charging acceptance and quick-charging capability
6. Maintenance-free and no acid or water for maintenance in usage
7. Large capability and long life for all high power output applications
8. Environmentally friendly non-toxic, non-contaminating, no rare metal.
9. Low self-discharge and good discharge performance at low temperature

10. Excellent large current discharge performance especially in startup and climbing

Applications:

Solar Street Light, LED light, Emergency Lighting, CCTV, Solar Storage System, ect.

*Small Orders Accepted

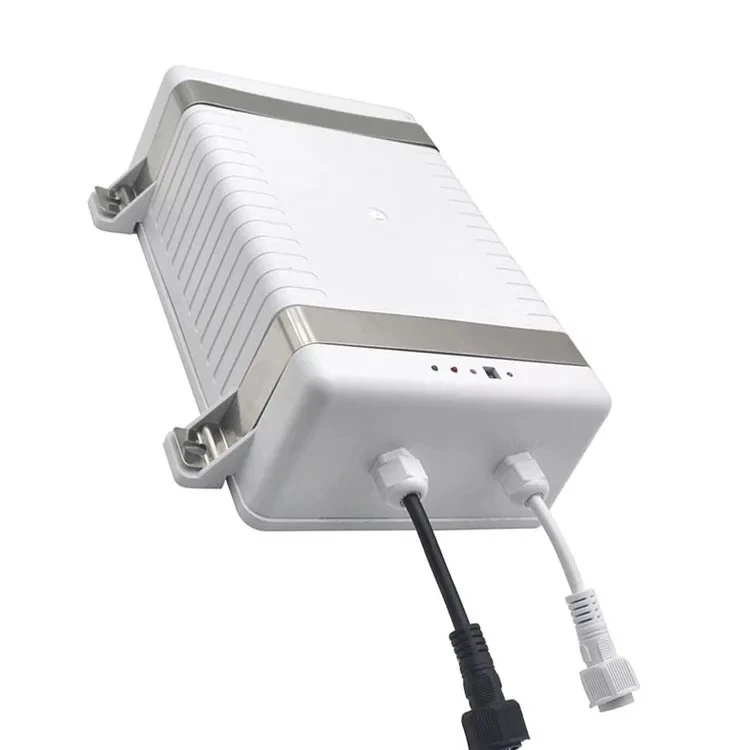

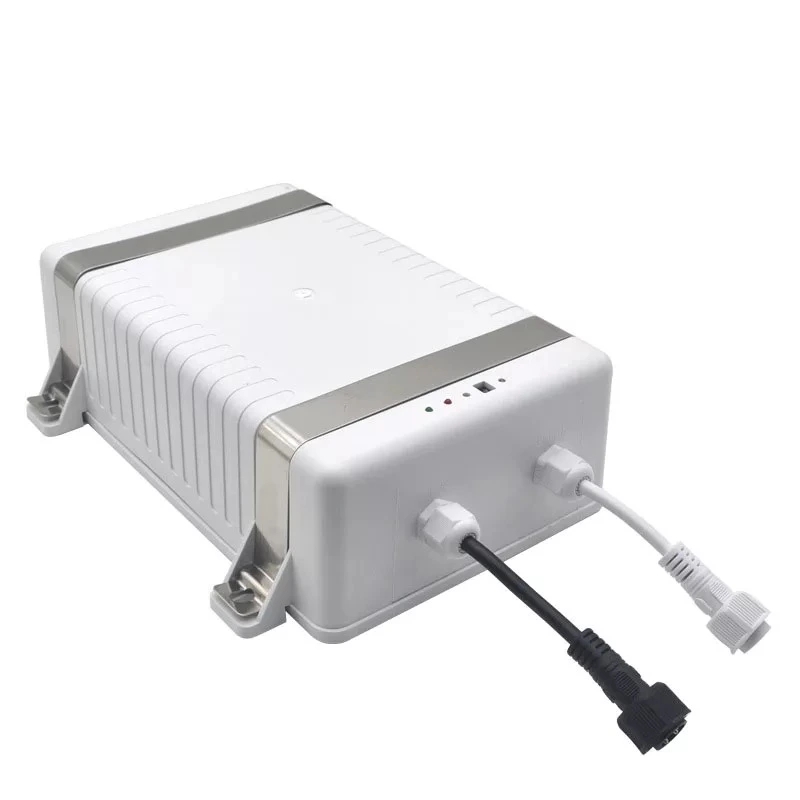

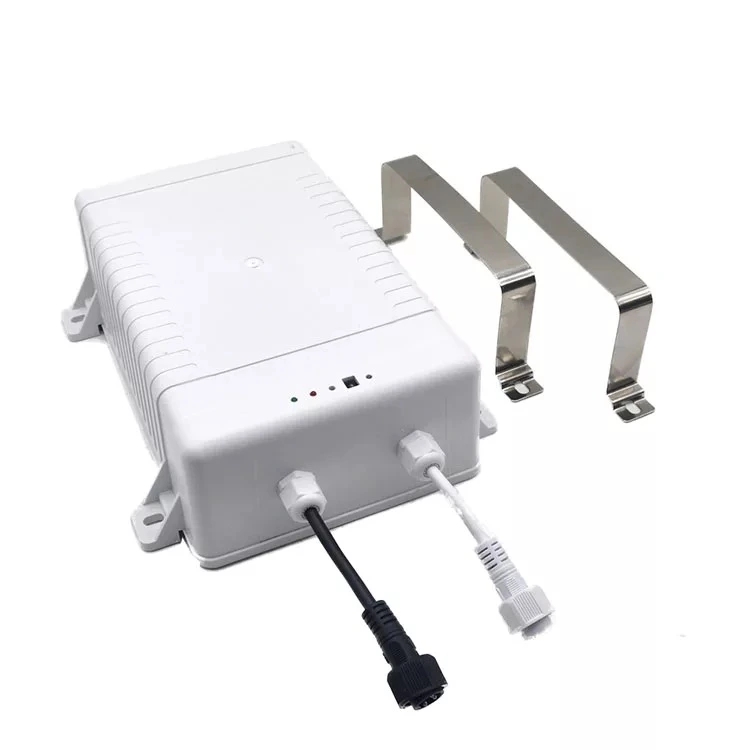

Product Pictures:
