Li Ion battery 24V 4Ah for electric skateboard hoverboard scooter
1. Main parameters of li-ion battery pack 24v 4ah
|
1 |
Battery cell model |
18650 |
|
2 |
Combination |
6S2P+PCM |
|
3 |
Nominal voltage |
22.2V |
|
4 |
Nominal capacity |
4Ah |
|
5 |
Standard discharge current |
0.2C |
|
6 |
Max discharge current |
1C |
|
7 |
Standard charge current |
0.2C |
|
8 |
Fast charge current |
0.5C |
|
9 |
Inner resistance |
290mohm |
|
10 |
Over discharge cut off voltage/series |
2.4 ± 0.06V |
|
11 |
Over charge protection voltage/series |
4.25± 0.03V |
|
12 |
Discharge working temperature |
-20-60°C |
|
13 |
Charge working temperature |
0-45°C |
|
14 |
Recommended storage temperature |
23 ± 5°C |
|
15 |
Flow value |
5A |
|
16 |
Weight |
about 600g |
|
17 |
Size |
L*W*H= 111.3*39.1*68.5mm |
2.Applications of Battery Pack 24v 4ah
1) Telecommunications: Cellular phone, interphone, blue tooth earphone.
2) Video Devices: MP3/MP4/MP5, digital camera, portable DVD, portable television
3) Portable Devices: GPS,PDA, E-book ,PMP, PSP, portable medical device etc.
4) Illuminate Devices: Miner lamp, search light.
5) Electric Scooter, Skateboard

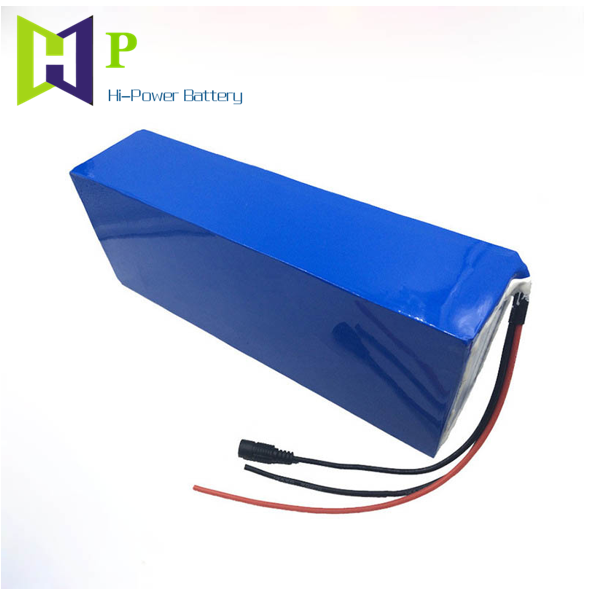

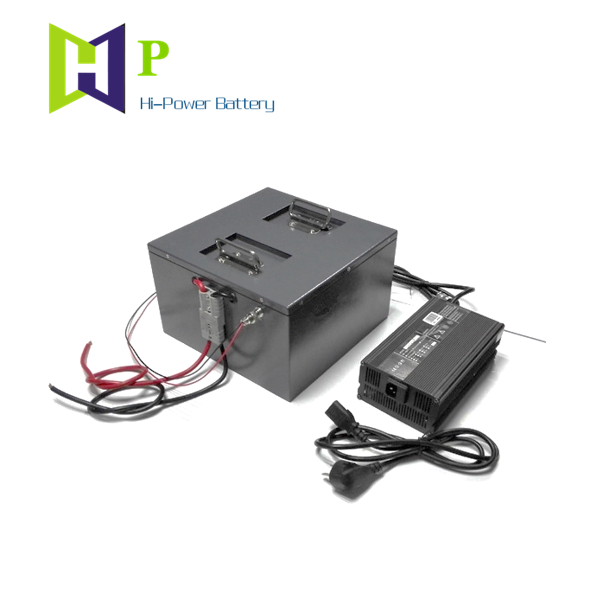

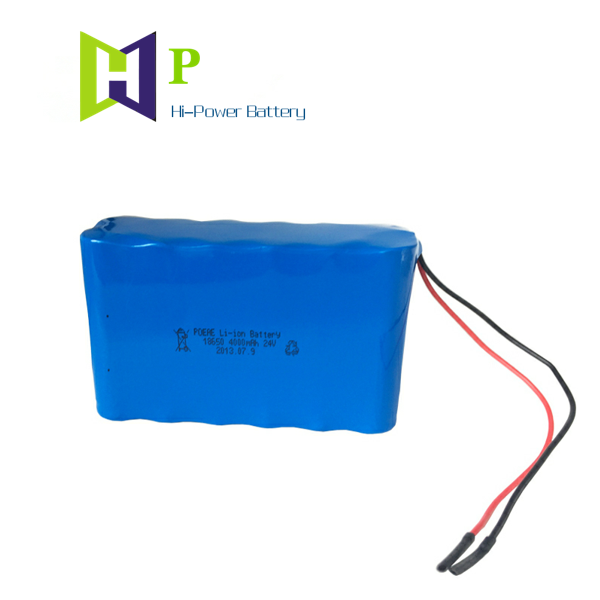

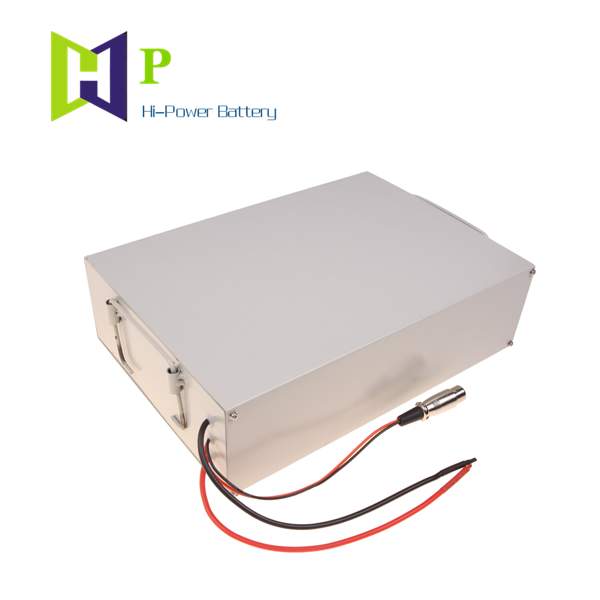

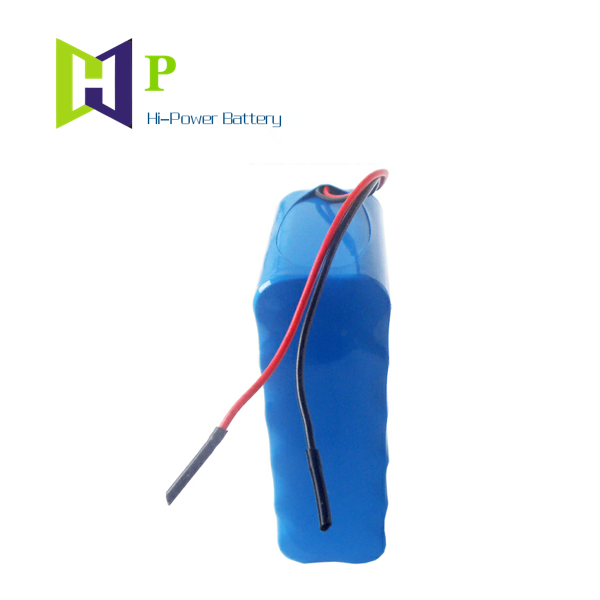

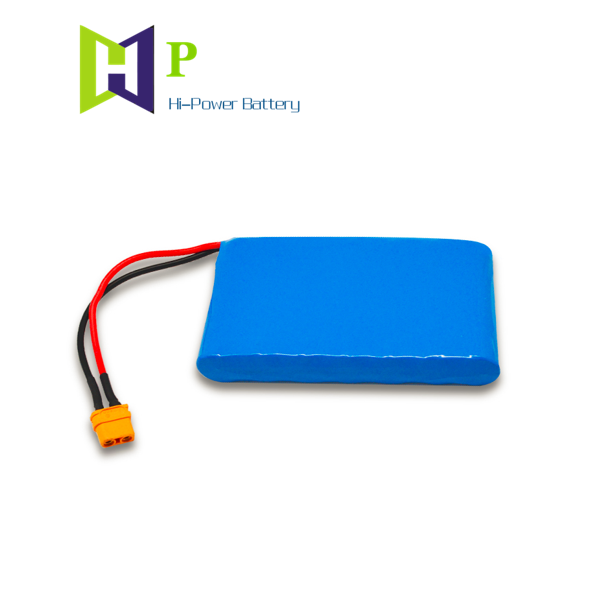

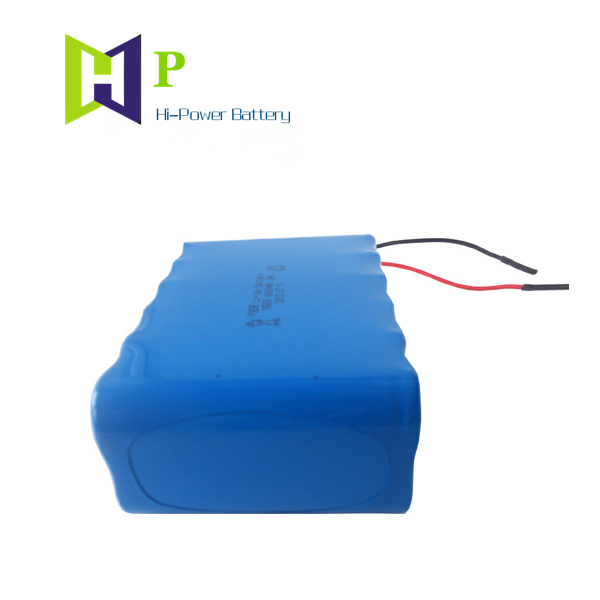

Product Pictures:

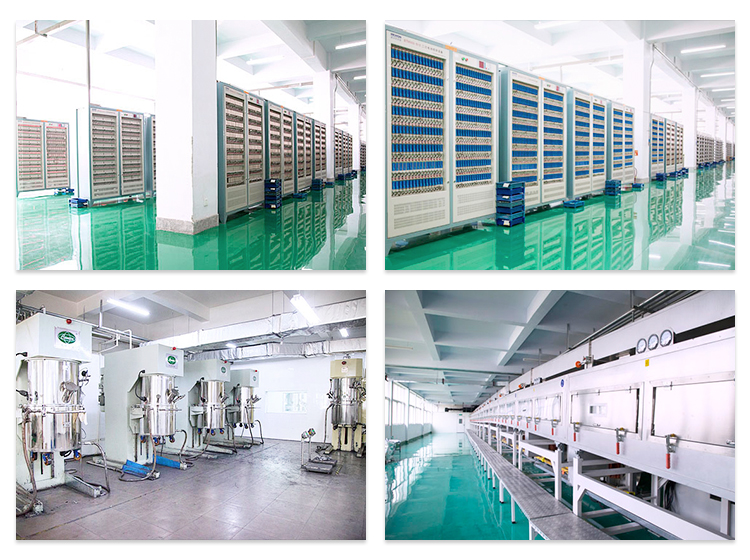

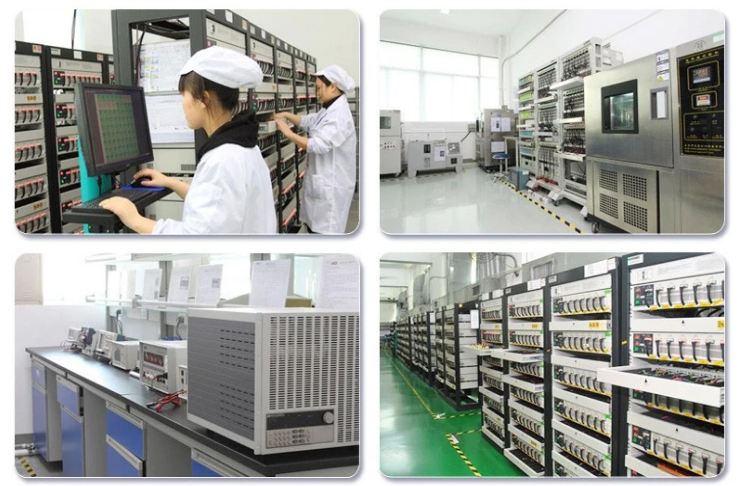

Testing Center:

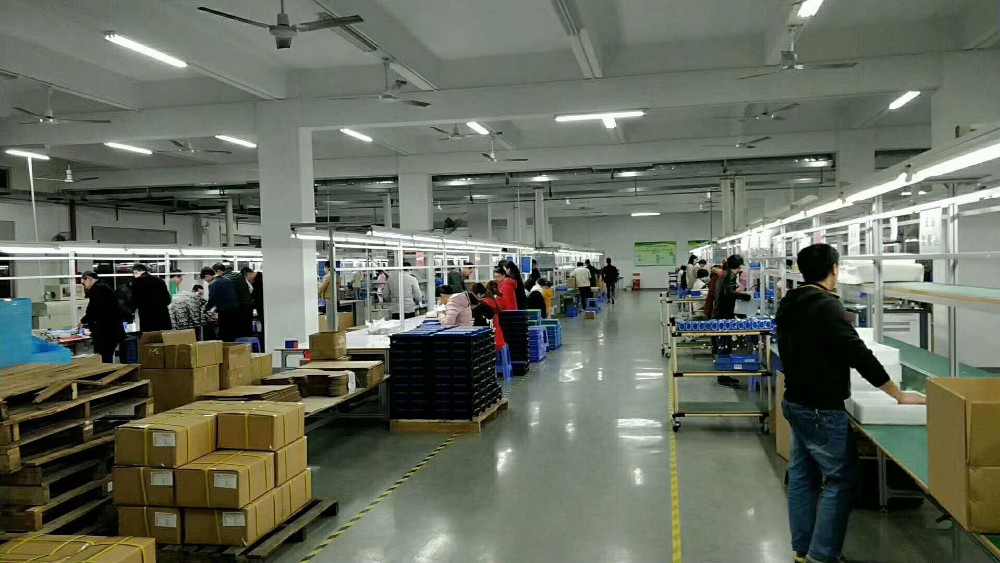

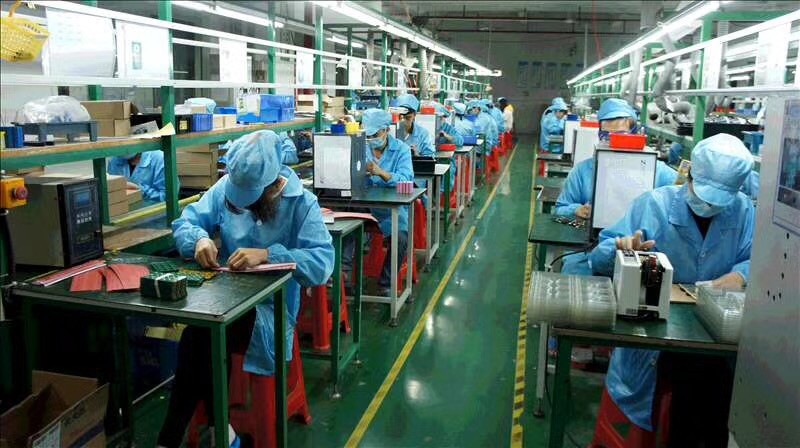

Workshop:
