E-bike Batteries

Li-Ion battery 24V 7.5Ah

  • Nominal Voltage: 24V
  • Nominal Capcity: 7.5AH
  • Working Current: 1C-3C
  • Cycle Life: > 800Times
  • Product description:
  • INQUIRY

Hi-Power Lithium Ion Battery Pack 6S3P 18650 24V 7.5Ah with Built-in BMS for E-bike/ Portable E-scooter


Model No.

HP-7S3P-24V7.5Ah

Voltage

24V

Nominal Capacity

7.5Ah or customized

Cell Material

Li(NiCoMn)O2

Weight

1.05Kg(Appr.)

Outside dimension

Customized

Working discharge current

Customized

Regular charging current

2A or 4A or Customized

Assembly Mode

7S3P

Cell QTY

21pcs 18650 battery cells

Certificate

CE, UN38.3,ROHS, MSDS,UL

With BMS/PCB

Yes,regular version or customized

Over charge protection

Yes

Over discharge protection

Yes

Over current protection

Yes

Temperature protection

Yes

Pollution-free

Yes

Memory effect

No

Charge Method

CC-CV

Operation Temperature

Charge:0-45oC

Discharge:-20-60oC

Cycle life

>800 times

Warranty

1 Year



2.Applications of Battery Pack 24v 6ah

1) Telecommunications: Cellular phone, interphone, blue tooth earphone.

2) Video Devices: MP3/MP4/MP5, digital camera, portable DVD, portable television

3) Portable Devices: GPS,PDA, E-book ,PMP, PSP, portable medical device etc.

4) Illuminate Devices: Miner lamp, search light.

5) Electric Scooter, Skateboard, E-bike

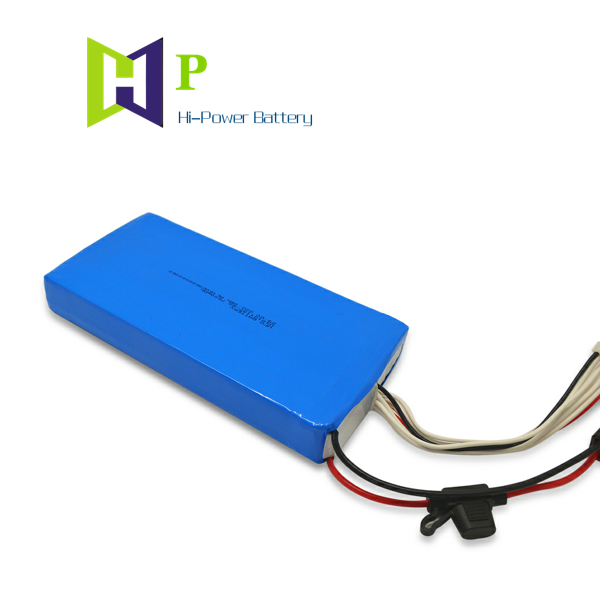

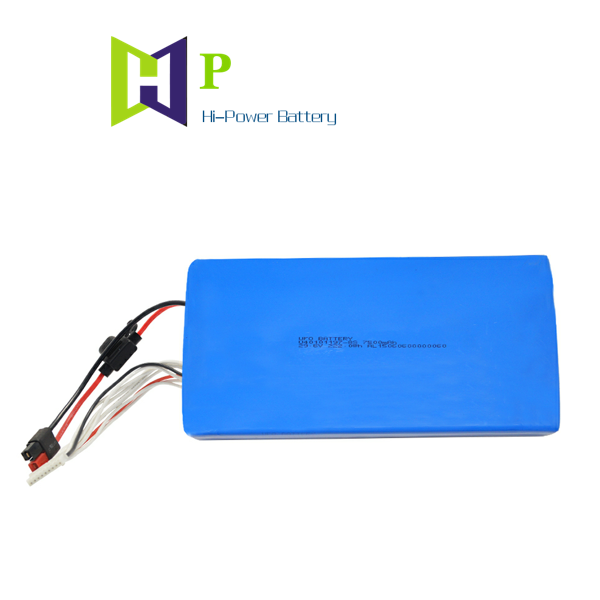

Product Pictures:




Testing Center:



Workshop:
