Lead Acid Replacements

  • LiFePO4 12V 50AH
  • LiFePO4 12V 50AH
  • LiFePO4 12V 50AH
  • LiFePO4 12V 50AH
  • LiFePO4 12V 50AH
  • LiFePO4 12V 50AH
LiFePO4 12V 50AHLiFePO4 12V 50AHLiFePO4 12V 50AHLiFePO4 12V 50AHLiFePO4 12V 50AHLiFePO4 12V 50AH

LiFePO4 12V 50AH

  • Max Continuous Working Current: 50A
  • Size: 198*166*170mm
  • Cycle Life: 3000cycles
  • Warranty: 3 years
  • Product description: LiFePO4 12V 50AH
  • INQUIRY

12V 50AH Deep Cycle LiFePO4 Lithium Battery for VRLA LEAD ACID BATTERY Replacement



Specification:






Electrical Characteristics

Nominal Voltage

12.8V

Nominal Capacity

50Ah

Minimum Capacity

50Ah

Energy

640Wh

Cycle Life

3000 cycles

Months Self Discharge

<3%

Efficiency of Charge

100% @0.5C

Efficiency of Discharge

96~99% @0.5C

BMS Functions

Over charge, over discharge, over current, short circuit and temperature protection



Standard Charge

Charge Voltage

14.2-14.6V

Charge Mode

0.2C to 14.6V, then 14.6V,charge current to 0.02C (CC/CV)

Charge Current

10A

Max. Charge Current

50A


Standard Discharge

Max Continuous Discharge Current

50A

Peak Discharge Current

150A±10A 0.5-1.5S

Discharge Cut-off Voltage

10V±0.5V



Environmental

Charge Temperature

0 to 55 (32F to 131F) @60±25% Relative Humidity

Discharge Temperature

-20 to 60 (-4F to 140F) @60±25% Relative Humidity

Storage Temperature

-20 to 45 (-4F to 113F) @60±25% Relative Humidity

IP Class

IP65


Mechanical

Plastic Case

ABS

Approx. Dimensions

Size: 198*166*170mm

Approx. Weight

4.8kgs




Remarks:

1. Warranty: 3 Years

2. OEM/ODM accepted, can supply sample(s) for test

3. Factory supplied directly, accept small qty order

4. Capable with various shipping methods, by air, by sea, by train, with FOB, CIF, DDP or DDU service


Applications:

Solar/Wind Energy Storage Application

     Back-up Power for UPS/ EPS

     Low Speed Electric Vehicles, i.e. RV, Caravan, Motor home

     Marine/fishing Boats

     Telecommunication

     DC Power Supply

     Auto Control System

     Power Tools

     Electric Toys


Features of Our LiFePO4 Battery:

High current resistant

Perfect replacement to lead battery

Built-in BMS

Very light weight

Fast charging

High intrinsic safety

Can be used in all positions

Wide Temperature: -20 to 60 (-4F to 140F)

Over 3000 cycles at 90% discharge

Lifespan up to 10 years

100% maintenance free

Environmentally friendly, no lead, no acid

Recyclable

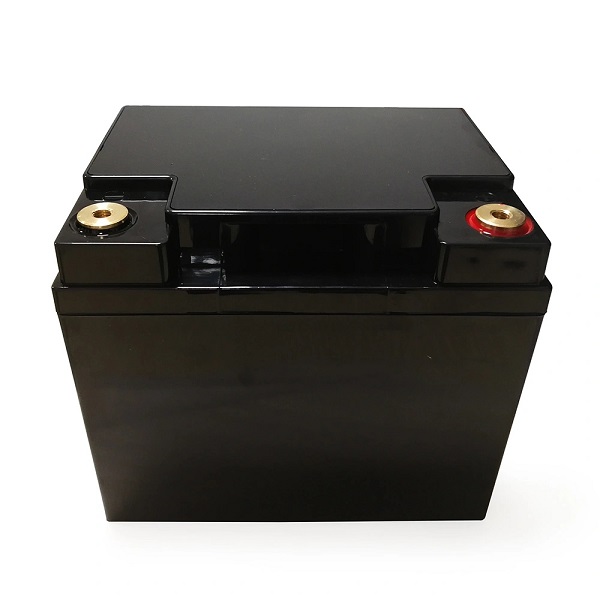

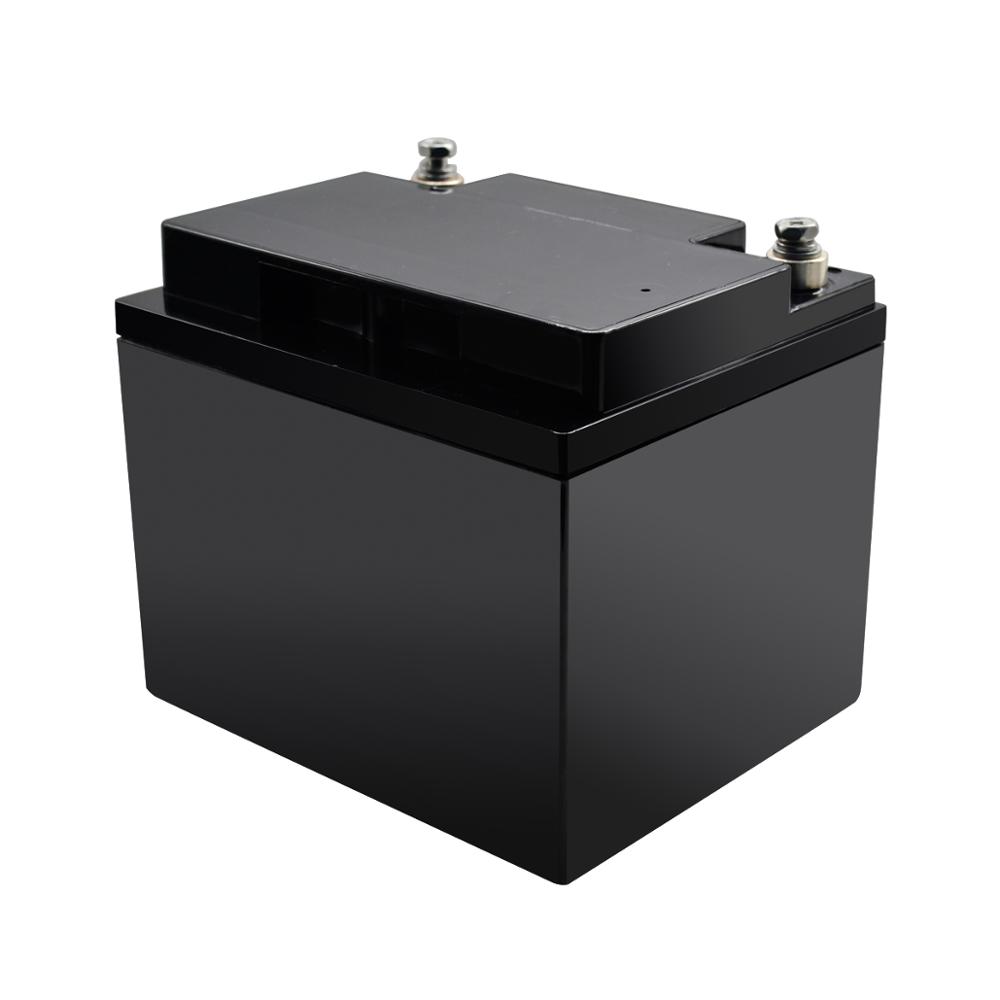

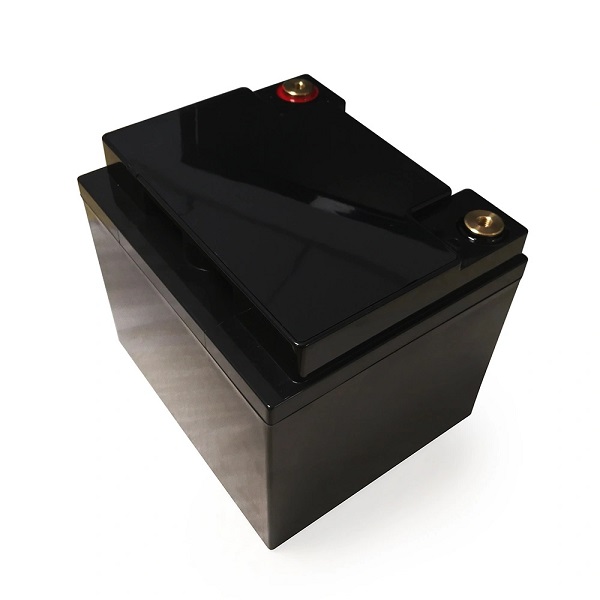

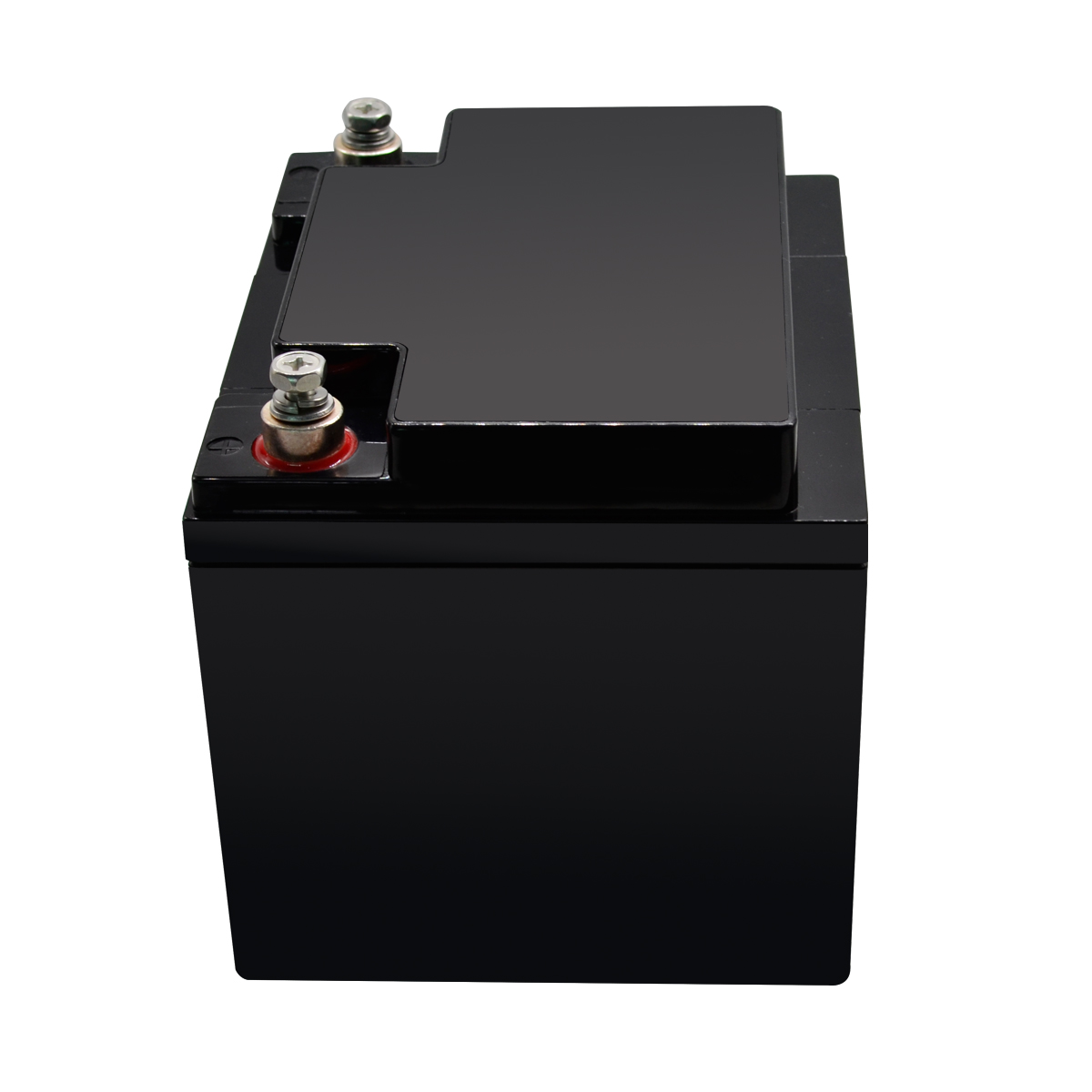

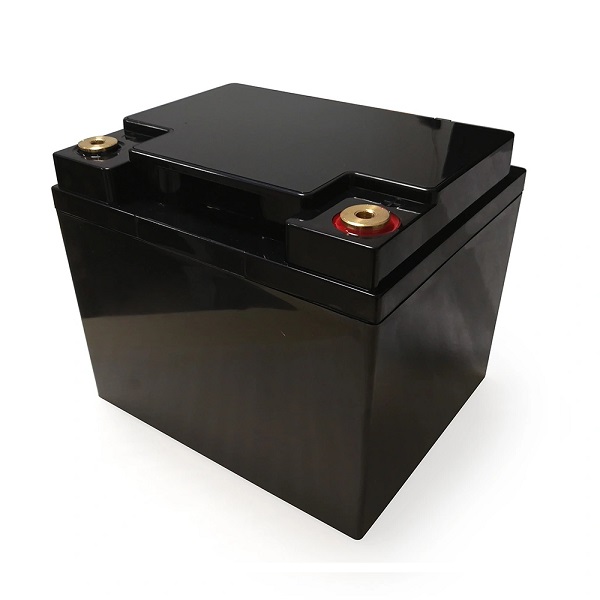

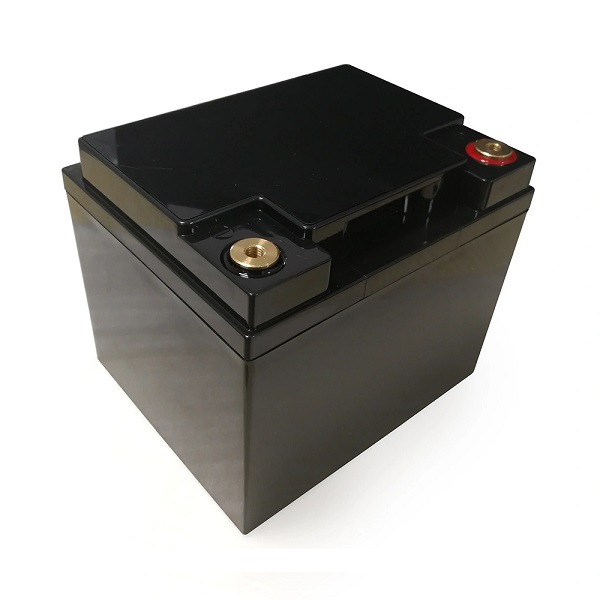

Product Pictures:
