Welcome: HiPOWER BATTERY

RVs and Vans Batteries

  • LiFePO4 RV Battery 12V 200AH
  • LiFePO4 RV Battery 12V 200AH
  • LiFePO4 RV Battery 12V 200AH
  • LiFePO4 RV Battery 12V 200AH
LiFePO4 RV Battery 12V 200AHLiFePO4 RV Battery 12V 200AHLiFePO4 RV Battery 12V 200AHLiFePO4 RV Battery 12V 200AH

LiFePO4 RV Battery 12V 200AH

  • Continuous Working Current: 200A
  • Energy: 2.56kWh
  • Cycle Life: 5000cycles
  • Warranty: 5 years
  • Product description: Deep Cycle Lithium Iron Battery 12V 200Ah 200A Smart BMS 5000 Cycle 5 Years Warranty for RV VAN Camper Golf Cart Marine Trolling Motors
  • INQUIRY

LiFePO4 RV Battery 12V 200AH



Specification:






Electrical Characteristics

Nominal Voltage

12.8V

Nominal Capacity

200Ah

Minimum Capacity

200Ah

Energy

2560Wh

Cycle Life

5000 cycles

Months Self Discharge

<3%

Efficiency of Charge

100% @0.5C

Efficiency of Discharge

96~99% @0.5C

BMS Functions

Over charge, over discharge, over current, short circuit and temperature protection



Standard Charge

Charge Voltage

14.2-14.6V

Charge Mode

0.2C to 14.6V, then 14.6V,charge current to 0.02C (CC/CV)

Charge Current

40A

Max. Charge Current

100A


Standard Discharge

Max Continuous Discharge Current

200A

Peak Discharge Current

400A±40A 0.5-1.5S

Discharge Cut-off Voltage

10V±0.5V



Environmental

Charge Temperature

0 to 55 (32F to 131F) @60±25% Relative Humidity

Discharge Temperature

-20 to 60 (-4F to 140F) @60±25% Relative Humidity

Storage Temperature

-20 to 45 (-4F to 113F) @60±25% Relative Humidity

IP Class

IP65


Mechanical

Plastic Case

ABS

Approx. Dimensions

L522xW240xH218mm

Approx. Weight

22kgs


Heating Element Specifications

Heating Temperature Range

-4 to 50 ºF (-20 to 10 )

Heating Time (Approximately)

1 hr @ 5 A

BMS Heating Element Cut-Off

167 ºF (75 )

Remarks:

1. Warranty: 5 Years

2. OEM/ODM accepted, can supply sample(s) for test

3. Factory supplied directly, accept small qty order

4. Capable with various shipping methods, by air, by sea, by train, with FOB, CIF, DDP or DDU service


Applications:

Solar/Wind Energy Storage Application

     Back-up Power for UPS/ EPS

     Low Speed Electric Vehicles, i.e. RV, Caravan, Motor home

     Marine/fishing Boats

     Telecommunication

     DC Power Supply

     Auto Control System

     Power Tools

     Electric Toys


Features of Our LiFePO4 Battery:

High current resistant

Perfect replacement to lead battery

Built-in BMS

Very light weight

Fast charging

High intrinsic safety

Can be used in all positions

Wide Temperature: -20 to 60 (-4F to 140F)

Over 3000 cycles at 90% discharge

Lifespan up to 10 years

100% maintenance free

Environmentally friendly, no lead, no acid

Recyclable


Optional Function on Our LiFePO4 Batteries:

Bluetooth APP

We can customize the bluetooth APP with your company Logo and unique design for you.

Users can monitor the real-time status through the Bluetooth APP on the smart mobile phones.

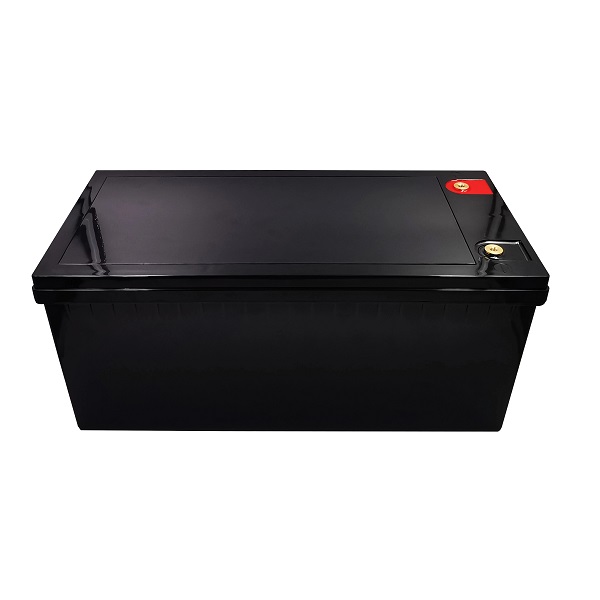

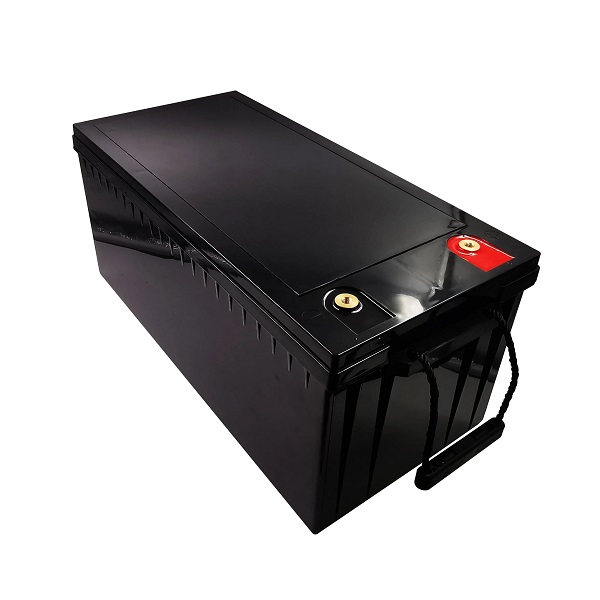

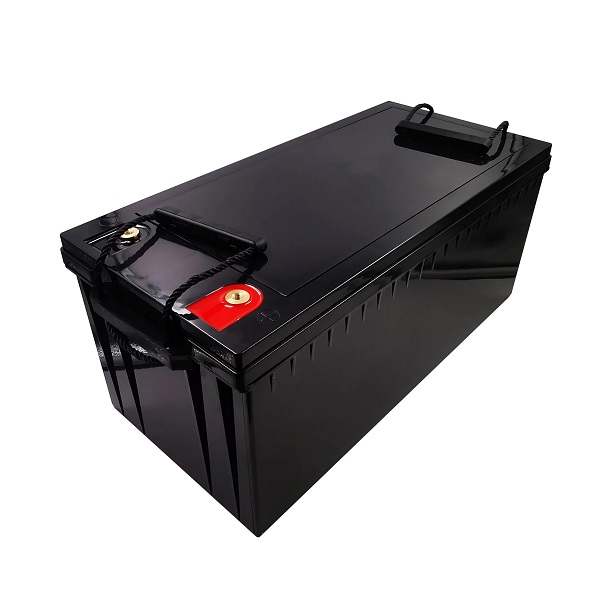

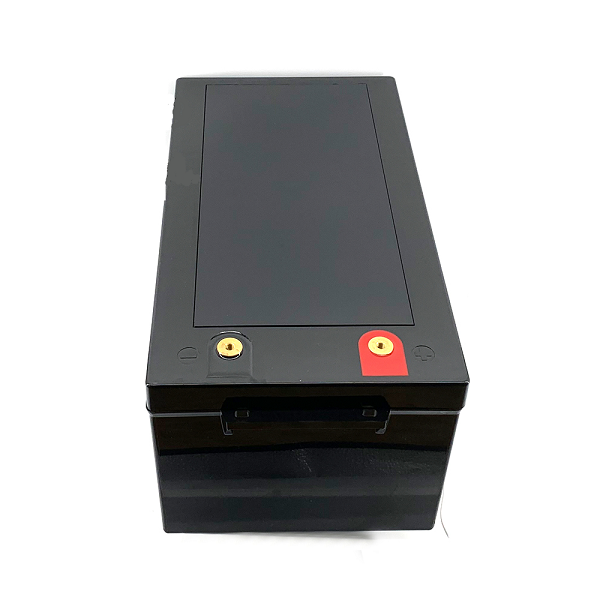

Product Pictures:
