Welcome: HiPOWER BATTERY

Lithium for Lead Acid Replacements

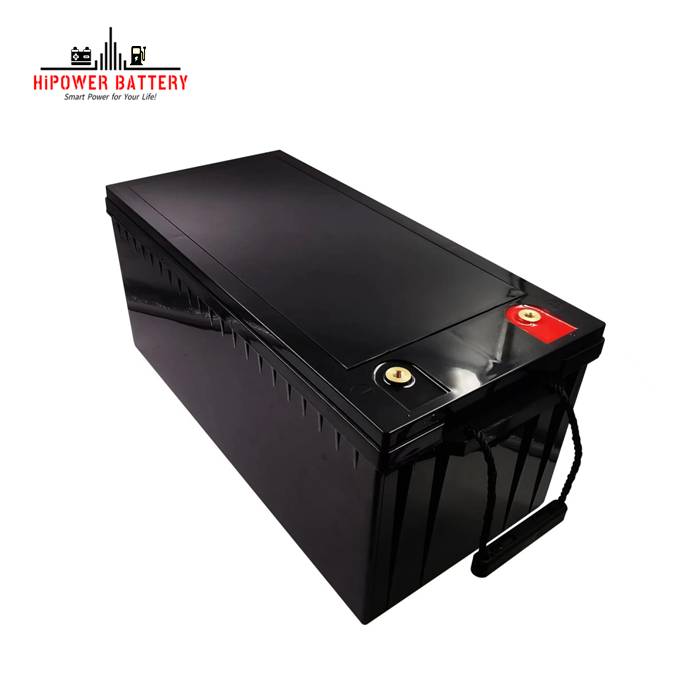

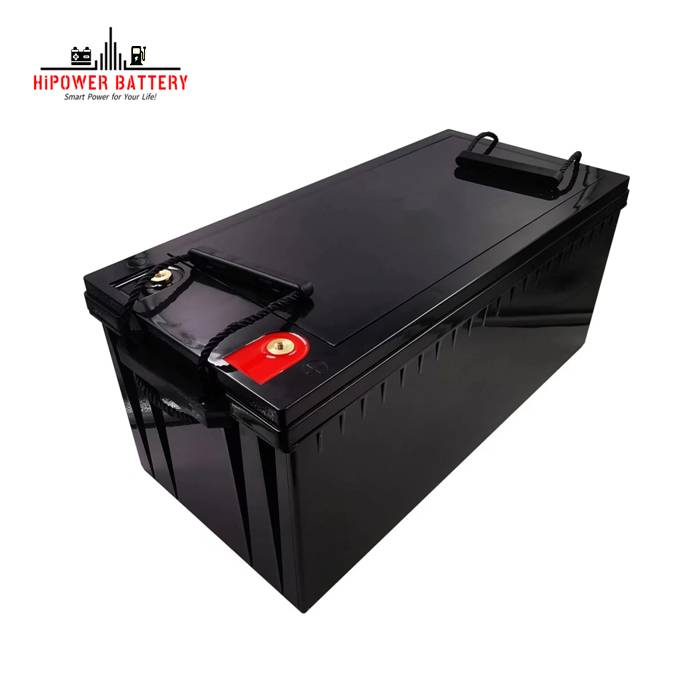

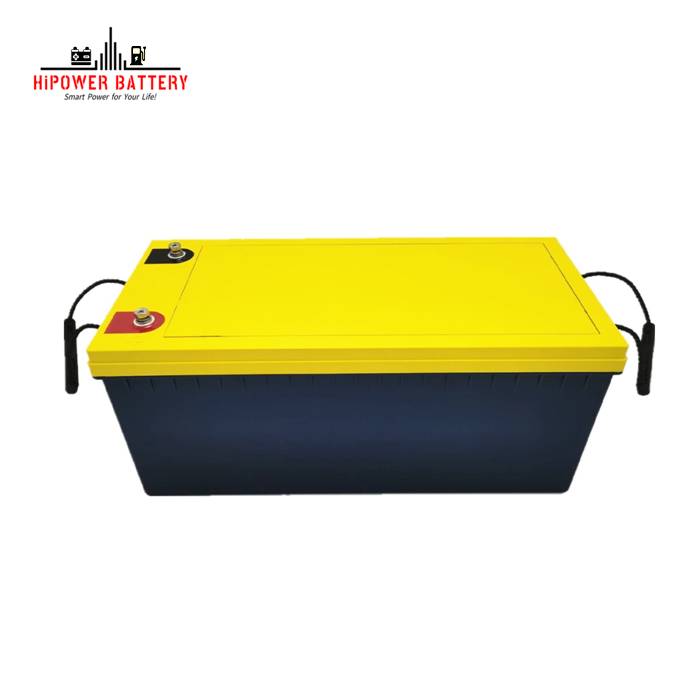

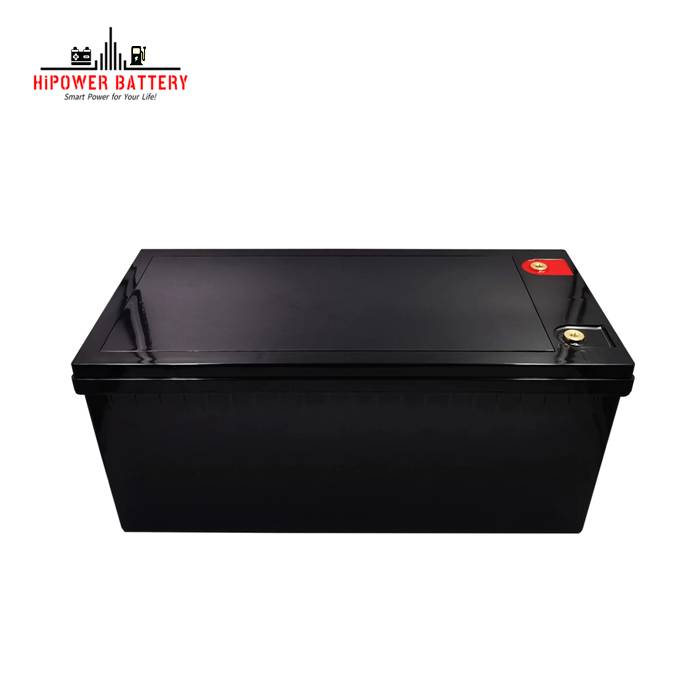

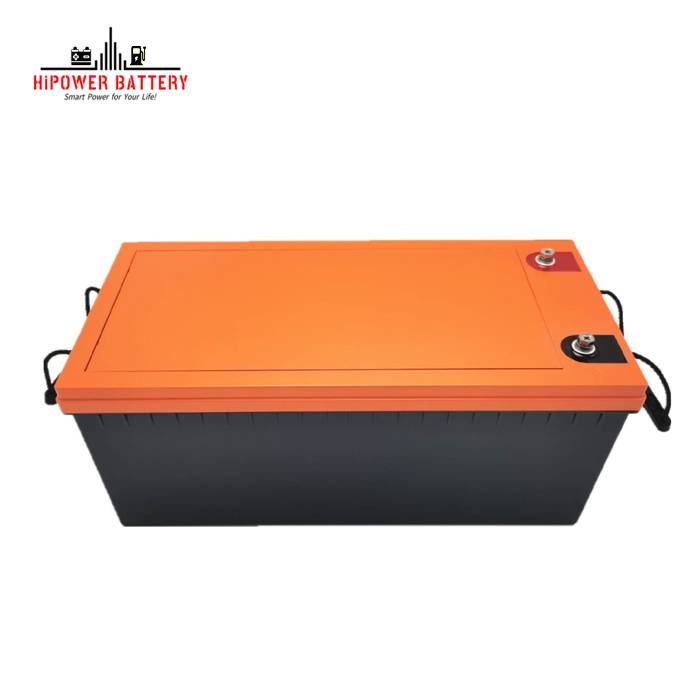

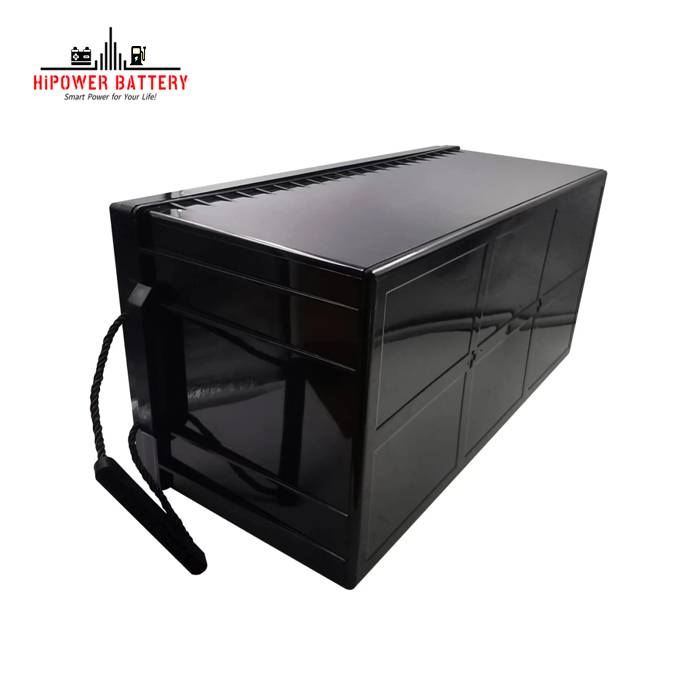

Lifepo4 12V 250Ah lithium battery for solar energy street light RV Marine

  • Nominal Voltage: 12.8V
  • Nominal Capacity: 250Ah 3200Wh
  • Size: 520x269x220mm (20.47''x10.59''x8.66'')
  • Cycle Life: > 5000 cycles
  • Product description: Lifepo4 12V 250Ah lithium battery pack perfectly for lead acid battery replacement with Bluetooth and smart BMS buit-in more than 5000 cycles of charge and discharge super long service life high safet
  • INQUIRY

Specifications:


Model

LiFePO4 Battery 12V 250Ah

Nominal Voltage

12.8V

Nominal Capacity

250Ah

Energy

3200Wh

Cycle Life

>5000 cycles

Months Self Discharge

<3%

Efficiency of Charge

100% @0.5C

Efficiency of Discharge

96~99% @0.5C

BMS Functions

Over charge, over discharge, over current, short circuit and temperature protection

Charge Voltage

14.4±0.2V

Charge Mode

0.2C to 14.6V, then 14.6V,charge current to 0.02C (CC/CV)

Charge Current

30A

Max. Charge Current

100A

Max Continuous Discharge Current

200A

Peak Discharge Current

500A  1-3S

Discharge Cut-off Voltage

10V±0.5V

Charge Temperature

0 to 55 (32F to 131F) @60±25% Relative Humidity

Discharge Temperature

-20 to 60 (-4F to 140F) @60±25% Relative Humidity

Storage Temperature

-20 to 45 (-4F to 113F) @60±25% Relative Humidity

IP Class

IP65

Housing

ABS Plastic Case

Approx. Dimensions

520x269x220mm (20.47''x10.59''x8.66'')

Approx. Weight

27kgs (59.52lbs)

HiPOWER Lifepo4 Batteries for Lead Acid Replacement

Applications:

* Solar/Wind Energy Storage Applications

* Back-up Power for UPS/ EPS

* RV, Caravan, Motor home

* Marine/ Yacht/ Fishing Boats

* Telecommunication/ Data Center Base

* DC Power Supply

* Auto Control System

* Power Tools

* Electric Toys

HiPOWER Battery Application Scenarios


HiPOWER Battery Certificates

HiPOWER Factory Production Lines

HiPOWER Battery Packing and Shipping Methods
