  • Lifepo4 24V 200Ah lithium battery for solar energy led light RV Marine
  • Lifepo4 24V 200Ah lithium battery for solar energy led light RV Marine
  • Lifepo4 24V 200Ah lithium battery for solar energy led light RV Marine
  • Lifepo4 24V 200Ah lithium battery for solar energy led light RV Marine
  • Lifepo4 24V 200Ah lithium battery for solar energy led light RV Marine
  • Lifepo4 24V 200Ah lithium battery for solar energy led light RV Marine
Lifepo4 24V 200Ah lithium battery for solar energy led light RV MarineLifepo4 24V 200Ah lithium battery for solar energy led light RV MarineLifepo4 24V 200Ah lithium battery for solar energy led light RV MarineLifepo4 24V 200Ah lithium battery for solar energy led light RV MarineLifepo4 24V 200Ah lithium battery for solar energy led light RV MarineLifepo4 24V 200Ah lithium battery for solar energy led light RV Marine

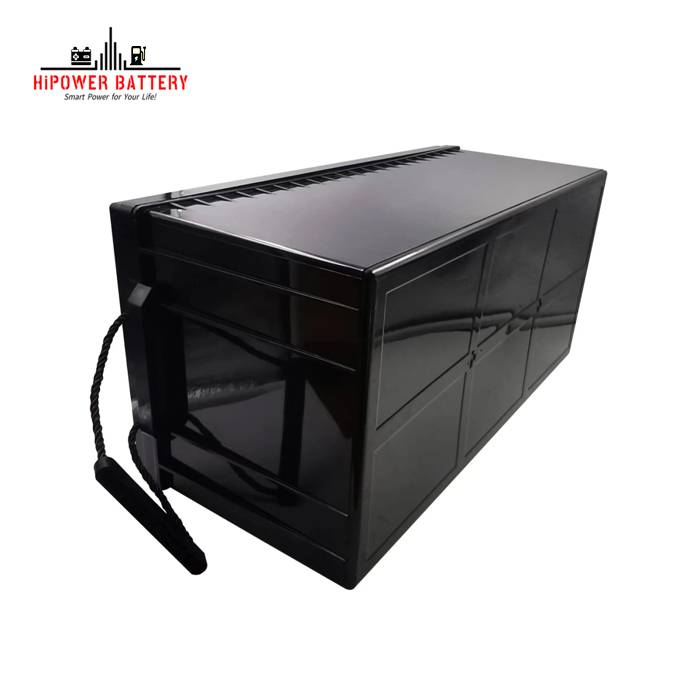

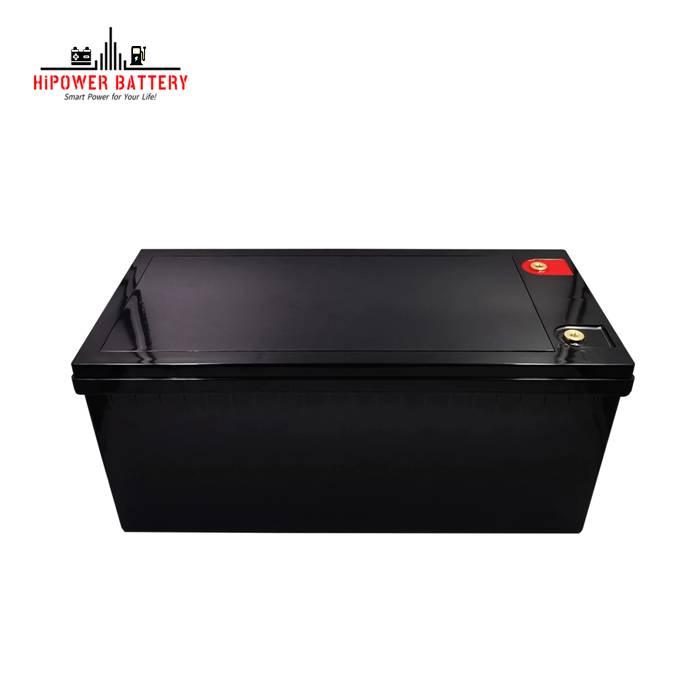

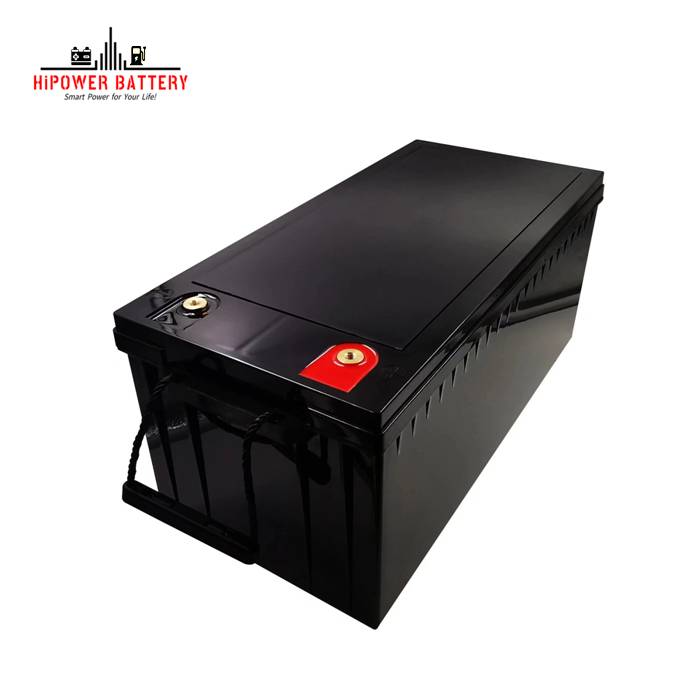

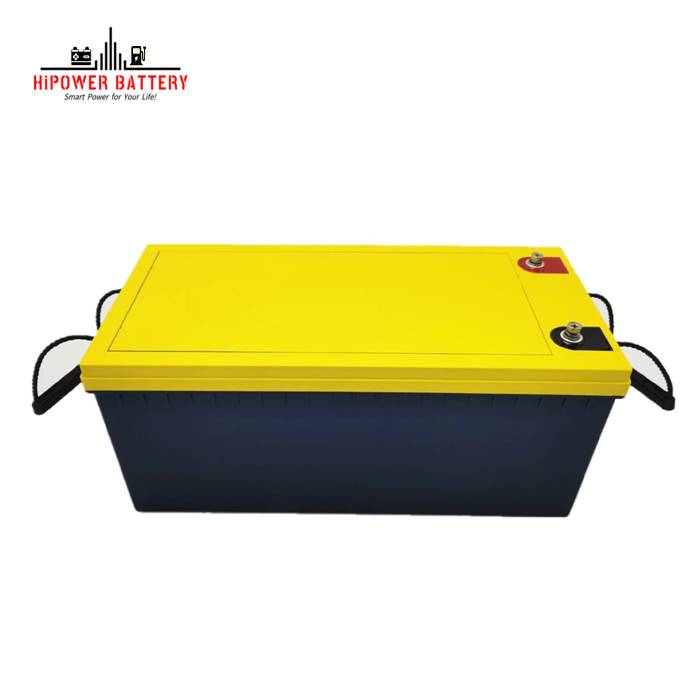

Lifepo4 24V 200Ah lithium battery for solar energy led light RV Marine

  • Nominal Voltage: 25.6V
  • Nominal Capacity: 200Ah 5120Wh
  • Size: 520x269x220mm (20.47''x10.59''x8.66'')
  • Cycle Life: > 5000 cycles
  • Product description: Deep Cycle Lifepo4 25.6V 200Ah lithium battery pack perfectly for agm lead acid battery replacement with smart BMS buit-in super long service life highly safe and eco-friendly.
  • INQUIRY

Specifications:


Model

LiFePO4 Battery 24V 200AH

Nominal Voltage

25.6V

Nominal Capacity

200Ah

Energy

5120Wh

Cycle Life

>5000 cycles

Months Self Discharge

<3%

Efficiency of Charge

100% @0.5C

Efficiency of Discharge

96~99% @0.5C

BMS Functions

Over charge, over discharge, over current, short circuit and temperature protection

Charge Voltage

28.4V - 29.2V

Charge Mode

0.2C to 29.2V, then 29.2V,charge current to 0.02C (CC/CV)

Charge Current

50A

Max. Charge Current

100A

Max Continuous Discharge Current

200A

Peak Discharge Current

500A  1-3S

Discharge Cut-off Voltage

20V±0.5V

Charge Temperature

0 to 55 (32F to 131F) @60±25% Relative Humidity

Discharge Temperature

-20 to 60 (-4F to 140F) @60±25% Relative Humidity

Storage Temperature

-20 to 45 (-4F to 113F) @60±25% Relative Humidity

IP Class

IP65

Housing

ABS Plastic Case

Approx. Dimensions

520x269x220mm (20.47''x10.59''x8.66'')

Approx. Weight

40kgs (88.18lbs)

HiPOWER Lifepo4 Batteries for Lead Acid Replacement

Applications:

* Solar/Wind Energy Storage Applications

* Back-up Power for UPS/ EPS

* RV, Caravan, Motor home

* Marine/ Yacht/ Fishing Boats

* Telecommunication/ Data Center Base

* DC Power Supply

* Auto Control System

* Power Tools

* Electric Toys

HiPOWER Battery Application Scenarios


HiPOWER Battery Certificates

HiPOWER Factory Production Lines

HiPOWER Battery Packing and Shipping Methods
