Lithium ion battery 36V 100Ah for electric golf cart with 5 years warranty

  • Nominal Voltage: 36.5V
  • Max. Continuous Working Current: 100A
  • Peak Current: 500A (3-5S)
  • Cycle Life: > 1500 cycles
  • Product description: * Grade A Auto Lithium Ion Cells * 1500+Cycles * 5 Years Warranty * Smart BMS with Bluetooth APP * Smaller Size & Lighter Weight * Half Cheaper Than Lifepo4 Battery
  • INQUIRY

Lithium ion battery 36V 100Ah for electric golf cart with 5 years warranty


OEM/ODM ACCEPTED!!!

WELLCOME TO SEND YOUR REQUIREMENTS TO US FOR SOLUTIONS AND QUOTE.


SPECIFICATIONS:


Lithium Ion Battery for Electric Golf Cart

Battery Model Li-Ion 36V 100Ah Li-Ion 48V 100Ah
ELECTRICAL SPECIFICATIONS
Nominal Voltage 36.5V 51.1V
Nominal Capacity 100 Ah 100 Ah
Capacity @ 20A 300 min 300 min
Cell Type - Chemistry lithium ion (Auto Grade) lithium ion (Auto Grade)
Resistance ≤20 mΩ @ 50% SOC ≤20 mΩ @ 50% SOC
Efficiency 99% 99%
Self Discharge <3% per Month <3% per Month
Cycle Life 1500 times DOD80% (0.5C) 1500 times DOD80% (0.5C)
Maximum Modules in Series 1(Single use) 1(Single use)
DISCHARGE SPECIFICATIONS
Maximum Continuous Discharge Current 100 A 100 A
Peak Discharge Current 500A(3-5S) 500A(3-5S)
BMS Discharge Current Cut-Off 500A(3-5S) 500A(3-5S)
Recommended Low Voltage Disconnect 30 V 42 V
BMS Discharge Voltage Cut-Off 28V (2.8 ±0.1 v) (2 s) 39.2V (2.8 ±0.1 v) (2 s)
Reconnect Voltage 30 V (3.0 ±0.1 v) 42 V (3.0 ±0.1 v)
Short Circuit Protection 200-600 µs 200-600 µs
CHARGE SPECIFICATIONS
Recommended Charge Current 20 A 20 A
Maximum Charge Current 100 A 100 A
Recommended Charge Voltage 42V 58.4 V – 58.8 V
BMS Charge Voltage Cut-Off 42 V (4.2 ±0.025 v) (2 s) 58.8 V (4.2 ±0.025 v) (2 s)
Reconnect Voltage 40 V (4.0 ±0.05 v) 56.0 V (4.0 ±0.05 v)
Balancing Voltage 41V (4.1 ±0.025 v) 57.4V (4.1 ±0.025 v)
TEMPERATURE SPECIFICATIONS
Discharge Temperature -22 to 140 °F (-30 to 60 °C) -22 to 140 °F (-30 to 60 °C)
Charge Temperature 14 to 131 °F (-10 to 55 °C) 14 to 131 °F (-10 to 55 °C)
Storage Temperature 14 to 113 °F (-10 to 45°C) 14 to 113 °F (-10 to 45°C)
BMS High Temperature Cut-Off 167 °F (75 ºC) 167 °F (75 ºC)
Reconnect Temperature 149°F (65 ºC) 149°F (65 ºC)
MECHANICAL SPECIFICATIONS
Case Material SPCC Metal Case SPCC Metal Case
Enclosure Protection IP54 IP54
Weight (Approx.) 55.1 lbs (25.0 kg) 72.7 lbs (33.0 kg)
Application Golf Cart, Caravan, Touring Car, Electric Tricycle, Marine, Trolling Motor, ect.


Lifepo4 Lithium Batteries for Golf Cart/ Tour Cart/ Maine:

Battery Model

LiFePO4

24V 100Ah

LiFePO4

24V 200Ah

LiFePO4

36V 50Ah

LiFePO4

36V 100Ah

LiFePO4

48V 50Ah

LiFePO4

48V 100Ah

Nominal Voltage 25.6V 25.6V
38.4V 38.4V
51.2V
51.2V
Nominal Capacity
100Ah 200Ah
50Ah
100Ah
50Ah
100Ah
Energy in kWh
2.56kWh
5.12kWh
1.92kWh
3.84kWh
2.56kWh
5.12kWh
Charge Voltage
28.4V-29.2V
28.4V-29.2V
42.6-43.8V
42.6-43.8V
56.8V-58.4V
56.8V-58.4V
Recommend Charge Current
20A
30A 8A 20A 8A 20A
Max. Charge Current
50A 100A 50A 50A
50A
50A
Max Cont. Discharge Current
100A 200A 50A 100A 50A 100A
Peak Discharge Current
250A (10s)
450A (10s)
150A (10s)
250A (10s)
150A (10s)
250A (10s)
Discharge Cut-off Voltage
20V 20V 30V 30V 40V 40V

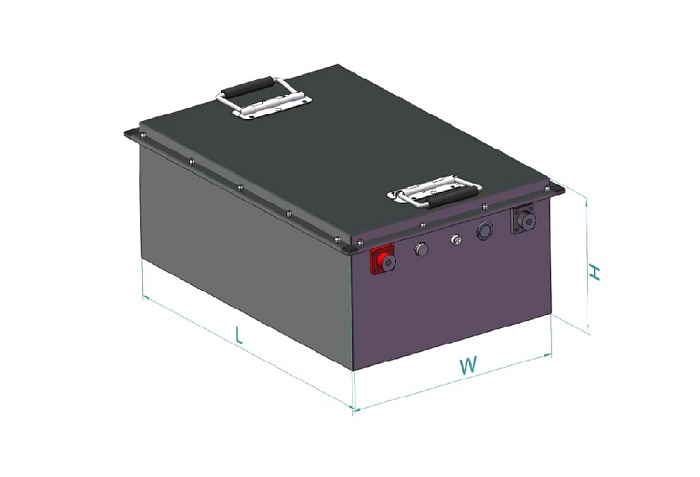

Approx. Dimensions
522*240*218mm
520*269*220mm
522*240*218mm
520*269*220mm
522*240*218mm
520*269*220mm
Approx. Weight
22kgs
40kgs
18kgs
32kgs
22kgs
40kgs
Serial Connection
Max. 2pcs
Max. 2pcs
No No
No
No
Parallel Connection
Max. 4pcs
Max. 4pcs
Max. 4pcs
Max. 4pcs
Max. 4pcs
Max. 4pcs


Main Parameters
Cycle Life 3000 - 6000 cycles
Design Service Life > 10 years
Months Self Discharge <3%
Efficiency of Charge 100% @0.5C
Efficiency of Discharge 96~99% @0.5C
BMS Functions Over charge, over discharge, over current, short circuit and temperature protection
Charge Temperature 0℃to 55℃(32F to 131F) @60±25% Relative Humidity
Discharge Temperature -20 ℃ to 60 ℃ (-4F to 140F) @60±25% Relative Humidity
Storage Temperature -20 ℃ to 45 ℃ (-4F to 113F) @60±25% Relative Humidity
IP Class IP66
Monitor APP iOS and Android Apps (App Stores / Google Play), Optional
OEM/ODM Service Support



Applications:

- RV, Caravan, Camper, Golf Cart

- Trolling Motors

- Fishing Boat, Houseboat & other Marine Applications

- Mobile Power Supply

- Solar PV System, Household Energy Storage System, Backup Power Supply, UPS, EPS, ect.

- Lead Acid Battery Replacement

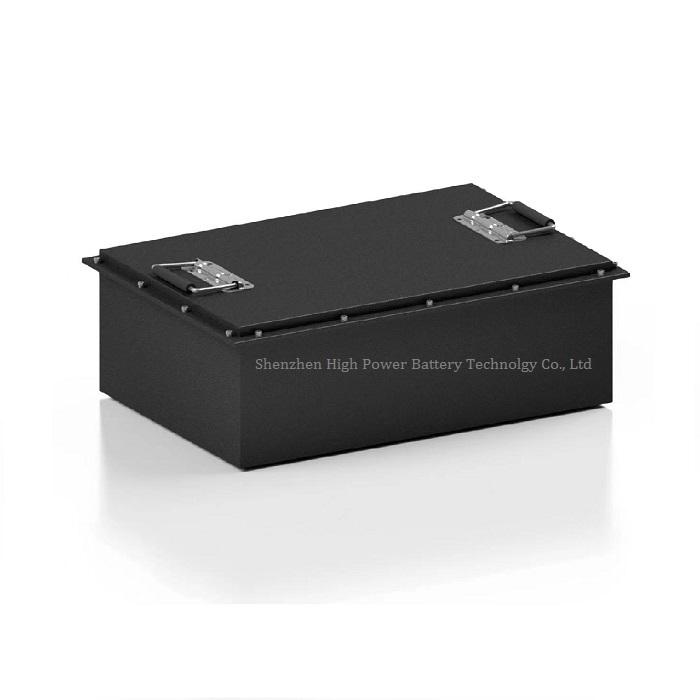

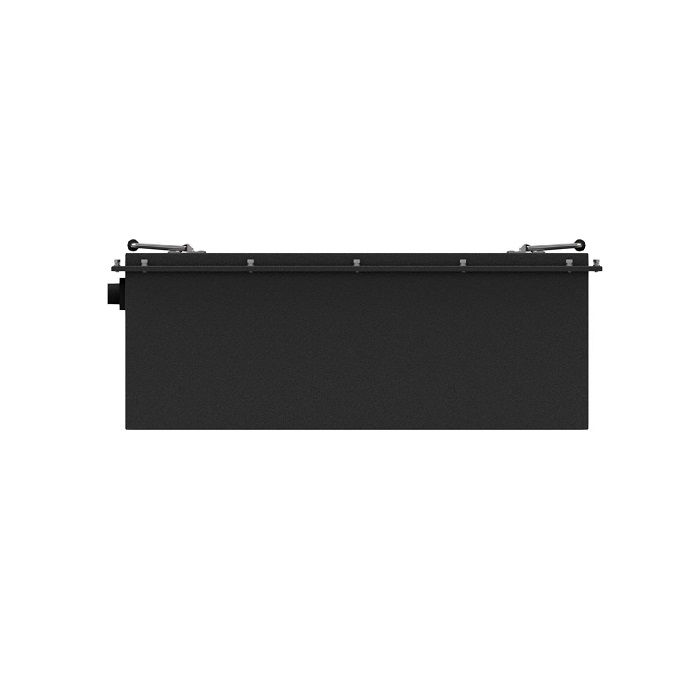

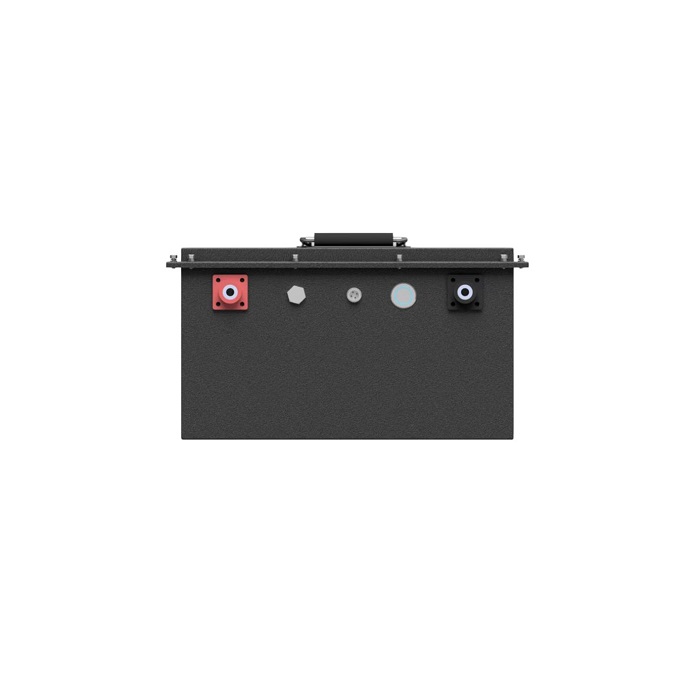

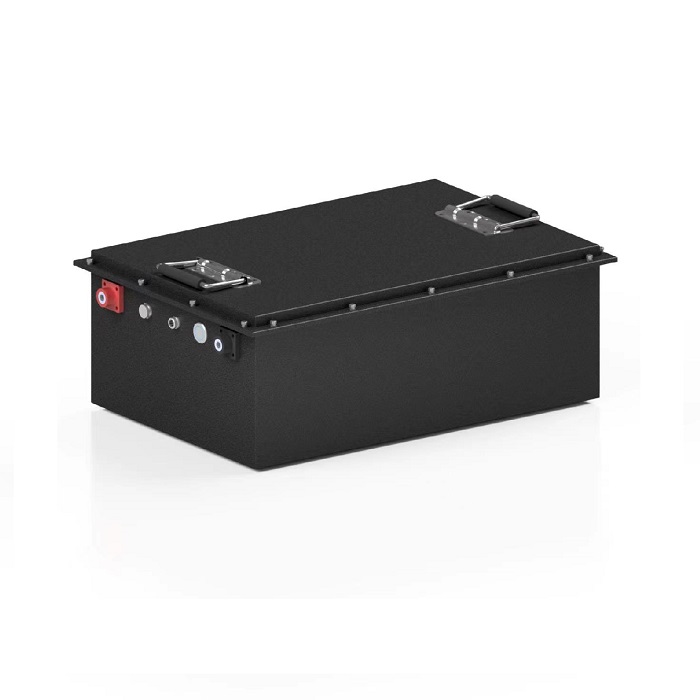

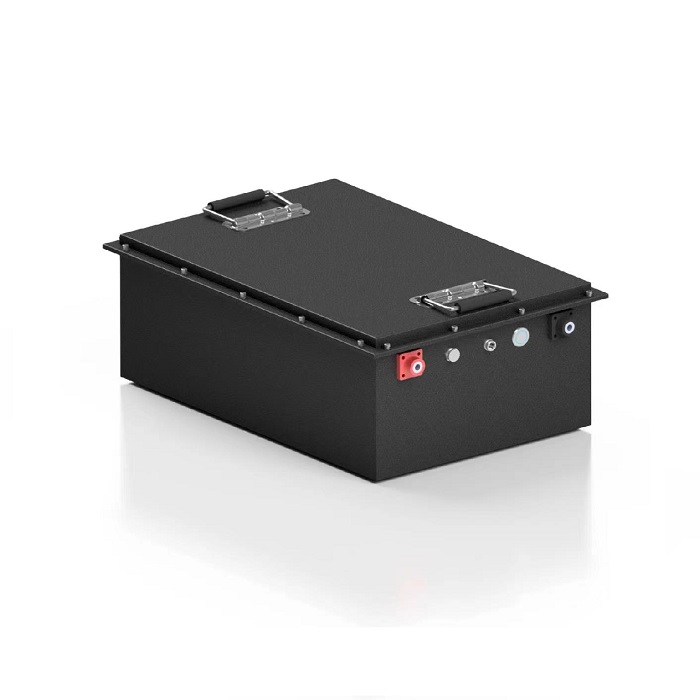

Product Pictures:
