Specification:
Li-ion 48V 30AH |
|
Configuration |
13S12P |
Nominal Voltage |
48V |
Nominal Capacity |
30Ah |
Energy |
1440W |
Continuous Working Current |
30Amp |
Max Working Current |
90Amp |
Charging Voltage | 54.6V |
Charging Current |
5 - 15Amp |
Battery cell |
Grade A Li-ion Power Cells |
BMS Functions |
Over charge, over discharge, over current, short circuit and temperature protection |
Weight (Approx.) |
9.0KG approx.. |
Connector & Cable |
Customized |
Charge Method |
CC/CV |
Operating Temperature |
0℃~45℃ (charge) |
-20℃~60℃ (discharge) |
|
-20℃~45℃ (storage) |
|

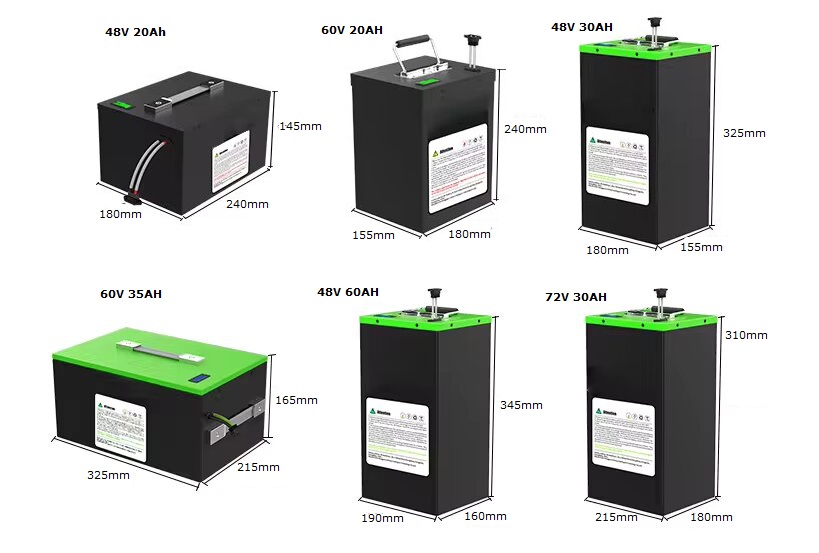

Dimensions |
180x155x325mm or Customized |
Housing |
Metal Case, or Customized |
Fit Motor Power |
< 1500W |
Applications : Electric Scooter, Bicycle, Motorbike, Motorcycle, Tricycle, E-rickshaw, E-mobility, Golf Cart, VAN, and other low speed electric vehicles, etc.
Fetures:
1) Environmental friendly
2) High density of energy
3) Light weight
4) Low self-discharge
5) Low internal resistance
6) Long cycle life, chargeable up to 1000 times
7) No memory effect
8) Doesn’t contain Mercury, No fire, No explosion, No leakage
