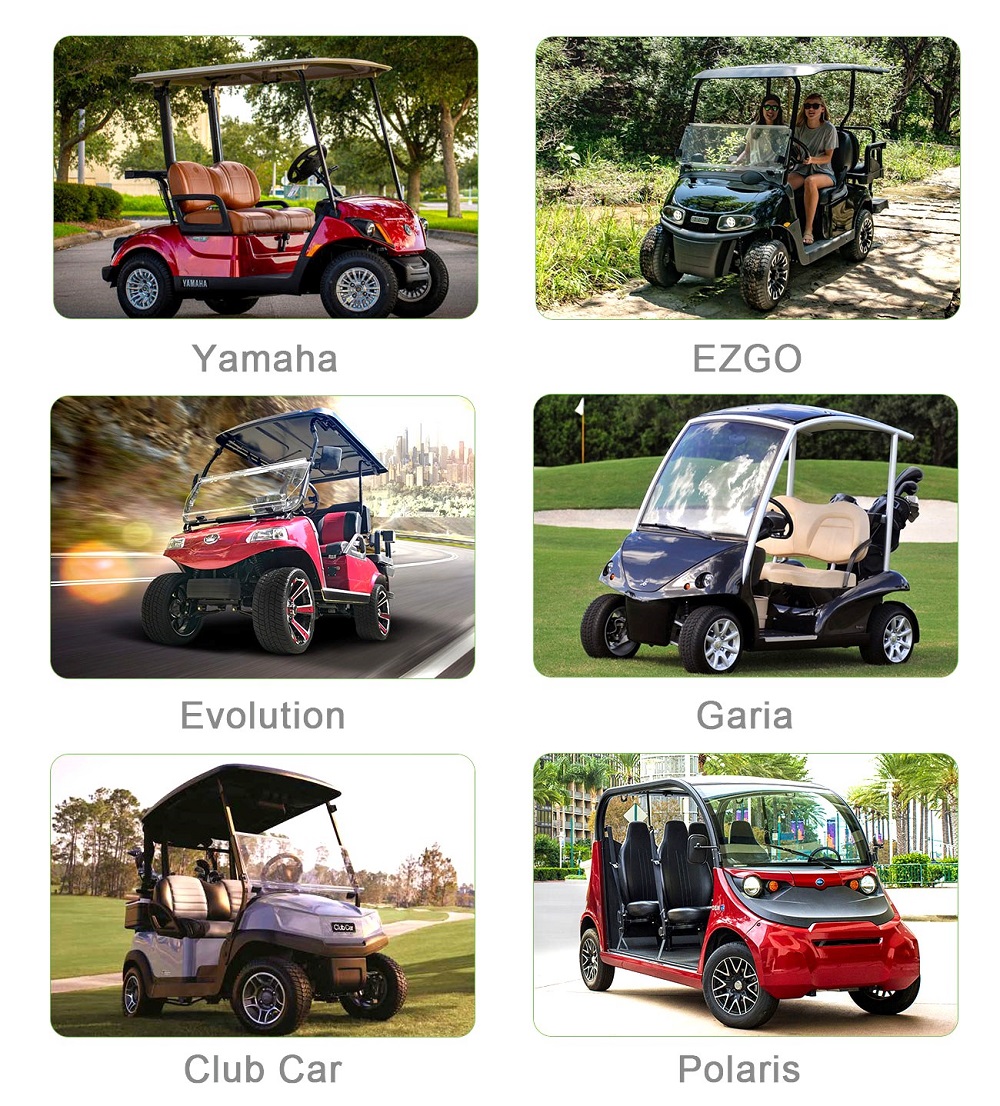

HiPOWER Golf Cart Batteries can be compatible with these golf cart brands: Advanced EV, Bad Boy Buggy, Bintelli, Club Car DS, Club Car Precedent, Coleman, EZGO TXT, EZGO RXV, Elite, Evolution, EPIC, GEM Cars, ICON, Kandi, Madjax X-series, Navitas Storm, Nivel X-series, Titan, Tomberlin, Trojan EV, Vivid, Yamaha, and other carts and electric EV vehicles.
WE SUPPORT OEM/ODM SERVICE:
* Customize Your Battery Size/ Color/ Logo, etc.
* Customize Your Battery Voltage, Capacity, Working Current
* Customize Your Battery Connector/ Charger
* Customize Your Bluetooth APP
Specifications:

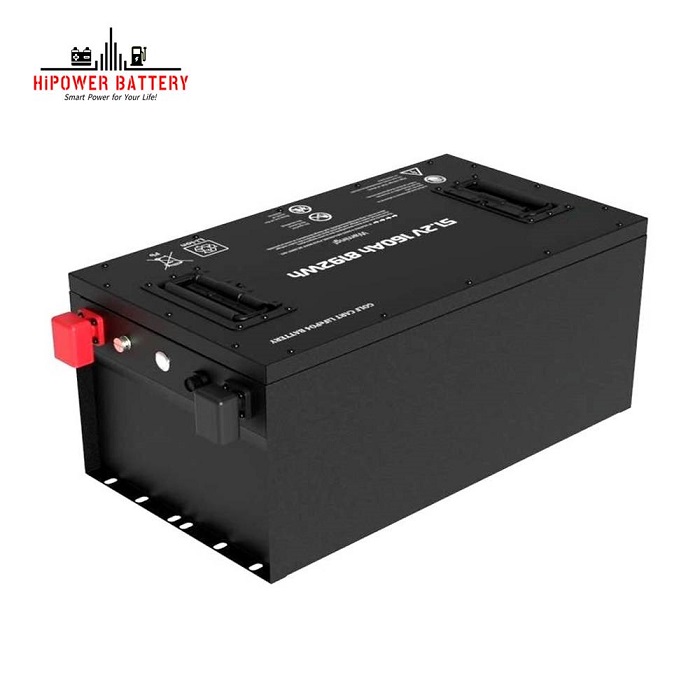

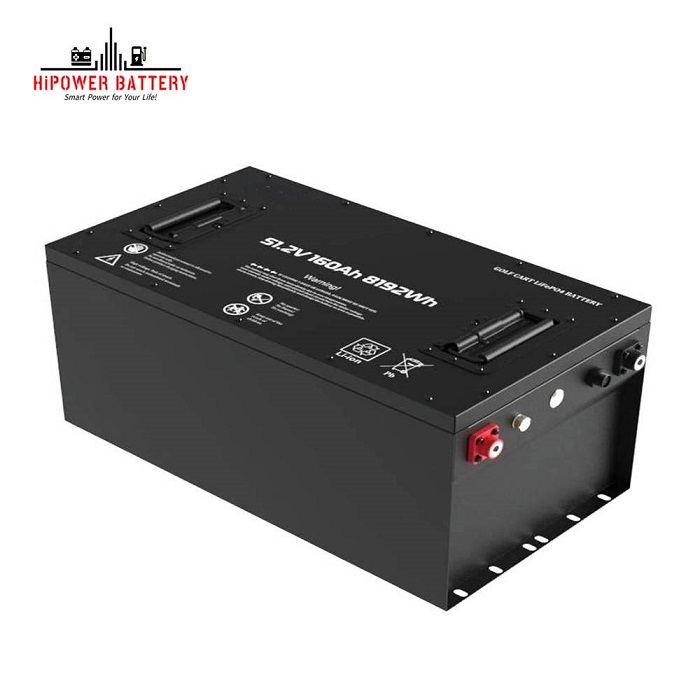

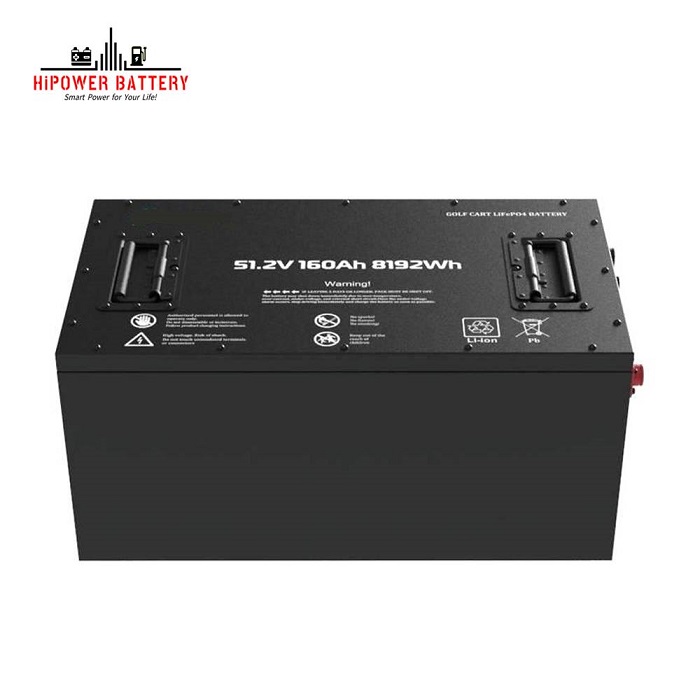

Model: LiFePO4 48V 160Ah
Configuration: 16S1P
Cell Type: Grade A Prismatic Cells (EV Grade)
Cell Chemistry: Lithium Iron Phosphate (LiFePO4)
Nominal Voltage: 51.2V
Nominal Capacity: 160Ah
Energy: 8.192KWH
Capacity @50A: 192Min
Charge Voltage: 56.8V - 58.4V
BMS Balancing Voltage: 54.4V
Charge Current: 80A Max.
Working Voltage: 43.2V - 58.4V
Max. Continous Working Current: 200A or Customized
Peak Working Current: 500A (<10S)
Series Connection: No
Parallel Connection: Yes, 2PCS Max.
Bluetooth: Yes
Communication: CAN/ RS485/ RS232 (Optional)
Charger: Optional
Cycle Life: 5000+ Cycles
IP Rating: IP67
Enclosure: Powder Coated Steel Case

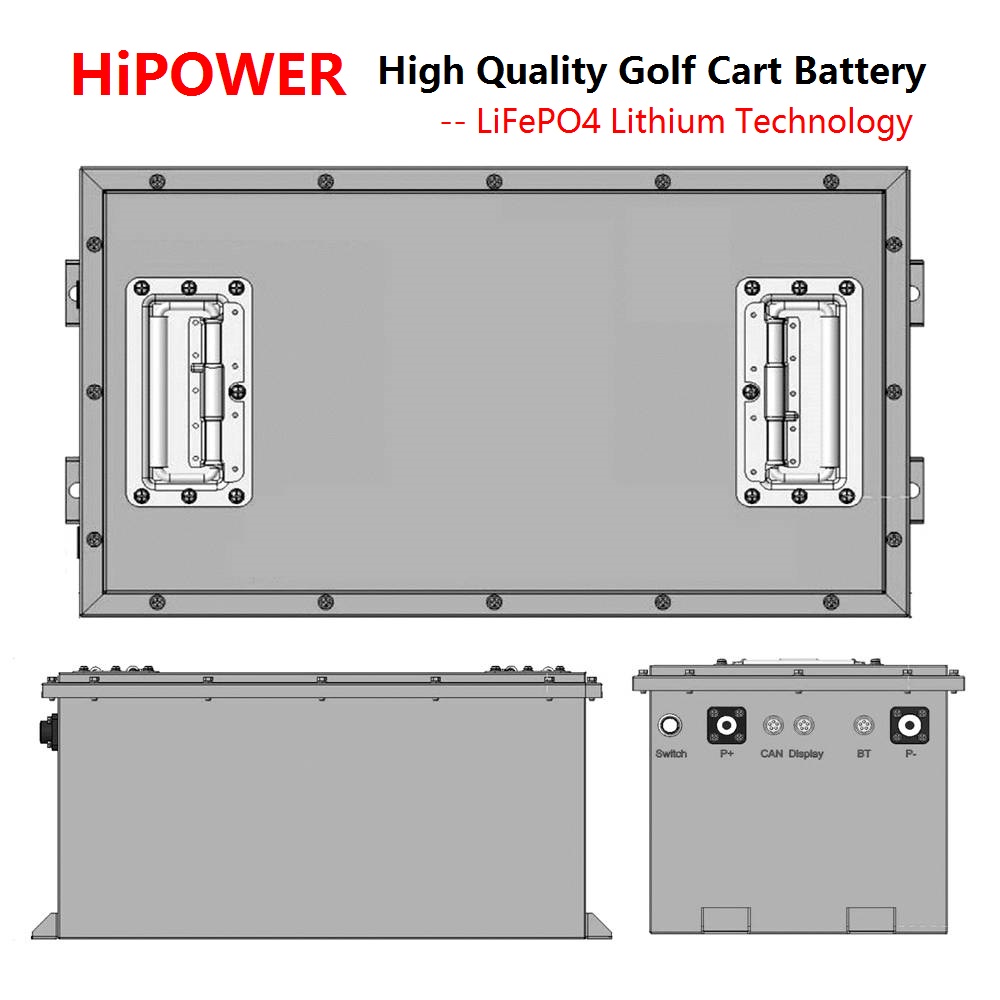

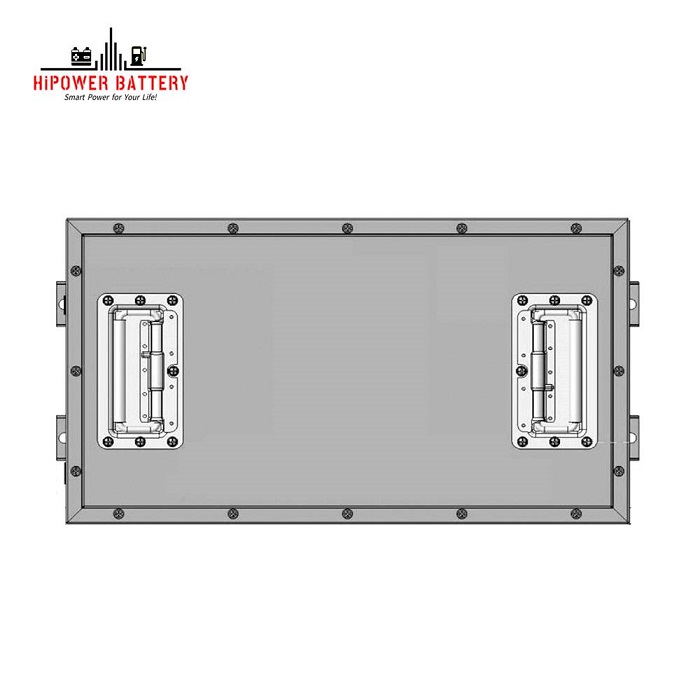

Dimensions (Approx.): 609x308x271mm or Customized
Weight (Approx.): 73kgs

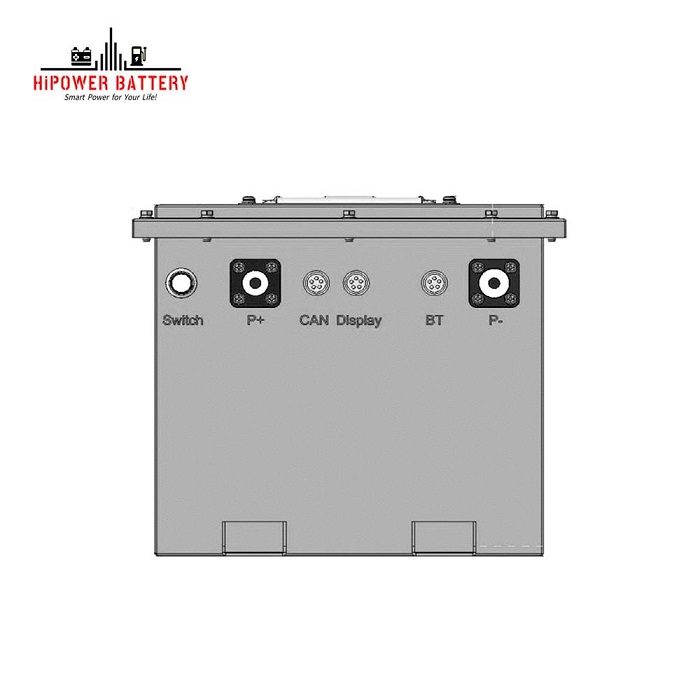

Terminal Type: M8, or Anderson, or Customized
Self Discharge: < 3% per Month
Temperature Range:
Charge Temperature: 0℃~ 55℃ (32F ~ 131F)
Discharge Temperatures: -20℃~ 60℃ (-4F ~ 140F)
Storage Temperatures: -10 ℃ to 35 ℃ (14F to 95F)
BMS (Battery Management System) Protections:
- Over-Charge Protection
- Over-Discharge Protection
- Over-Voltage Protection
- Over-Current Protection
- Short Circuit Protection
- Low Temperature Protection
- High Temperature Protecion
- Self-Heating @ Charge Under 0℃ (Optional)
UN Shipping Class: UN38.3
Certifications:
UN38.3 (include MSDS and Shipping Cerficates)
UL (Cells) / CE / FCC / RoHS / IEC62133

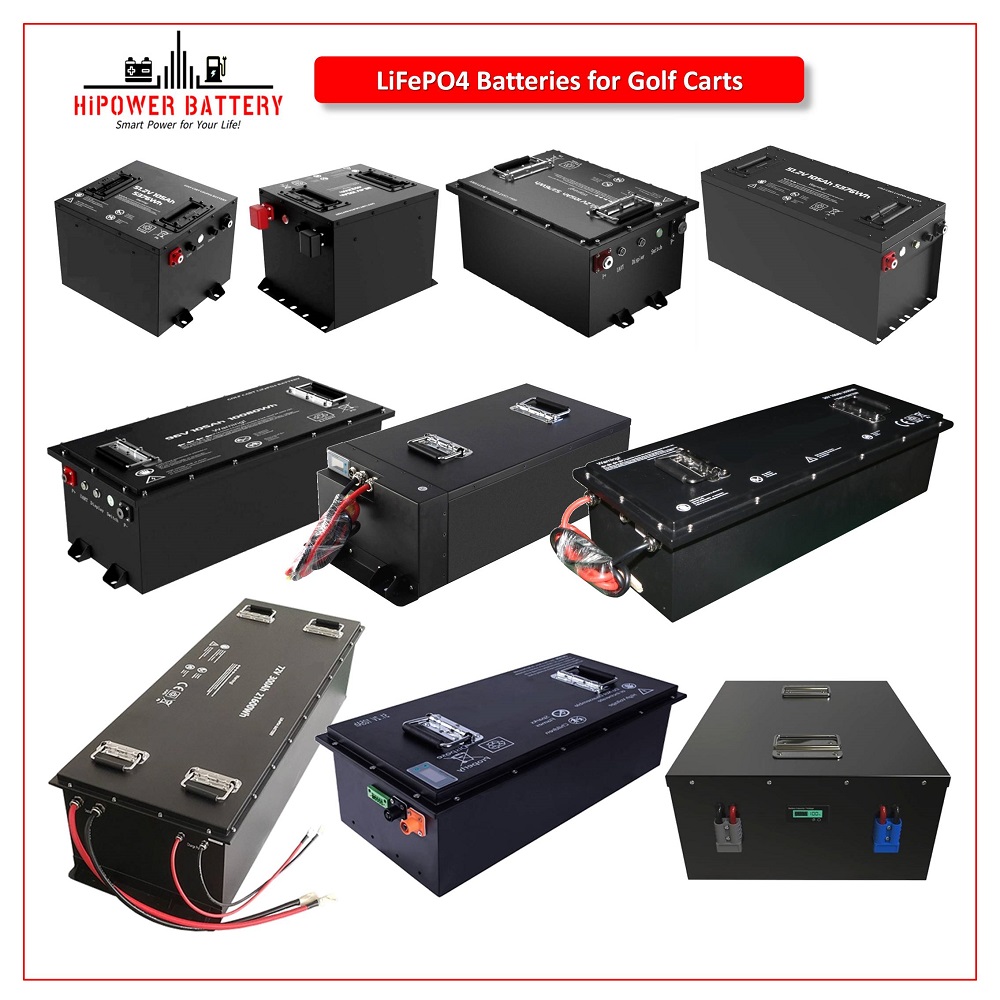

HiPOWER Hot Sales Golf Cart Batteries:
HiPOWER Lithium Golf Cart Batteries Series |
||||||||
Model |
Battery Type |
Nominal Voltage |
Nominal Capacity |
Energy |
Max. Cont. Working Current |
Peak Working Current |
Dimensions |
Weight |
HPEV3660 |
LiFePO4 |
38.4V |
60Ah |
2304Wh |
150A |
300A (<10S) |
340x259x280mm |
27kgs |
HPEV36100 |
LiFePO4 |
38.4V |
100Ah |
3840Wh |
200A |
600A (<10S) |
340x259x280mm |
34kgs |
HPEV36105 |
LiFePO4 |
38.4V |
105Ah |
4032Wh |
200A |
600A (<10S) |
340x259x280mm |
34kgs |
HPEV36160 |
LiFePO4 |
38.4V |
160Ah |
6144Wh |
200A |
600A (<10S) |
600x350x232mm |
58kgs |
HPEV36200 |
LiFePO4 |
38.4V |
200Ah |
7680Wh |
200A |
500A (<10S) |
600x350x232mm |
72kgs |
HPEV4860 |
LiFePO4 |
51.2V |
60Ah |
3072Wh |
150A |
300A (<10S) |
340x259x280mm |
35kgs |
HPEV48100 |
LiFePO4 |
51.2V |
100Ah |
5120Wh |
200A |
600A (<10S) |
560x248x271mm |
46.3kgs |
HPEV48105 |
LiFePO4 |
51.2V |
105Ah |
5376Wh |
200A |
600A (<10S) |
560x248x271mm |
46.3kgs |
HPEV48160 |
LiFePO4 |
51.2V |
160Ah |
8192Wh |
200A |
600A (<10S) |
609x308x271mm |
73kgs |
HPEV48200 |
LiFePO4 |
51.2V |
200Ah |
10240Wh |
200A |
500A (<10S) |
675x450x250mm |
115kgs |
HPEV73100 |
LiFePO4 |
73.6V |
100Ah |
7360Wh |
200A |
600A (<10S) |
560x305x264mm |
72kgs |
HPEV73105 |
LiFePO4 |
73.6V |
105Ah |
7728Wh |
200A |
600A (<10S) |
560x305x264mm |
72kgs |
HPEV73160 |
LiFePO4 |
73.6V |
160Ah |
11776Wh |
200A |
600A (<10S) |
800x339x230mm |
96kgs |
HPEV76100 |
LiFePO4 |
76.8V |
100Ah |
7680Wh |
200A |
500A (<11S) |
740x320x246mm |
75kgs |
HPEV76105 |
LiFePO4 |
76.8V |
105Ah |
8064Wh |
200A |
600A (<10S) |
740x320x246mm |
75kgs |
HPEV76160 |
LiFePO4 |
76.8V |
160Ah |
12288Wh |
200A |
600A (<10S) |
760x388x239mm |
125kgs |

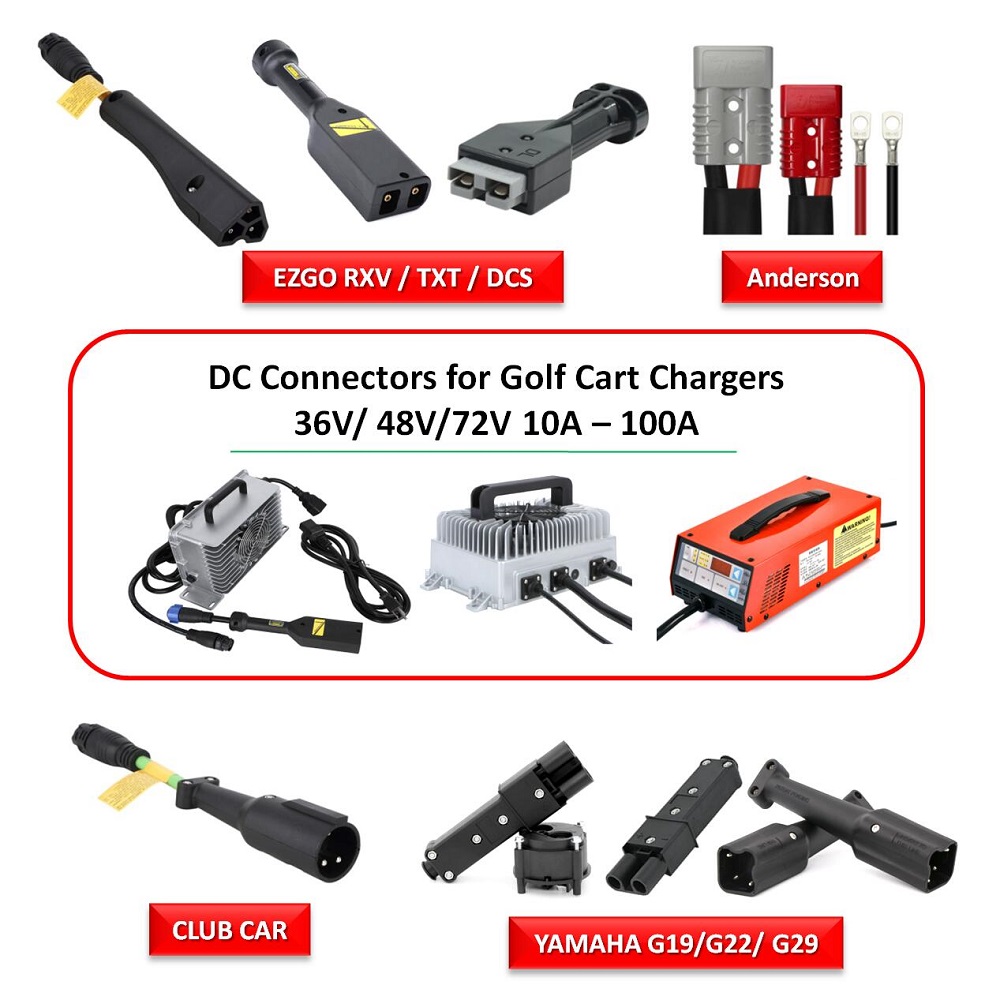

Common Golf Cart Connectors:
HiPOWER Battery Certificates:
HiPOWER Battery Application Scenarios:

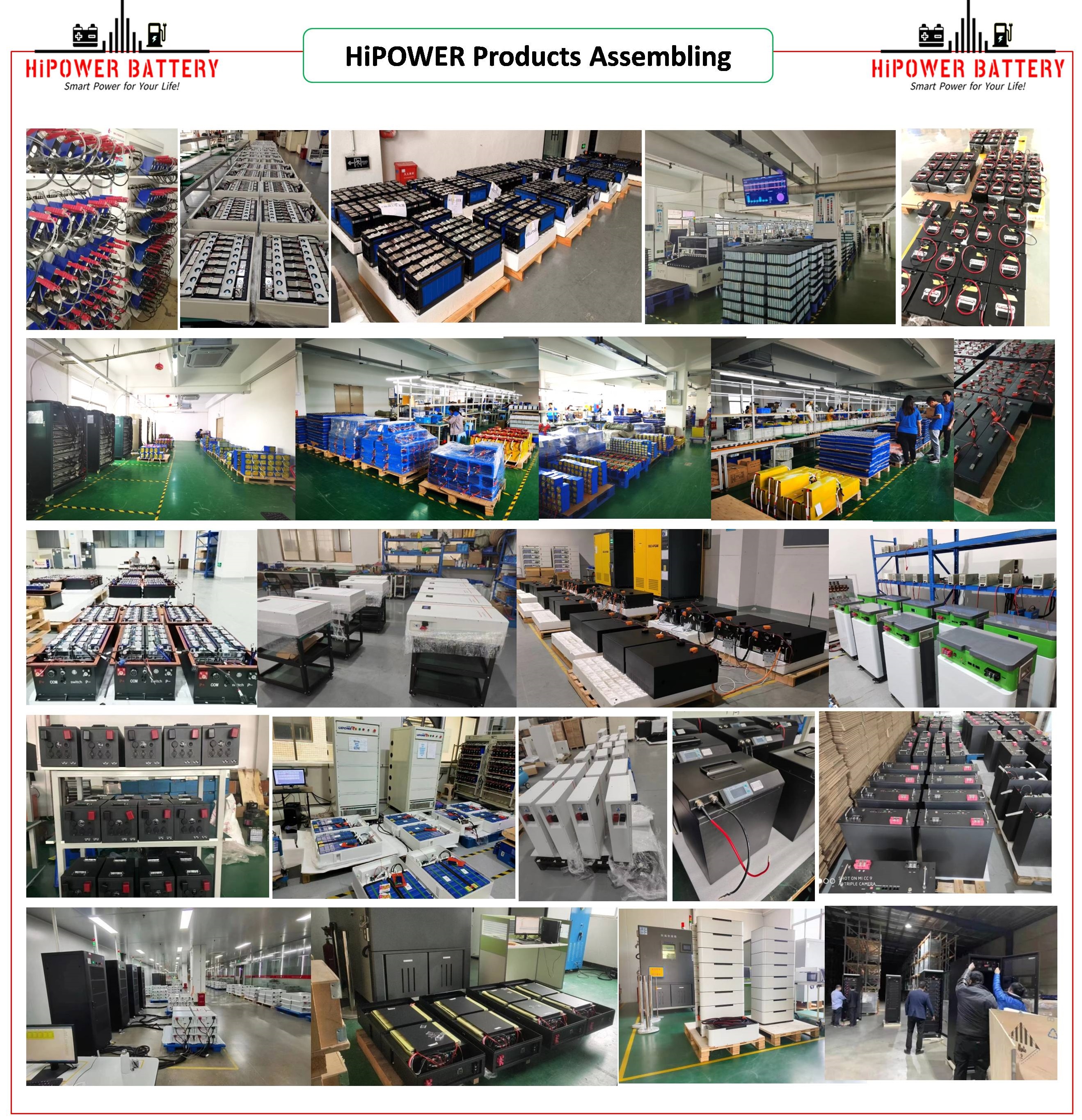

HiPOWER Battery Proction Lines:
