Hi-Power Lithium Ion Battery Pack 7S8P 18650 24V 20Ah with Built-in BMS for E-bike/ E-scooter
|
Model No. |
HP-7S8P-24V20Ah |
|
Voltage |
24V |
|
Nominal Capacity |
20Ah or customized |
|
Cell Material |
Li(NiCoMn)O2 |
|
Weight |
3.5Kg(Appr.) |
|
Outside dimension |
Customized |
|
Working discharge current |
Customized |
|
Regular charging current |
2A or 4A or Customized |
|
Assembly Mode |
7S8P |
|
Cell QTY |
56pcs 18650 battery cells |
|
Certificate |
CE, UN38.3,ROHS, MSDS,UL |
|
With BMS/PCB |
Yes,regular version or customized |
|
Over charge protection |
Yes |
|
Over discharge protection |
Yes |
|
Over current protection |
Yes |
|
Temperature protection |
Yes |
|
Pollution-free |
Yes |
|
Memory effect |
No |
|
Charge Method |
CC-CV |
|
Operation Temperature |
Charge:0-45oC |
|
Discharge:-20-60oC |
|
|
Cycle life |
>800 times |
|
Warranty |
1 Year |
2.Applications
1) Telecommunications: Cellular phone, interphone, blue tooth earphone.
2) Video Devices: MP3/MP4/MP5, digital camera, portable DVD, portable television
3) Portable Devices: GPS,PDA, E-book ,PMP, PSP, portable medical device etc.
4) Illuminate Devices: Miner lamp, search light.
5) Electric Scooter, Skateboard, E-bike

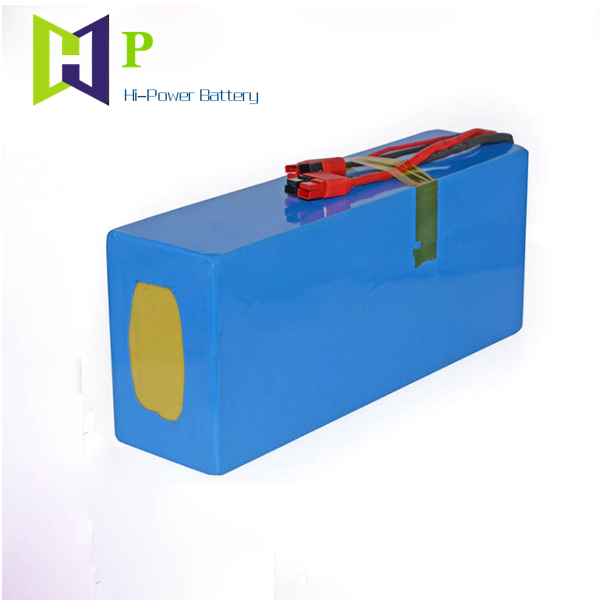

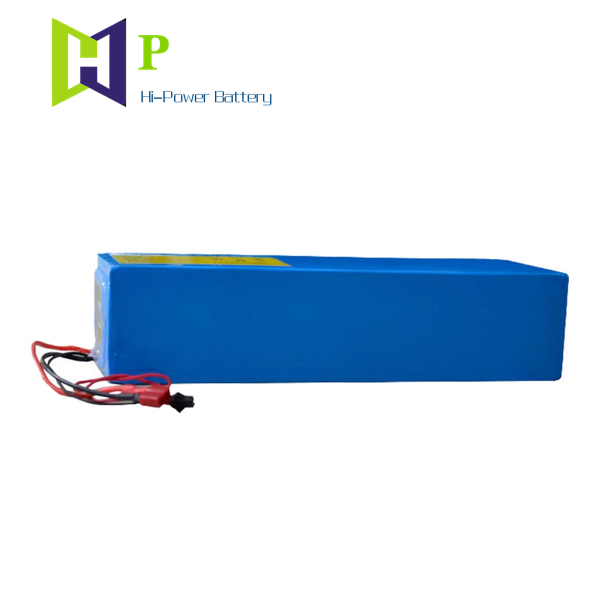

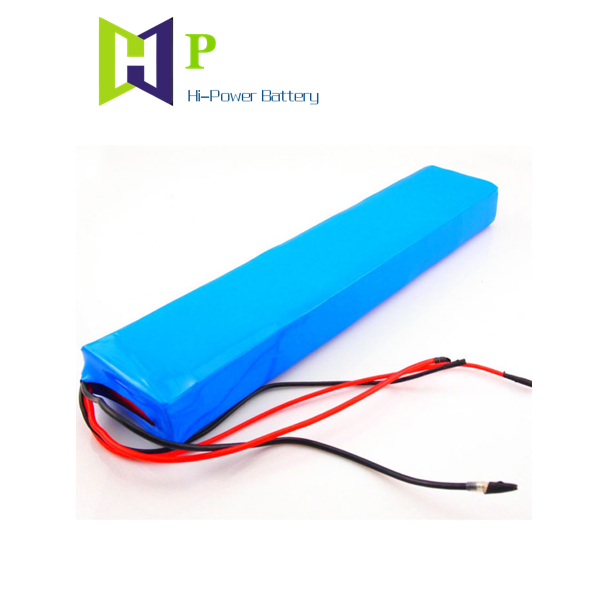

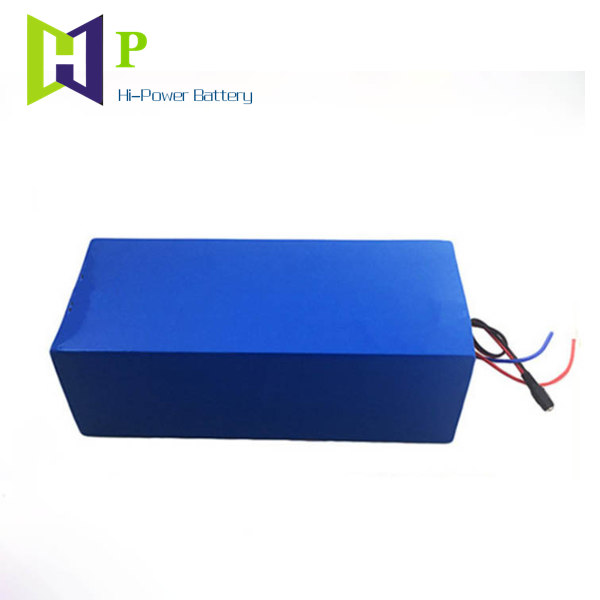

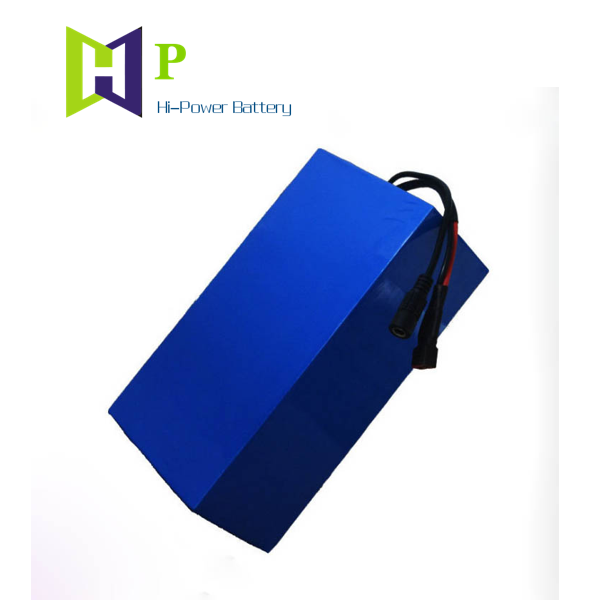

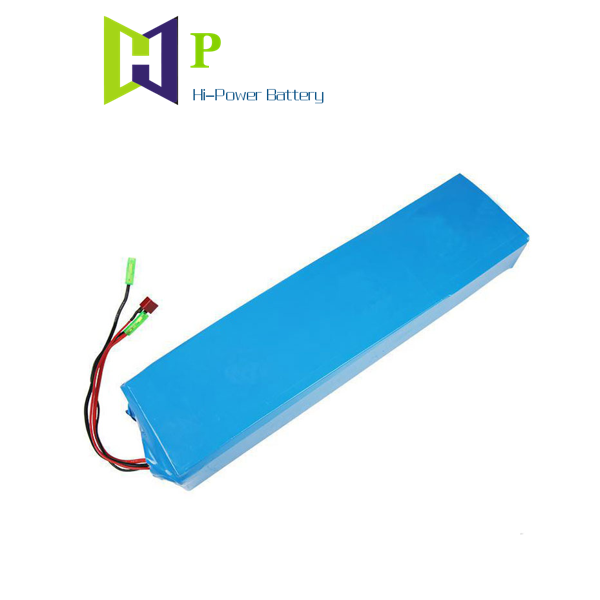

Product Pictures:
Testing Center:
Workshop:
