LiFePO4 Battery for Lead Acid Replacement

  • LiFePO4 12.8V 100AH
  • LiFePO4 12.8V 100AH
  • LiFePO4 12.8V 100AH
  • LiFePO4 12.8V 100AH
  • LiFePO4 12.8V 100AH
  • LiFePO4 12.8V 100AH
LiFePO4 12.8V 100AH LiFePO4 12.8V 100AH LiFePO4 12.8V 100AH LiFePO4 12.8V 100AH LiFePO4 12.8V 100AH LiFePO4 12.8V 100AH

LiFePO4 12.8V 100AH

  • Continuous Working Current: 100A
  • Size: L329Xw172xH214mm
  • Cycle Life: 5000cycles
  • Warranty: 5 years
  • Product description: 5000 cycles 8-10 years service life LiFePO4 12.8V 100Ah lithium battery perfect for replacing lead acid battery factory price

Deep Cycle Low Temperature  Heating LiFePO4 Lithium Battery 12V 100AH


The Low Temperature LiFePO4 Battery is specially designed with a heating film on the BMS, when the temperature is below 32°F (0°C), the heating film will be turned on under charging conditions. During the heating process, the charger only supplies power upon the heating film  and it will not charge the battery when the temperature is lower than 0°C. When heated to 50°F (10°C), the BMS stops heating and the battery starts to charge. In the process of storage and discharge, the heating film neither works nor consumes battery power.

The ultra-light Deep Cycle LiFePO4 battery can be used as a pure supply battery and can be loaded up to 200A continuously for a short time. The significantly lower weight, the long operational reliability, the long cycle life and the long service life are decisive advantages over conventional batteries of old technology.


Electrical Characteristics

Nominal Voltage


Nominal Capacity


Minimum Capacity




Cycle Life

5000 cycles

Months Self Discharge


Efficiency of Charge

100% @0.5C

Efficiency of Discharge

96~99% @0.5C

BMS Functions

Over charge, over discharge, over current, short circuit and temperature protection

Standard Charge

Charge Voltage


Charge Mode

0.2C to 14.6V, then 14.6V,charge current to 0.02C (CC/CV)

Charge Current


Max. Charge Current


Standard Discharge

Max Continuous Discharge Current


Peak Discharge Current

400A±40A 0.5-1.5S

Discharge Cut-off Voltage



Charge Temperature

0 to 55 (32F to 131F) @60±25% Relative Humidity

Discharge Temperature

-20 to 60 (-4F to 140F) @60±25% Relative Humidity

Storage Temperature

-20 to 45 (-4F to 113F) @60±25% Relative Humidity

IP Class



Plastic Case


Approx. Dimensions


Approx. Weight


Heating Element Specifications

Heating Temperature Range

-4 to 50 ºF (-20 to 10 )

Heating Time (Approximately)

1 hr @ 5 A

BMS Heating Element Cut-Off

167 ºF (75 )


1. Warranty: 5 Years

2. OEM/ODM accepted, can supply sample(s) for test

3. Factory supplied directly, accept small qty order

4. Capable with various shipping methods, by air, by sea, by train, with FOB, CIF, DDP or DDU service


Solar/Wind Energy Storage Application

     Back-up Power for UPS/ EPS

     Low Speed Electric Vehicles, i.e. RV, Caravan, Motor home

     Marine/fishing Boats

     Telecommunication

     DC Power Supply

     Auto Control System

     Power Tools

     Electric Toys

Features of Our LiFePO4 Battery:

High current resistant

Perfect replacement to lead battery

Built-in BMS

Very light weight

Fast charging

High intrinsic safety

Can be used in all positions

Wide Temperature: -20 to 60 (-4F to 140F)

Over 3000 cycles at 90% discharge

Lifespan up to 10 years

100% maintenance free

Environmentally friendly, no lead, no acid


Optional Function on Our LiFePO4 Batteries:

Bluetooth APP

We can customize the bluetooth APP with your company Logo and unique design for you.

Users can monitor the real-time status through the Bluetooth APP on the smart mobile phones.

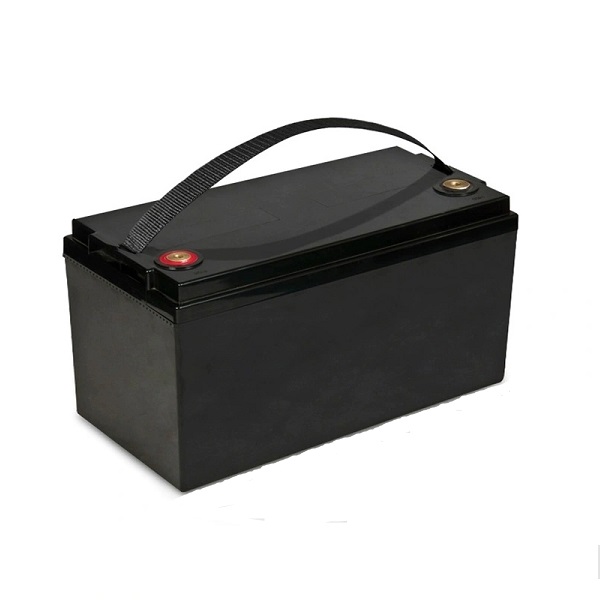

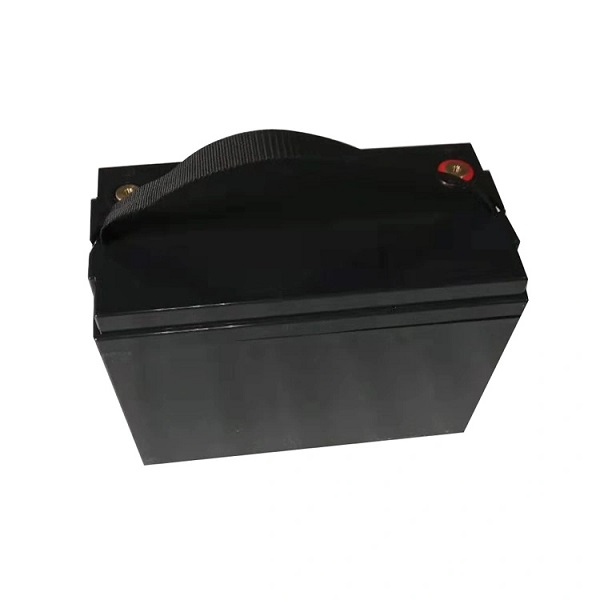

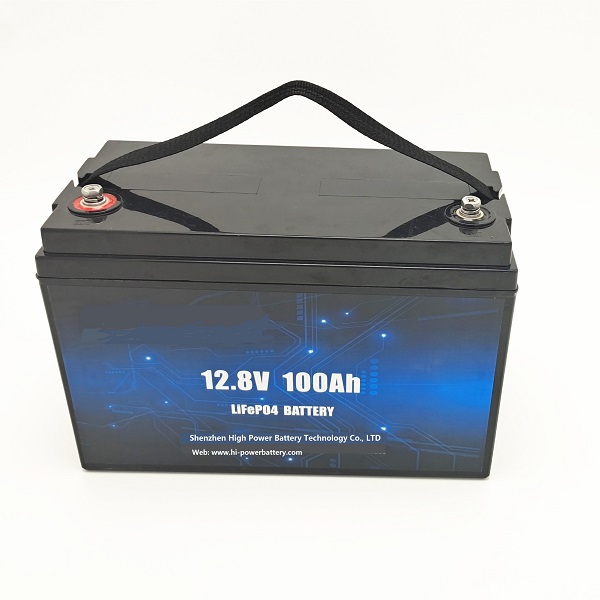

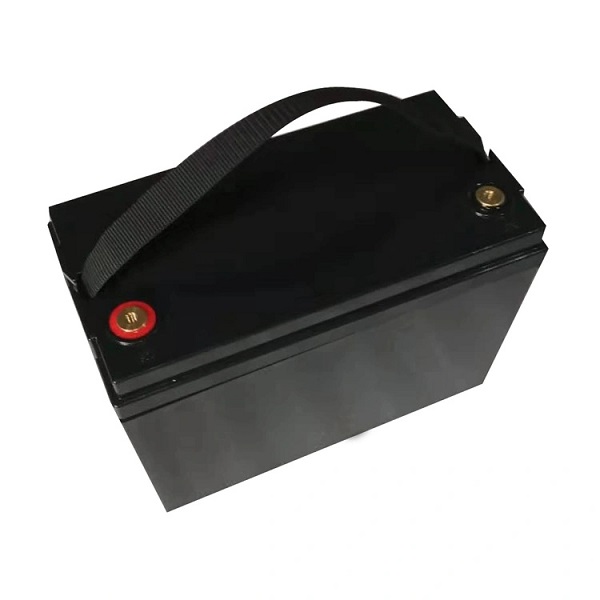

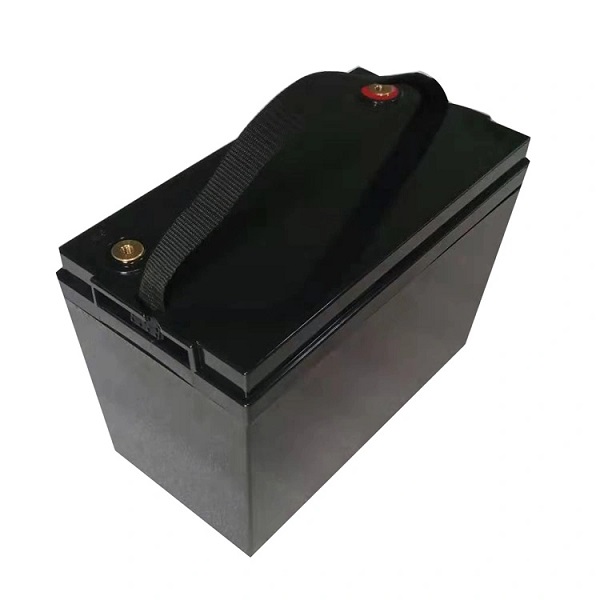

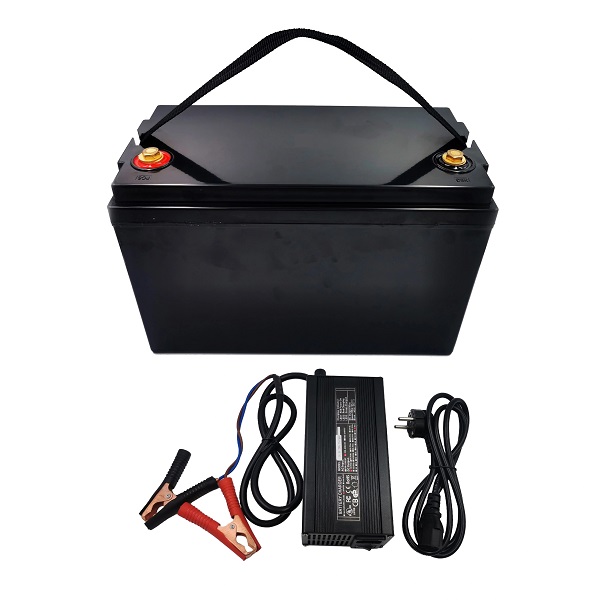

Product Pictures:
