3840Wh All In One Energy Storage System with 3KVA Inverter LiFeP04 25.6V 150Ah

  • Energy: 3840Wh
  • Max Continous working current: 150A
  • Inverter: 3KVA/ 6000VA max
  • MPPT: Built-in
  • Product description: 3840Wh All In One Energy Storage System with 3KVA Inverter LiFeP04 25.6V 150Ah
  • INQUIRY

3840Wh All-In-One System Energy Storage System (ESS) with 3KVA Inverter LiFeP04 25.6V 150Ah


Introduction:

All-In-One Energy Storage System is a removable residential solar storage battery bank which can be operated under off grid. There is an inverter and PV systems built inside to form an Energy Storage System (short for ESS). The main functions are to store power generated by PV and power your home appliances. Our Energy Storage System can provide backup power for household during blackouts, reduce electricity bill and protect environment by consumption of solar energy.


Specification:

Electrical Characteristics

Standard Charge and Discharge

Nominal Voltage

25.6V

Charge Voltage

28.4-29.2V

Nominal Capacity

150Ah

Charge Mode

0.2C to 29.2V, then 29.2V, charge current to 0.02C (CC/CV)

Minimum Capacity

150Ah

Energy

3840Wh

Charge Current

20A

Months Self Discharge

<3%

Max. Charge Current

100A

Cycle Life

>2000 cycles @0.5C 100%DOD

Max Continuous Discharge Current

150A

Efficiency of Charge

100% @0.5C

Peak Discharge Current

300±50 A 1-3S

Efficiency of Discharge

96~99% @0.5C

Discharge Cut-off Voltage

20V±0.5V

Max. Modules in parallel

1pcs

Mechanical

BMS Functions

Over charge, over discharge, over current, short circuit and temperature protection

Shell Material

Metal Case

Approx. Dimensions

L630Xw330xH470H1 546mm

Approx. Weight

63kgs

Terminal Type

Terminal  100A

Inverter

Environmental

Inverter power

6000VA  Max

Charge Temperature

0 to 55 (32F to 131F) @60±25% Relative Humidity

Waveform

Pure sine wave

Input  Voltage

90~280 VAC   50Hz/60Hz (Automatic adaptation)

Discharge Temperature

-20 to 60 (-4F to 140F) @60±25% Relative Humidity

Highest conversion rate

93%

Storage Temperature

-20 to 45 (-4F to 113F) @60±25% Relative Humidity

Solar panel power

1500W

Solar charging current

50A

IP Class

IP20

Max Charging current

20A

Open circuit voltage

30-32 VDC

Solar Charge

Built-in MPPT

Max Charging current

20A

Open circuit voltage

30-32 VDC

Solar Charge

Built-in MPPT



Features:

* Long Service Life: up to 10 years

* Proven Safety: Intelligent BMS and lithium iron phosphate cells ensure system with highest safety

* Easy Operation: The compact design allows easier and faster operation

* Low noise: Self-cooling with low noise.



Applications:

*Residential & Commercial Solar Energy Storage

*Solar/Wind Energy Storage

*Back-up Power Supply for UPS/ EPS

*Marine Boats/RV

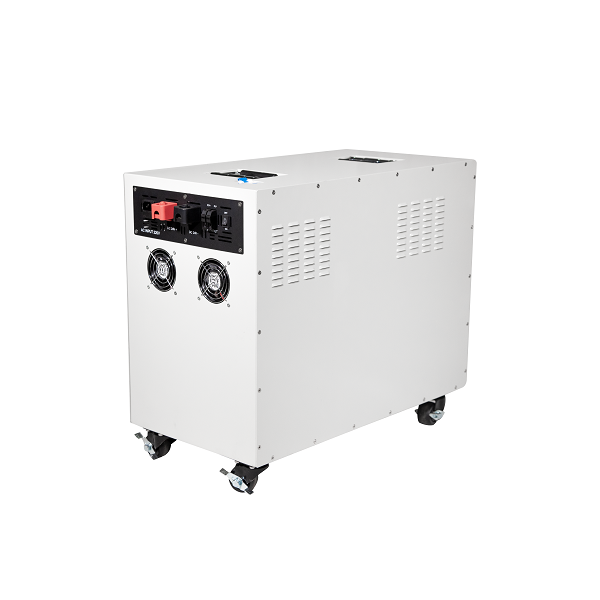

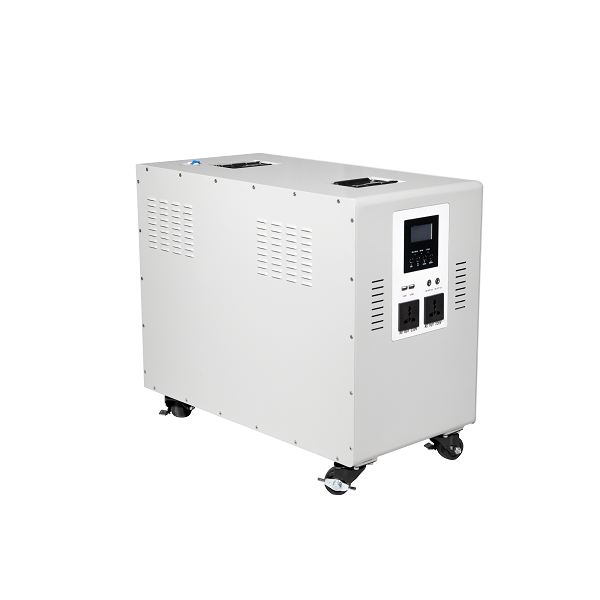

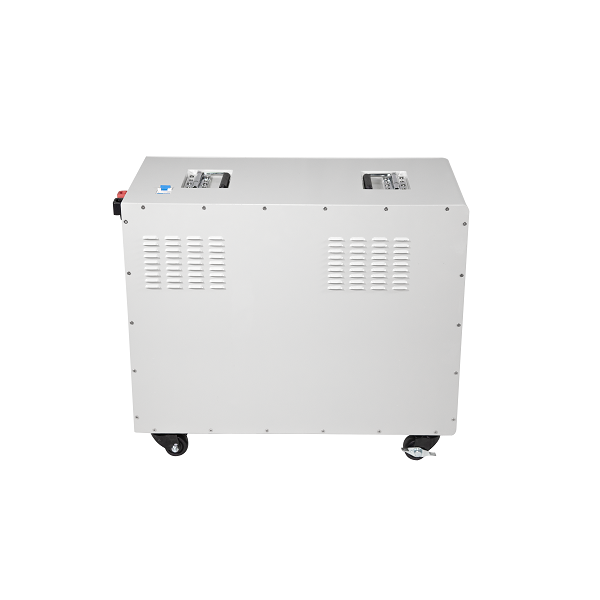

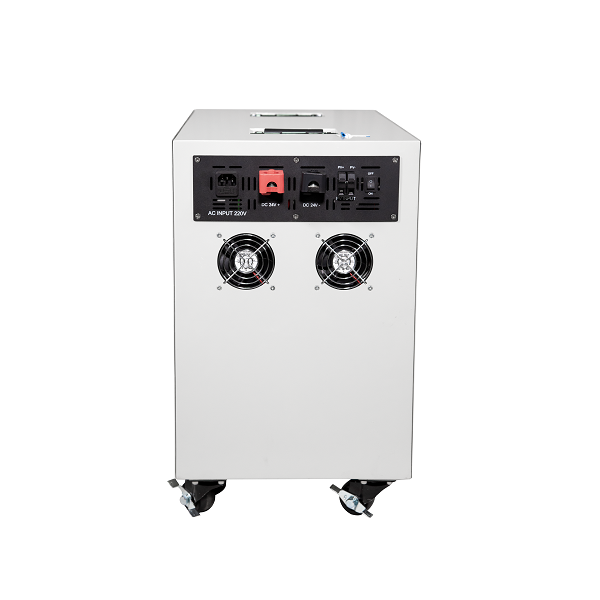

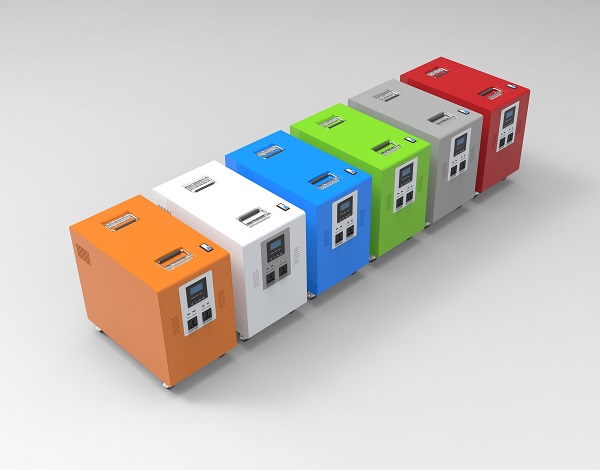

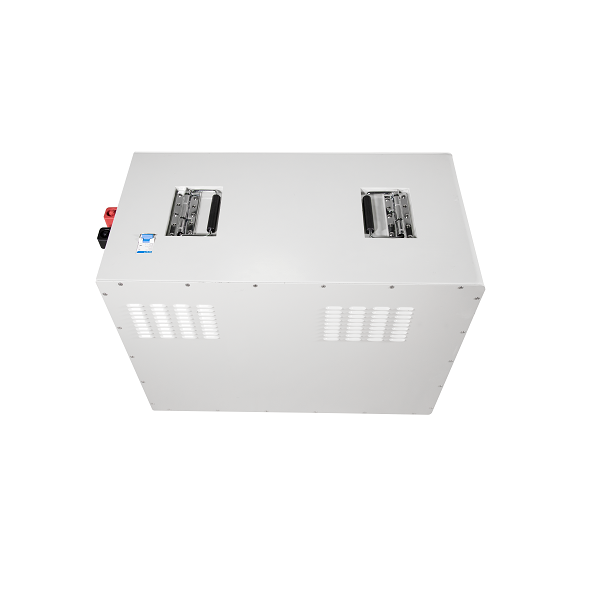

Product Pictures:
