5kwh All In One System with 3KVA Inverter LiFeP04 24V 200Ah
Introduction:
All-In-One Energy Storage System is a removable residential solar storage battery bank which can be operated under off grid. There is an inverter and PV systems built inside to form an Energy Storage System (short for ESS). The main functions are to store power generated by PV and power your home appliances. Our Energy Storage System can provide backup power for household during blackouts, reduce electricity bill and protect environment by consumption of solar energy.
Specification:
|
Model |
MP01 |
MP02 |
MP03 |
|
|
Electrical Characteristics |
||||
|
Battery Type |
Lithium Iron Phosphate (LiFePO4) Battery |
|||
|
Nominal Voltage |
25.6V |
51.2V |
51.2V |
|
|
Nominal Capacity |
200Ah |
200Ah |
100Ah |
|
|
Minimum Capacity |
200Ah |
200Ah |
100Ah |
|
|
Energy (kWh) |
5.12kWh |
10.24kWh |
5.12kWh |
|
|
Cycle Life |
6000+ cycles |
|||
|
Months Self Discharge |
<3% |
|||
|
Resistance |
≤20 mΩ @ 50% SOC |
|||
|
Efficiency of Charge |
100% @0.5C |
|||
|
Efficiency of Discharge |
96~99% @0.5C |
|||
|
BMS Functions |
Over charge, over discharge, over current, short circuit and temperature protection |
|||
|
Bluetooth |
Bluetooth APP 5.0 |
|||
|
Max. Modules in parallel |
3pcs (Inverter AC in parallel) |
6pcs (Inverter AC in parallel) |
3pcs (Inverter AC in parallel) |
|
|
Charge Parameters |
||||
|
Charge Voltage |
28.8V-29.2V |
56.8V-58.4V |
56.8V-58.4V |
|
|
Charge Mode |
(CC/CV) |
0.2C to 58.4V, then 58.4V,charge current to 0.02C (CC/CV) |
||
|
Recommend Charge Current |
40A |
40A |
20A |
|
|
Max. Charge Current |
60A |
60A |
40A |
|
|
BMS Charge Voltage Cut-Off |
30 V (2 s) |
60 V (2 s) |
60 V (2 s) |
|
|
Reconnect Voltage |
28.4 V |
56.8 V |
56.8 V |
|
|
Balancing Voltage |
27.2V |
54.4V |
54.4V |
|
|
Discharge Parameters |
||||
|
Max Continuous Discharge Current |
150A |
150A |
100A |
|
|
Peak Discharge Current |
180A (10S) |
180A (10S) |
180A (10S) |
|
|
BMS Discharge Current Cut-Off |
450 A (320m s) |
450 A (320m s) |
350 A (320m s) |
|
|
Recommend Low Voltage Disconnect |
21.6V |
43.2V |
43.2V |
|
|
BMS Discharge Cut-off Voltage |
20V (2S) |
40V (2S) |
40V (2S) |
|
|
Reconnect Voltage |
21.6V |
43.2V |
43.2V |
|
|
Short Circuit Protection |
200-600 µs |
200-600 µs |
200-600 µs |
|
|
Environmental |
||||
|
Charge Temperature |
0 ℃ to 55 ℃ (32F to 131F) @60±25% Relative Humidity |
|||
|
Discharge Temperature |
-20 ℃ to 60 ℃ (-4F to 140F) @60±25% Relative Humidity |
|||
|
Storage Temperature |
-10 ℃ to 35 ℃ (14F to 95F) @60±25% Relative Humidity |
|||
|
BMS High Temperature Cut-Off |
75 ℃ (167 °F) |
|||
|
Reconnect Temperature |
65 ℃ (149 °F) |
|||
|
Enclosure Protection (IP Class) |
IP30 |
|||
|
Mechanical |
||||
|
Shell Material |
SPCC Metal Case |
SPCC Metal Case |
SPCC Metal Case |
|
|
Approx. Dimensions |
750X230x525mm |
750 x255 x 635 mm |
750X230x525mm |
|
|
Approx. Weight |
73kgs (160.9 lbs ) |
105kgs (231.4 lbs ) |
73kgs (160.9 lbs ) |
|
|
Input & Output |
||||
|
AC Input Voltage |
AC 220V 50HZ / AC110V 60HZ |
AC 220V 50HZ / AC110V 60HZ |
||
|
AC Output Voltage |
AC 220V 50HZ / 110V 60HZ / 15A Max |
AC 220V 50HZ / 110V 60HZ / 15A Max |
||
|
AC Charge Current |
40A Max |
60A Max |
||
|
AC Power |
3000W(220V) / 3000W(110V) |
5000W(220V) / 3500W(110V) |
||
|
AC Peak Power |
6000W(220V) / 6000W(110V) |
8000W(220V) / 4000W(110V) |
||
|
Highest conversion rate |
88-92% |
88-91% |
||
|
Solar panel power |
30-100V 1400W Max |
60-145V 4200W Max |
||
|
Solar charging current |
60A Max |
80A Max |
||
|
Solar Charge |
Built-in MPPT |
Built-in MPPT |
||
|
Waveform |
Pure sine wave |
Pure sine wave |
||
|
USB-A |
QC3.0 |
QC3.0 |
||
|
USB-B |
Type-C 18W Max |
Type-C 18W Max |
||
|
DC5.5*2.5 |
12V 10A Max |
12V 10A Max |
||
|
Car Port |
12V 7A Max |
12V 7A Max |
||
Features:
* Long Service Life: up to 10 years
* Proven Safety: Intelligent BMS and lithium iron phosphate cells ensure system with highest safety
* Easy Operation: The compact design allows easier and faster operation
* Low noise: Self-cooling with low noise.
Applications:
*Residential & Commercial Solar Energy Storage
*Solar/Wind Energy Storage
*Back-up Power Supply for UPS/ EPS
*Marine Boats/RV

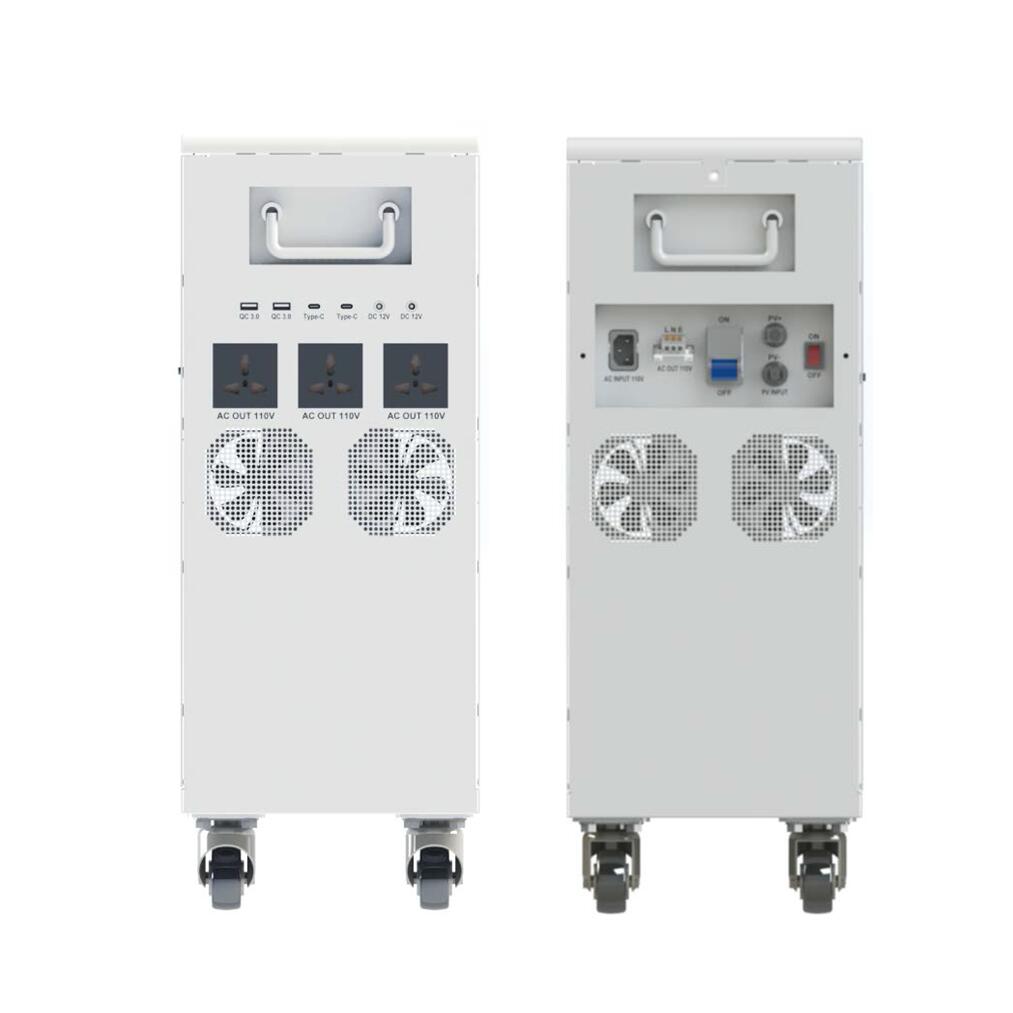

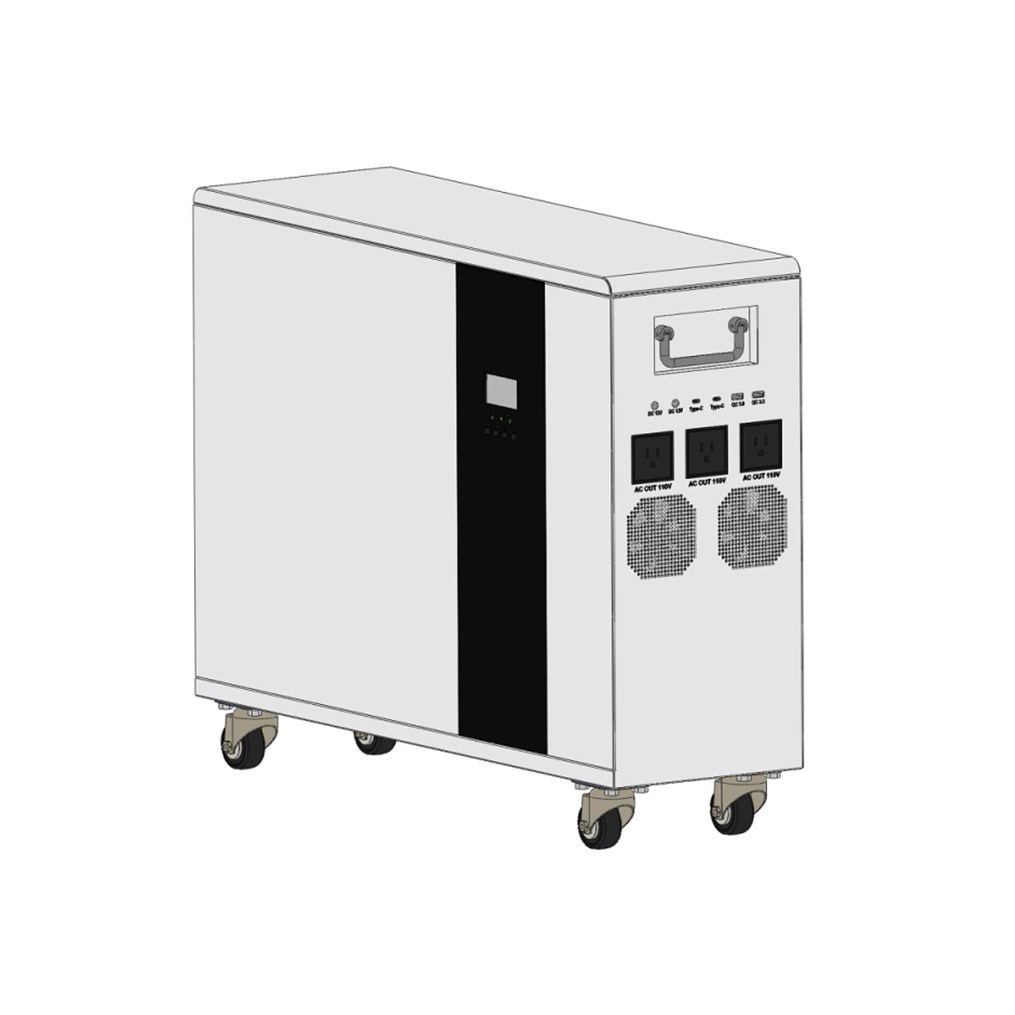

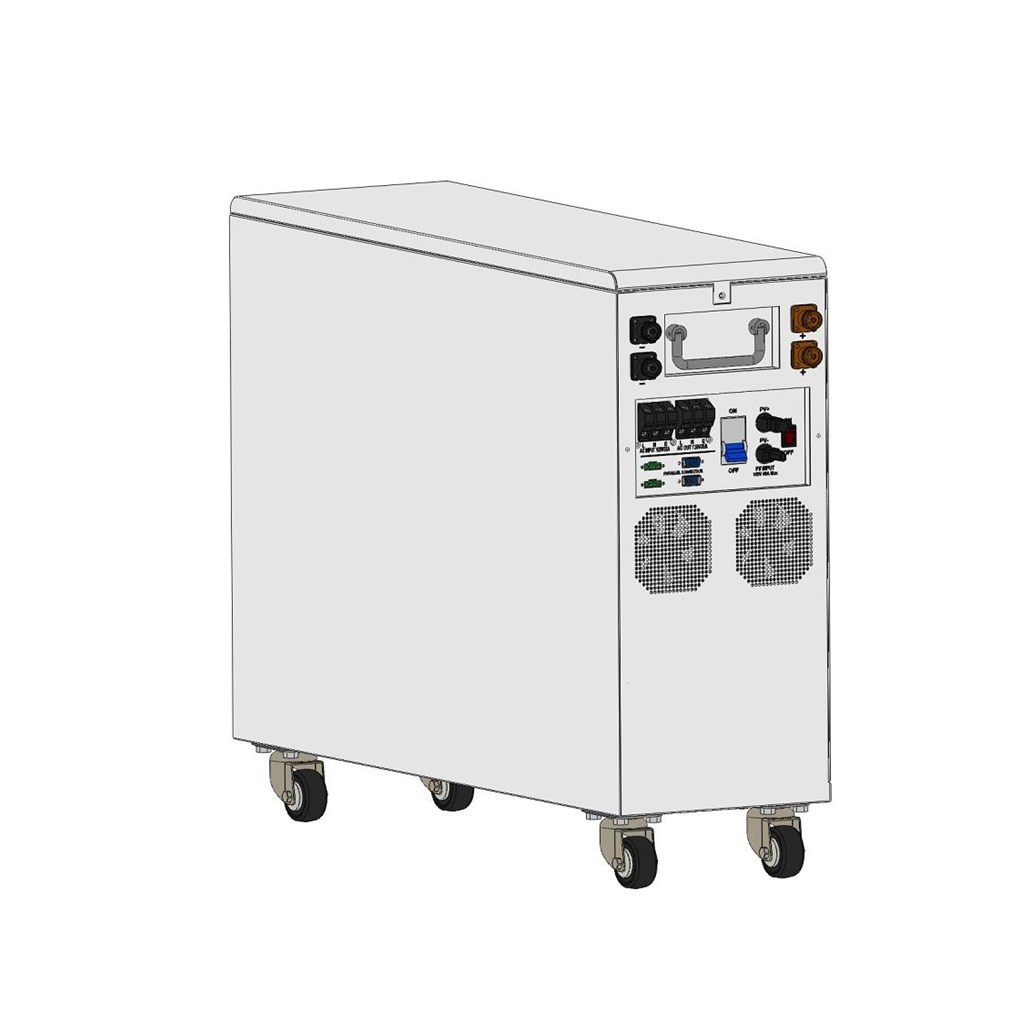

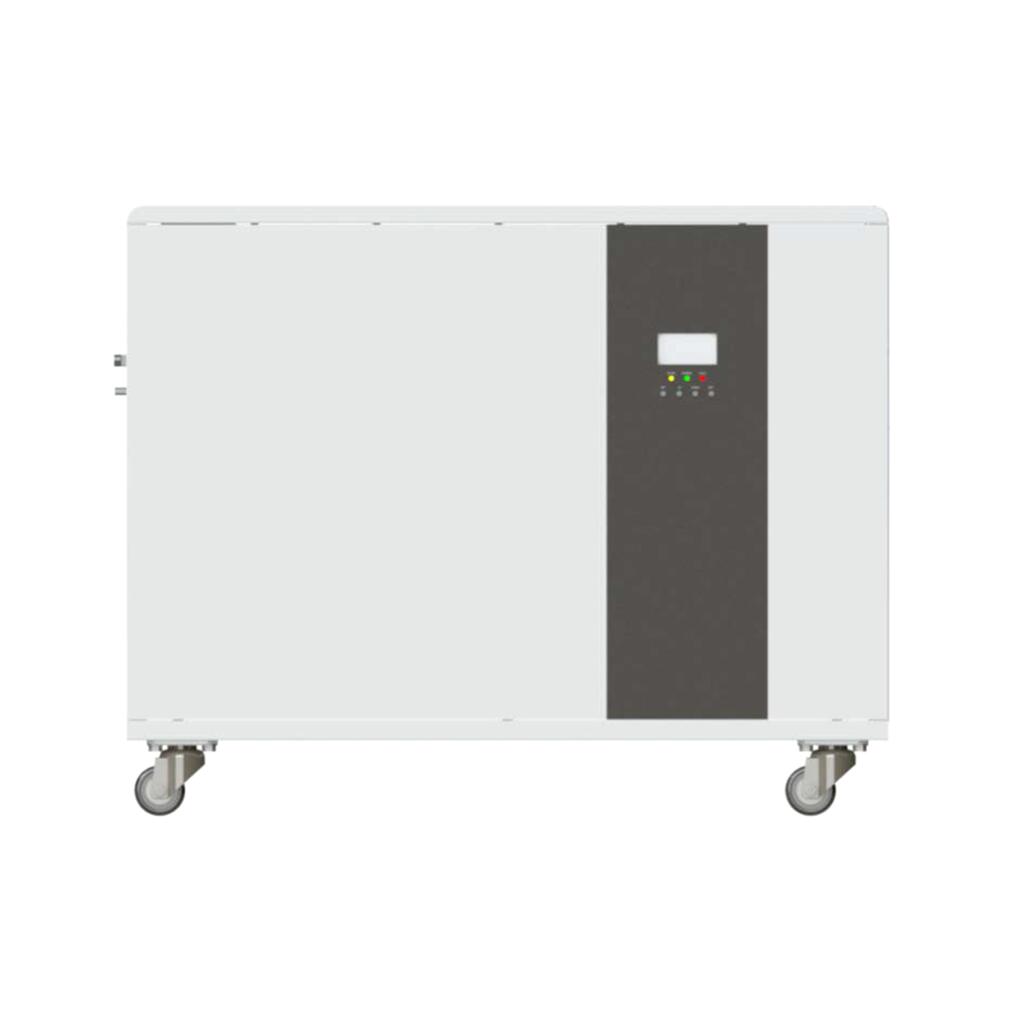

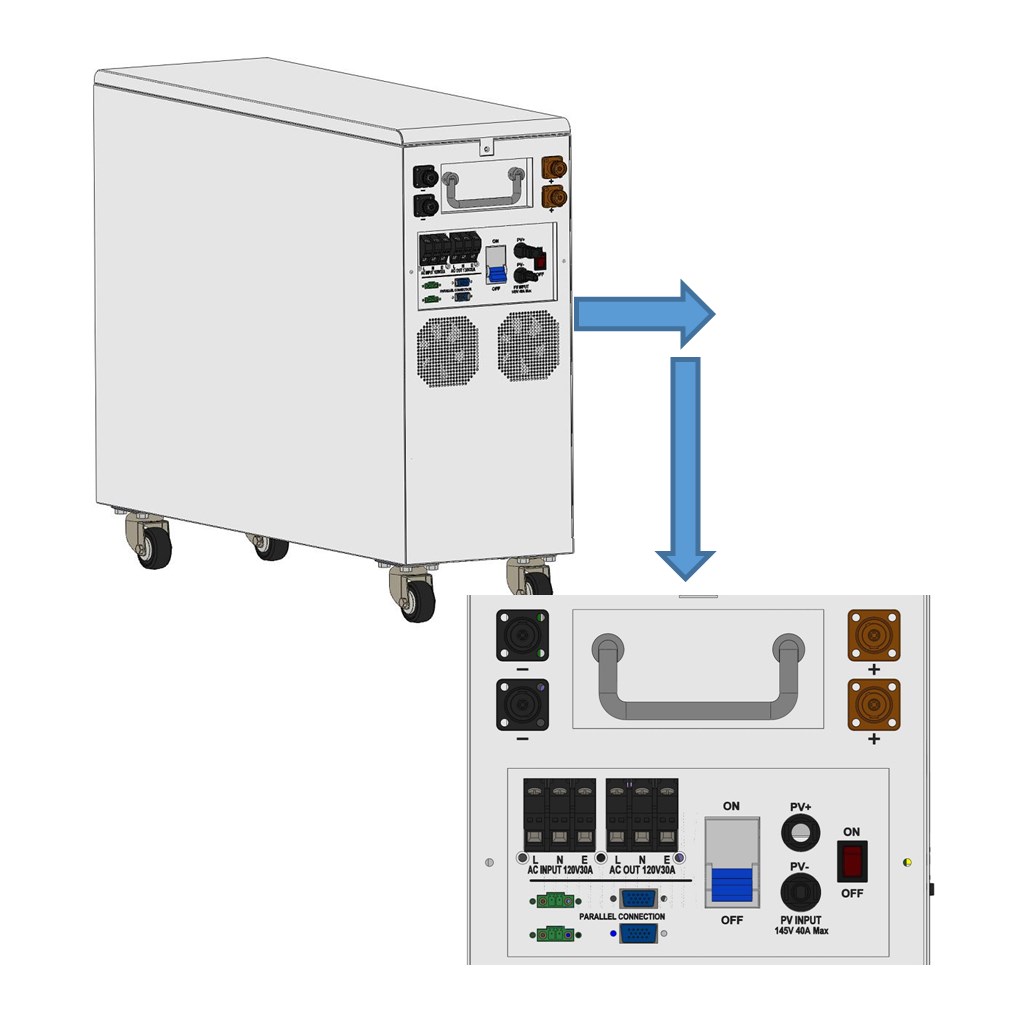

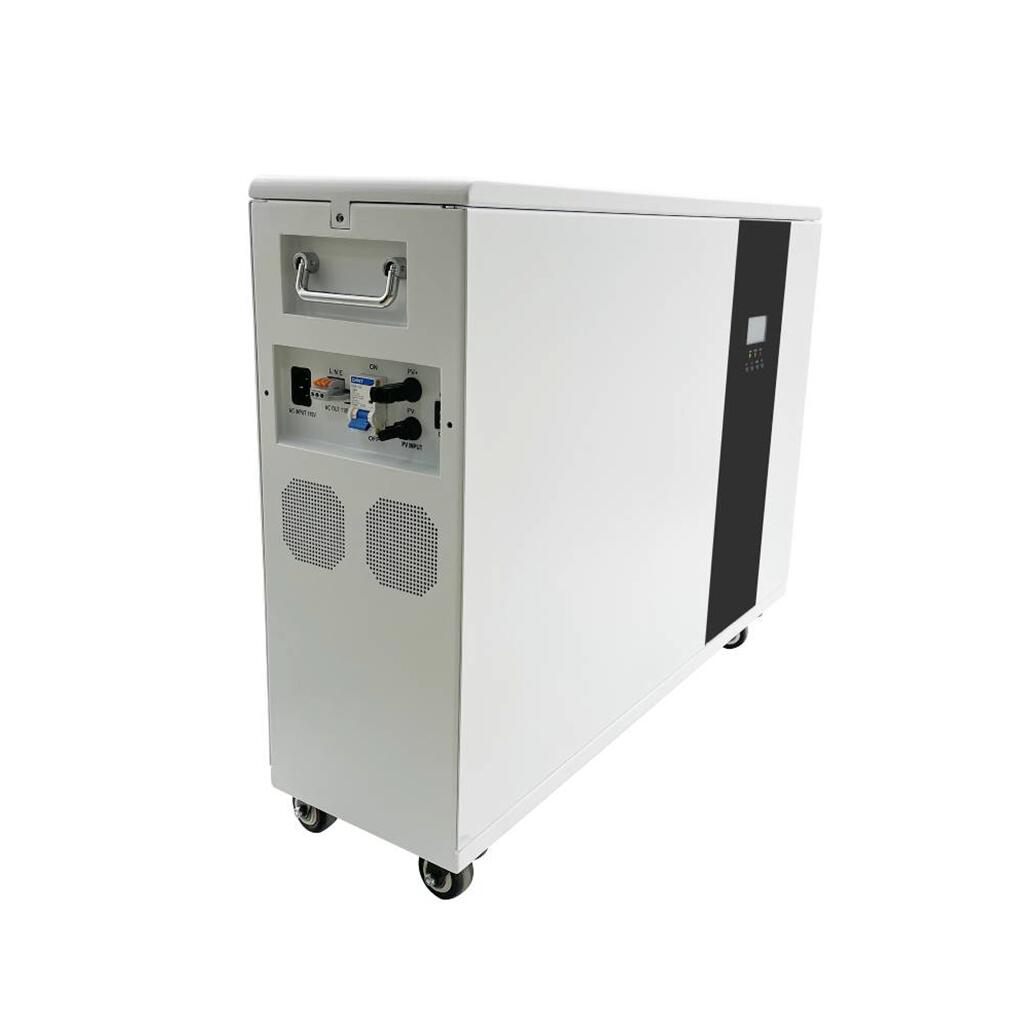

Product Pictures:
