Low Temperature LiFePO4 Battery 24V 150AH

  • Continuous Working Current: 150A
  • Size: L522xW240xH218mm
  • Cycle Life: 5000cycles
  • Warranty: 5 years
  • Product description: Factory supplied deep cycle LiFePO4 lithium battery 24V 150Ah 5000 cycles 10 years service life
  • INQUIRY

Deep Cycle Low Temperature Lithium Battery LiFePO4 25.6V 150AH


Introduction:

Automotive Grade Lithium BatteryOur LiFePO4 lithium batteries have exceptional quality as they are made with Automotive Grade LiFePO4 Cells, which with higher energy density, more stable performance and greater power. Highest level safety based on UL Testing Certificate for the cells inside the battery pack. With no acid in the battery, you're able to safely mount in any position. This makes LiFePO4 lithium batteries perfect for solar home, RV, campers, golf cart, motor homes, off-grid applications, also a perfect replacement to lead acid battery.

10 Years lifetimeOur LiFePO4 Lithium battery provides 4000~8000 cycles, which is more than 10 times to Lead Acid with 200~500 cycles. Our LiFePO4 Lithium battery has a 10-year service life, three times longer than the Lead Acid battery.

Offer 5 Years WarrantyOur LiFePO4 Lithium battery offer 5 years warranty. We will provide 100% quality guarantee and professional technical customer service during battery lifetime.

Low Temperature ChargingOur Low temperature LiFePO4 lithium battery is specially designed with a heating film on the BMS, when the temperature is below 32°F (0°C), the heating film will be turned on under charging conditions. During the heating process, the charger only supplies power upon the heating film and it will not charge the battery when the temperature is lower than 0°C. When heated to 50°F (10°C), the BMS stops heating and the battery starts to charge. In the process of storage and discharge, the heating film neither works nor consumes battery power.

1/3 Light weight Our LiFePO4 Lithium battery weighs only 1/3 the weight of lead acid batteries, which makes it an easy choice for RVs, Marine and Off-Grid Applications when mounting or mobility is in the consideration.

95% EfficiencyOur LiFePO4 Lithium battery flat discharge curve holds above 12.8V for up to 95% of its capacity usage, providing astronomical boosts in run-time compared to Lead Acid battery (which only 50%). This product is your best choice for outdoor camping power and indoor easy installation. Without memory effect, no matter what state the battery is, it can be used as soon as it is charged.

100% Protection & DeliveryOur LiFePO4 Lithium battery has built-in BMS to protect it from overcharge, over-discharge, over-current, and short circuit.

Wide Operating Temperature range

Charge: 0°C~55°C (32F to 131F);

  Discharge: -20°C~60°C (-4F to 140F);

  Storage: -20°C~45°C (-4F to 113F)

Our battery is IP65 waterproof, setting you free from worrying to install indoors or outdoors.

Support Connection in Parallels and in SerialsOur 24V LiFePO4 Lithium Batteries support connection in parallels and in serials for larger capacity and higher voltage. We suggest that the max connection in series is 2pcs batteries to 48V; the max connection in parallels is 4pcs.

Batteries from different manufacturers cannot be connected in series or in parallels. When the batteries are used in parallel or series, the voltage of each battery must be the same. It can support fast charging and solar panel charging.



Specification:







Electrical Characteristics

Nominal Voltage

25.6V

Nominal Capacity

150Ah

Minimum Capacity

150Ah

Energy

38400Wh

Cycle Life

5000 cycles

Months Self Discharge

<3%

Efficiency of Charge

100% @0.5C

Efficiency of Discharge

96~99% @0.5C

BMS Functions

Over charge, over discharge, over current, short circuit and temperature protection



Standard Charge

Charge Voltage

28.4-29.2V

Charge Mode

0.2C to 29.2V, then 29.2V,charge current to 0.02C (CC/CV)

Charge Current

30A

Max. Charge Current

150A


Standard Discharge

Max Continuous Discharge Current

150A

Peak Discharge Current

450A 1-3S

Discharge Cut-off Voltage

20V±0.5V



Environmental

Charge Temperature

0 to 55 (32F to 131F) @60±25% Relative Humidity

Discharge Temperature

-20 to 60 (-4F to 140F) @60±25% Relative Humidity

Storage Temperature

-20 to 45 (-4F to 113F) @60±25% Relative Humidity

IP Class

IP65


Mechanical

Plastic Case

ABS

Approx. Dimensions

L522Xw240xH218mm

Approx. Weight

30kgs


Heating Element Specifications

Heating Temperature Range

-4 to 50 ºF (-20 to 10 )

Heating Time (Approximately)

1 hr @ 5 A

BMS Heating Element Cut-Off

167 ºF (75 )


Remarks:

1. OEM/ODM accepted, can supply sample(s) for test

2. Factory supplied directly, accept small qty order

3. Capable with various shipping methods, by air, by sea, by train, with FOB, CIF, DDP or DDU service


Applications:

     Solar/Wind Energy Storage Application

     Back-up Power for UPS/ EPS

     Off-grid Application

     Low Speed Electric Vehicles, i.e. RV, Caravan, Motor home

     Marine/fishing Boats

     Telecommunication

     DC Power Supply

     Auto Control System

     Power Tools

     Electric Toys


Optional Function on Our LiFePO4 Batteries:

Bluetooth APP

We can customize the bluetooth APP with your company Logo and unique design for you.

Users can monitor the real-time status through the Bluetooth APP on the smart mobile phones.

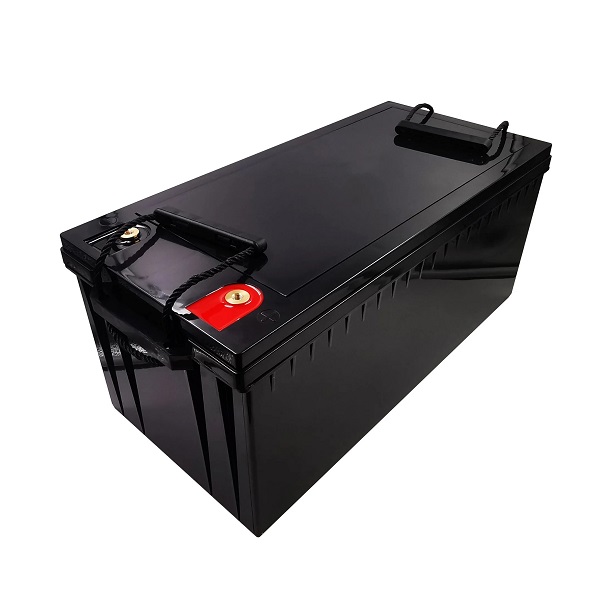

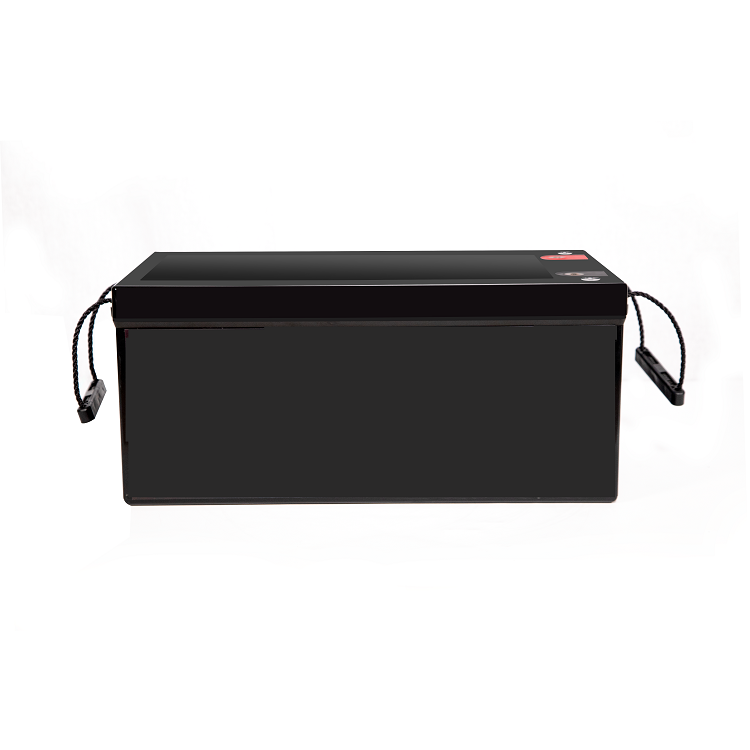

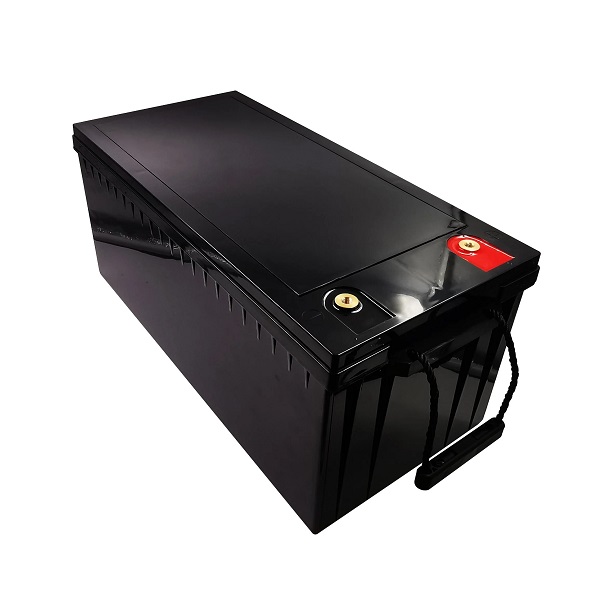

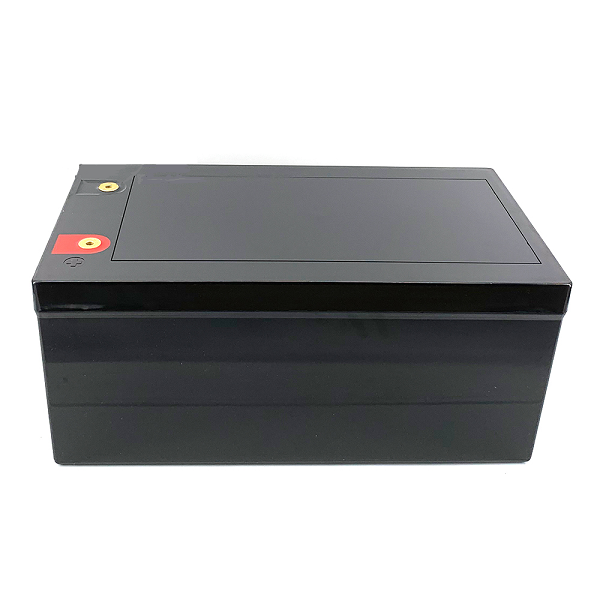

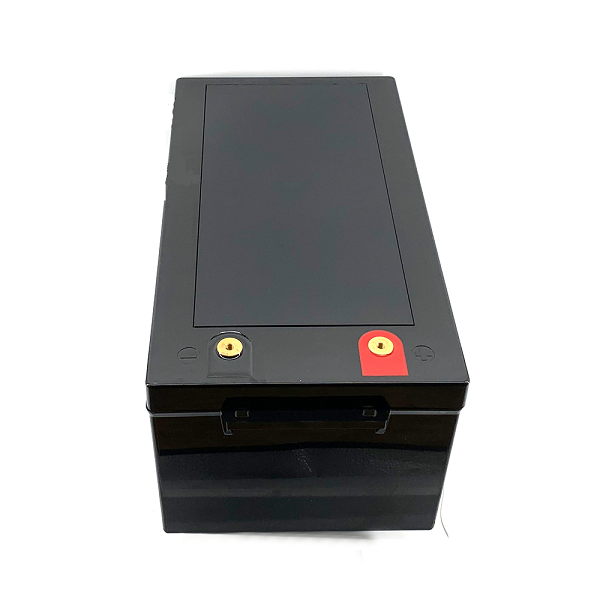

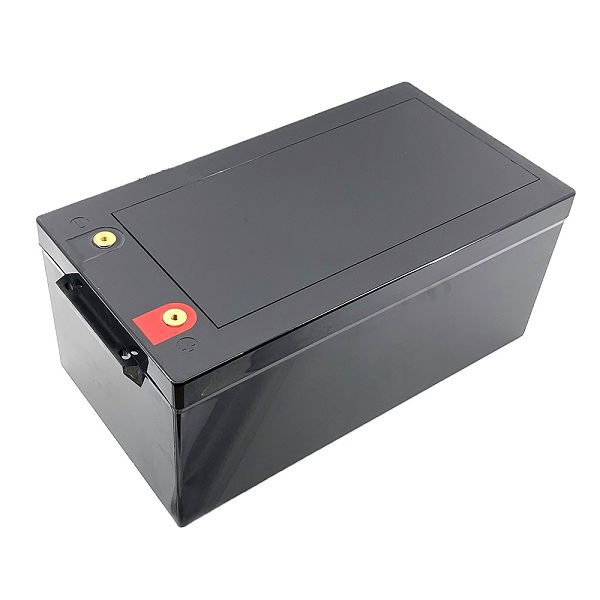

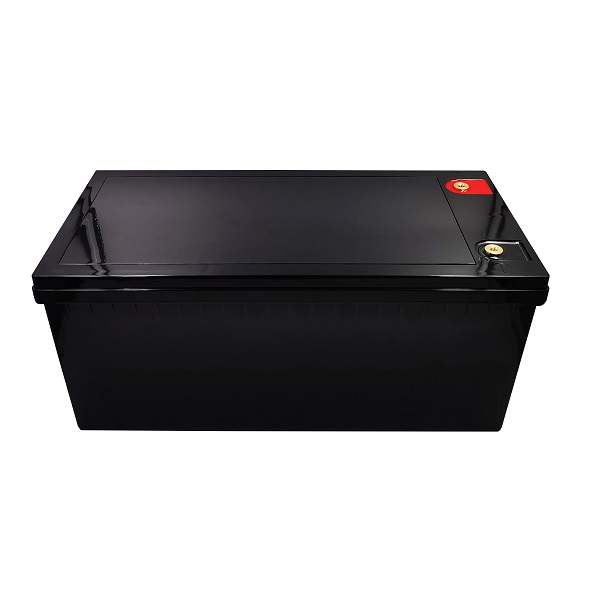

Product Pictures:
