Low Temperature LiFePO4 Battery 24V 100AH

  • Continuous Working Current: 100A
  • Size: L522xW240xH218mm
  • Cycle Life: 5000cycles
  • Warranty: 5 years
  • Product description: Factory supplied deep cycle LiFePO4 lithium battery 24V 100Ah 5000 cycles 10 years service life
  • INQUIRY

Deep Cycle Low Temperature Lithium Battery LiFePO4 25.6V 100AH


Introduction:

The Low Temperature LiFePO4 Battery is specially designed with a heating film on the BMS, when the temperature is below 32°F (0°C), the heating film will be turned on under charging conditions. During the heating process, the charger only supplies power upon the heating film  and it will not charge the battery when the temperature is lower than 0°C. When heated to 50°F (10°C), the BMS stops heating and the battery starts to charge. In the process of storage and discharge, the heating film neither works nor consumes battery power.

The ultra-light Deep Cycle LiFePO4 battery can be used as a pure supply battery and can be loaded up to 200A continuously for a short time. The significantly lower weight, the long operational reliability, the long cycle life and the long service life are decisive advantages over conventional batteries of old technology.


Specification:






Electrical Characteristics

Nominal Voltage

25.6V

Nominal Capacity

100Ah

Minimum Capacity

100Ah

Energy

2560Wh

Cycle Life

5000

Months Self Discharge

<3%

Efficiency of Charge

100% @0.5C

Efficiency of Discharge

96~99% @0.5C

BMS Functions

Over charge, over discharge, over current, short circuit and temperature protection



Standard Charge

Charge Voltage

28.4-29.2V

Charge Mode

0.2C to 29.2V, then 29.2V,charge current to 0.02C (CC/CV)

Charge Current

20A

Max. Charge Current

100A


Standard Discharge

Max Continuous Discharge Current

100A

Peak Discharge Current

300A 1-3S

Discharge Cut-off Voltage

20V±0.5V



Environmental

Charge Temperature

0 to 55 (32F to 131F) @60±25% Relative Humidity

Discharge Temperature

-20 to 60 (-4F to 140F) @60±25% Relative Humidity

Storage Temperature

-20 to 45 (-4F to 113F) @60±25% Relative Humidity

IP Class

IP65


Mechanical

Plastic Case

ABS

Approx. Dimensions

L522Xw240xH218mm

Approx. Weight

23.5kgs


Heating Element Specifications

Heating Temperature Range

-4 to 50 ºF (-20 to 10 )

Heating Time (Approximately)

1 hr @ 5 A

BMS Heating Element Cut-Off

167 ºF (75 )

Remarks:

1. Warranty: 5 Years

2. OEM/ODM accepted, can supply sample(s) for test

3. Factory supplied directly, accept small qty order

4. Capable with various shipping methods, by air, by sea, by train, with FOB, CIF, DDP or DDU service


Applications:

Solar/Wind Energy Storage Application

     Back-up Power for UPS/ EPS

     Low Speed Electric Vehicles, i.e. RV, Caravan, Motor home

     Marine/fishing Boats

     Telecommunication

     DC Power Supply

     Auto Control System

     Power Tools

     Electric Toys


Features of Our LiFePO4 Battery:

High current resistant

Perfect replacement to lead battery

Built-in BMS

Very light weight

Fast charging

High intrinsic safety

Can be used in all positions

Wide Temperature: -20 to 60 (-4F to 140F)

Over 3000 cycles at 90% discharge

Lifespan up to 10 years

100% maintenance free

Environmentally friendly, no lead, no acid

Recyclable


Optional Function on Our LiFePO4 Batteries:

Bluetooth APP

We can customize the bluetooth APP with your company Logo and unique design for you.

Users can monitor the real-time status through the Bluetooth APP on the smart mobile phones.

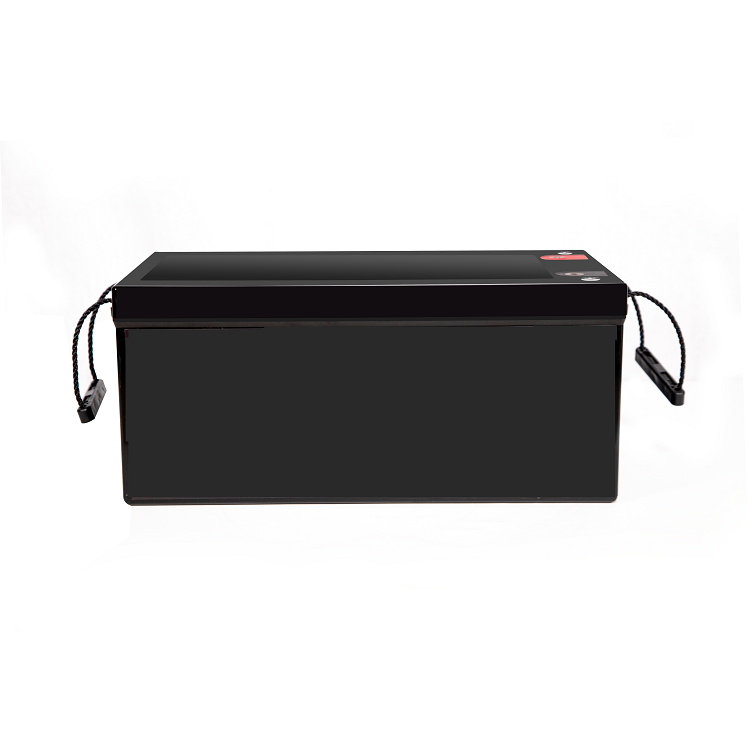

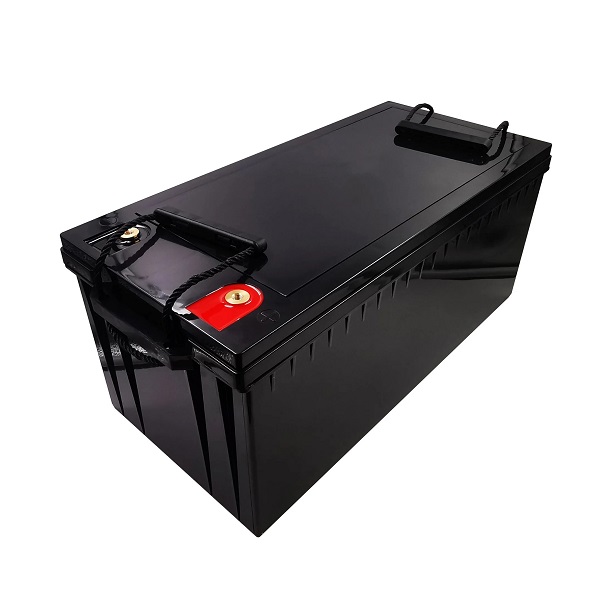

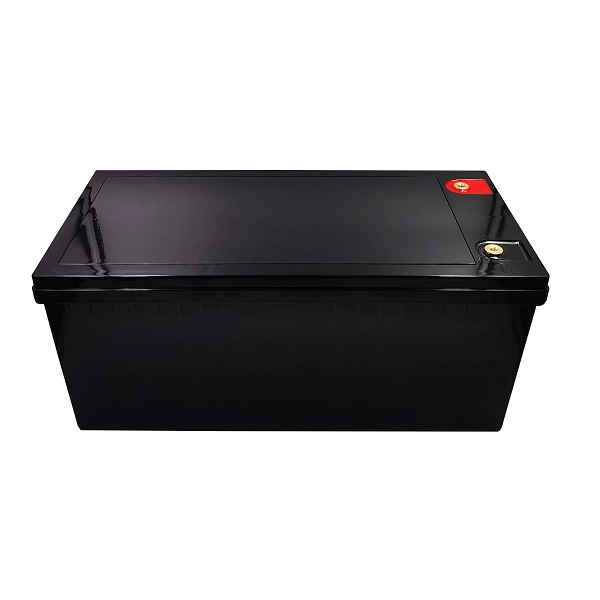

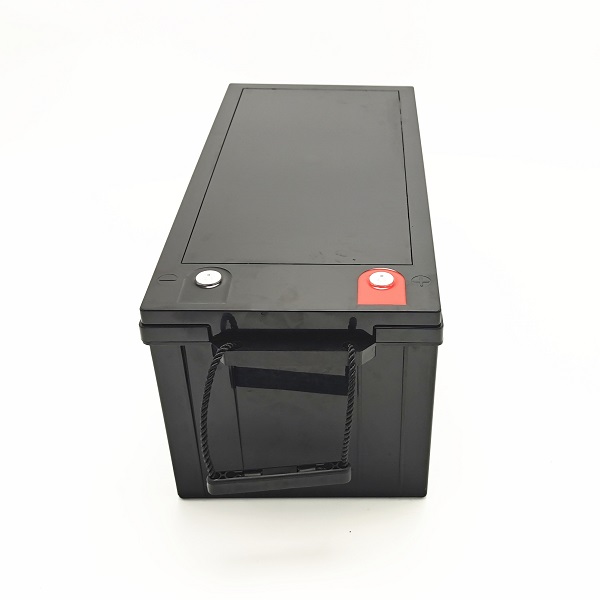

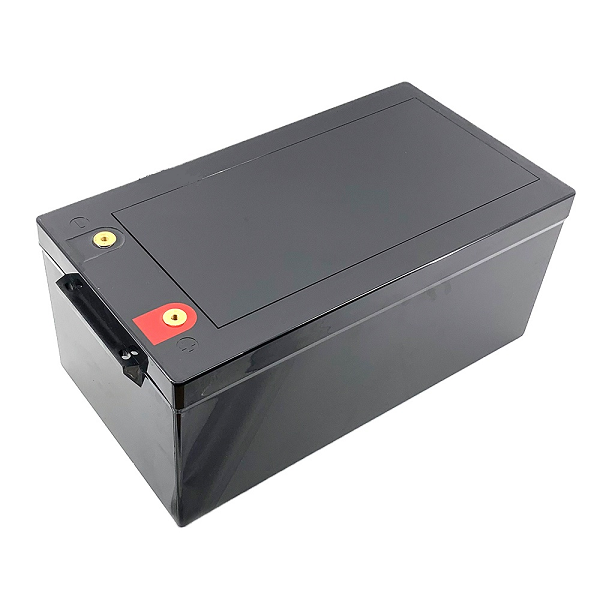

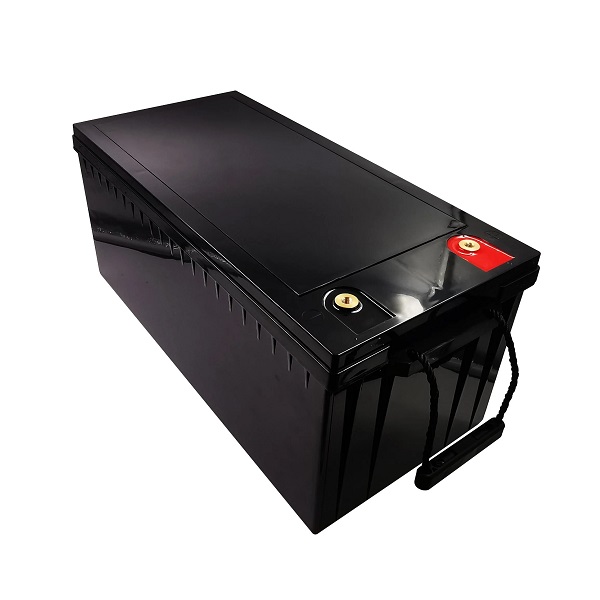

Product Pictures:
