SPECIFICATIONS:
Model

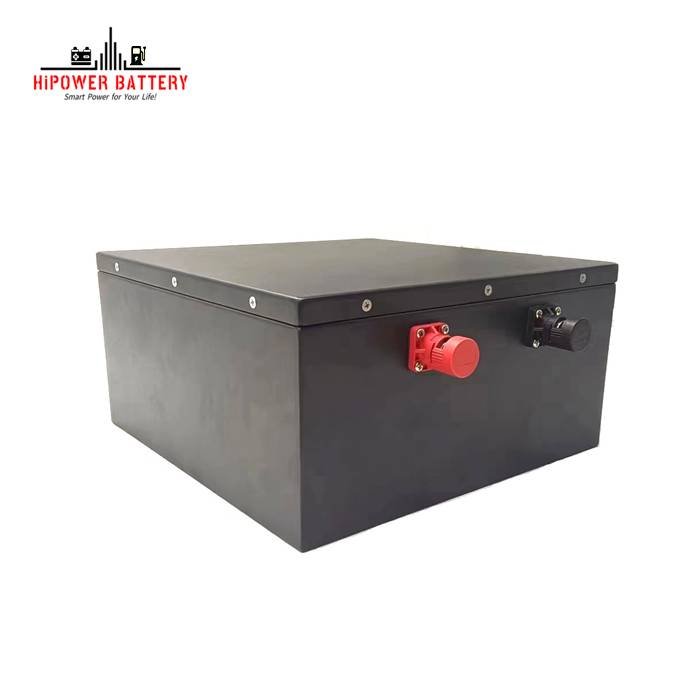

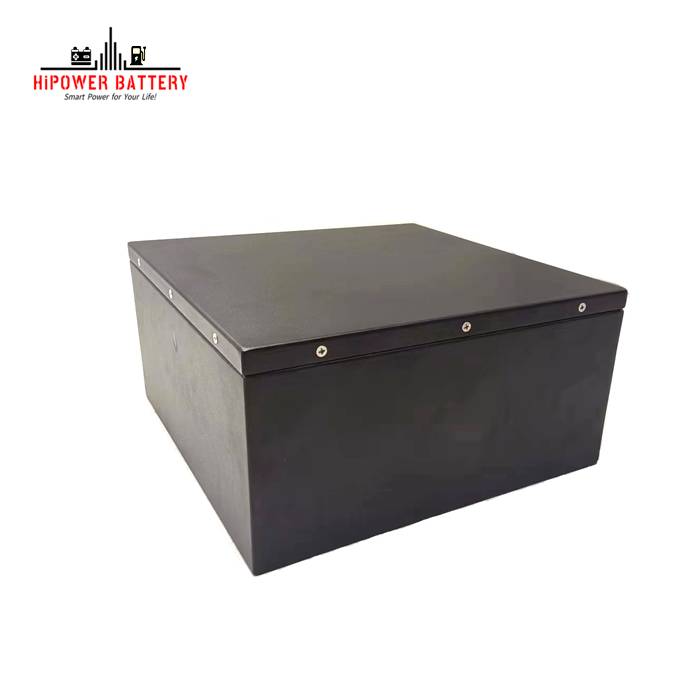

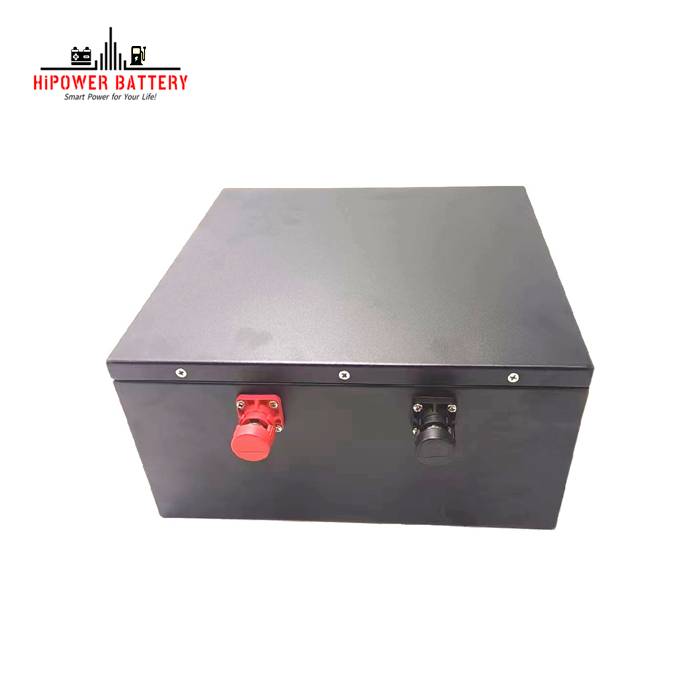

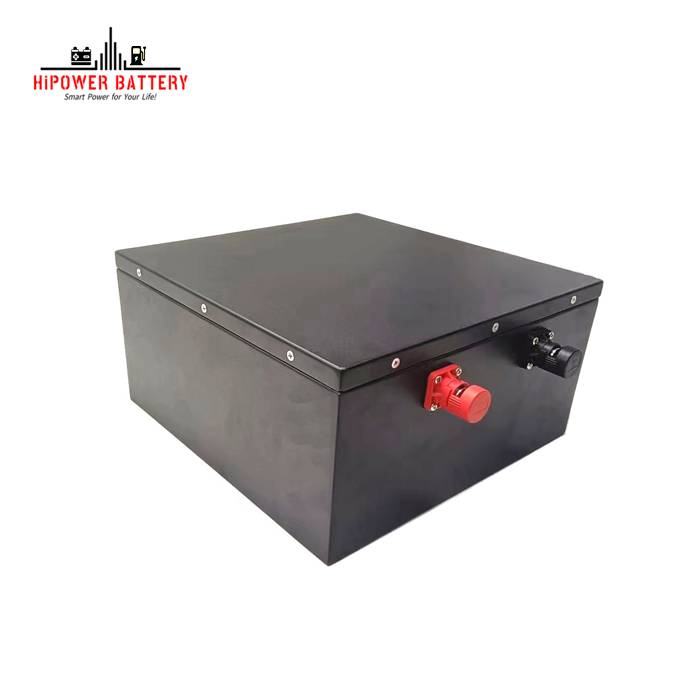

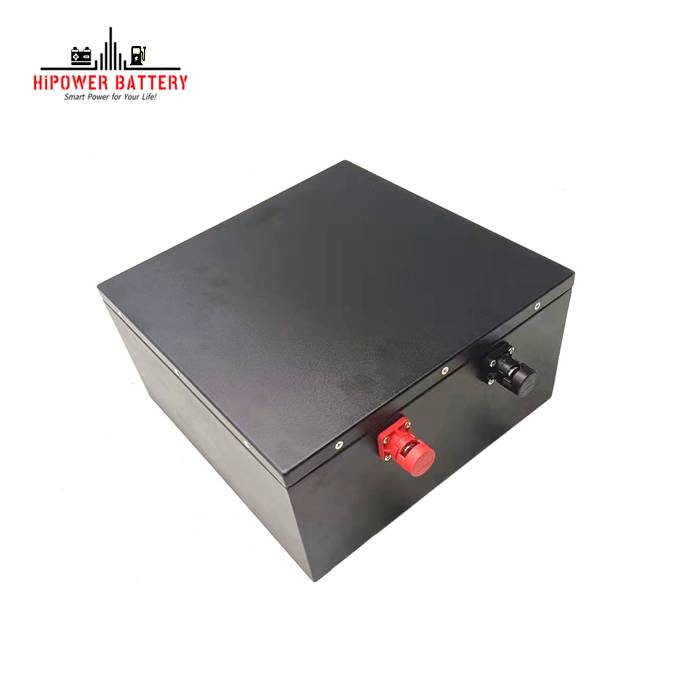

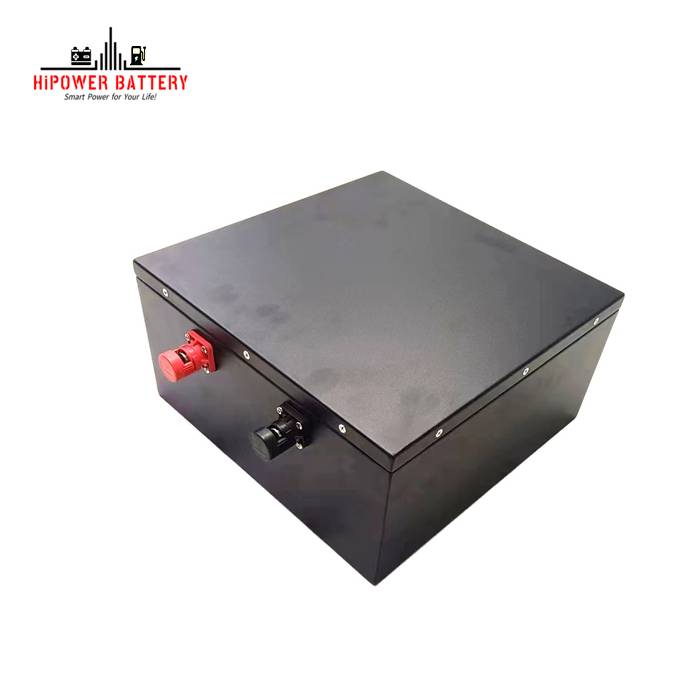

LiFePO4 Battery
12V 210Ah
Nominal Voltage
12.8V
Nominal Capacity
210Ah
Energy
2688Wh
Capacity @ 20A
630 Min
Cycle Life
>5000 cycles
Months Self
Discharge
<3%
Efficiency of
Charge
100% @0.5C
Efficiency of
Discharge
96~99% @0.5C
Communication
Bluetooth, CAN,
RS485, RS232 (Optional)
Heating Function
Optional
BMS Functions
Over charge,
over discharge, over current, short circuit and temperature protection
Charge Voltage
14.2-14.6V
Charge Mode
0.2C to 14.6V,
then 14.6V,charge current to 0.02C (CC/CV)
Suggest Charge
Current
30A
Max. Charge
Current
200A
Max Continuous
Discharge Current
200A
Peak Discharge
Current
600A <5S
Discharge
Cut-off Voltage
10V±0.5V
Charge
Temperature
0 ℃ to 55 ℃ (32F to 131F)
@60±25% Relative Humidity
Discharge Temperature
-20 ℃ to 60 ℃ (-4F to 140F)
@60±25% Relative Humidity
Storage
Temperature
-20 ℃ to 45 ℃ (-4F to 113F)
@60±25% Relative Humidity
IP Class
IP54
Housing
Metal Case
Approx.
Dimensions
320x320(353.7with
terminals)x160 mm or Customized
Approx. Weight
23.0kgs
Battery
Indicator
Yes, or Optional
Bluetooth
Yes
Connection in
Serials
Max. 4PCS to 48V
Connection in
Parallels
Suggest Max.
4PCS
Features:
- 5-8 Years Manufacturer Warranty
- Deep Cycle LiFePO4 Lithium Iron Phosphate Battery
- Grade A LiFePO4 EV Cell
- Built-in Smart Battery Management System (BMS)
- 5000+ Cycle life & Maintenance-free
- Over charge and over discharge protection
- Over current and short circuit protection
- High & low temperature protection
- IP65 Rated, dust and waterproof
- Internal heating allows for charging in below freezing conditions(Optional
Applications:
- RV, Caravan, Camper, Motor home;
- Trolling Motors
- Fishing Boat, Houseboat & other Marine Applications
- Mobile Power Supply
- Solar PV System, Household Energy Storage System, Backup Power Supply, UPS, EPS, ect.
- Lead Acid Battery Replacement
