Li-Ion Battery for Energy Storage

  • Lifepo4 battery 12V 50Ah for solar street light
  • Lifepo4 battery 12V 50Ah for solar street light
  • Lifepo4 battery 12V 50Ah for solar street light
Lifepo4 battery 12V 50Ah for solar street lightLifepo4 battery 12V 50Ah for solar street lightLifepo4 battery 12V 50Ah for solar street light

Lifepo4 battery 12V 50Ah for solar street light

  • Nominal Voltage: 12.8V
  • Nominal Capacity: 52Ah
  • Working current: 10A - 18A
  • Charging Current: 10A - 18A
  • Product description: Lifepo4 battery 12.8V 50Ah for solar street light
  • INQUIRY

Lifepo4 battery 12.8V 50Ah for solar street light



Specification:

Battery pack LiFePO4 12.8V 50Ah

Pack Method

4S1P

Nominal Capacity

52Ah

Discharge : 0.2C

Cut-off Voltage:10V

Minmium Capacity

50Ah

Discharge : 0.2C

Cut-off Voltage: 10V

Nominal Voltage

12.8V

Energy

640Wh

Charge Voltage

14.6V

Discharge cut-off voltage

10V

Charge Method

CC/CV

Standard Charge Current

10A

0.2C

Max. Charge Current

18A

Standard Discharge Current

10A

0.2C

Max. Continous Discharge current

18A

Peak Discharge Current

52A

<400mS

Cycle Life

2000 times

Internal Impedance

35mΩ

Dimension

62×195x331mm

Output Wire

AWG14

Red/Black

Output Connector

N/A

Weight

Approx.5.8kgS

Working Temperature Range

Charge: 0°C--45°C

Discharge: -20°C--60°C

Storage Temperature

-10°C--45°C


Features:

1.   Lighter weight, smaller size
2.   High temperature performance
3.   Extremely safe, no explosion, no fire under collision
4.   Strong over-discharge resistance and charge retention
5.   Strong charging acceptance and quick-charging capability
6.   Maintenance-free and no acid or water for maintenance in usage
7.   Large capability and long life for all high power output applications
8.   Environmentally friendly non-toxic, non-contaminating, no rare metal.
9.   Low self-discharge and good discharge performance at low temperature

10. Excellent large current discharge performance especially in startup and climbing


Applications:


Solar Street Light, LED light, Emergency Lighting, CCTV, Solar Storage System, ect.


*Small Orders Accepted

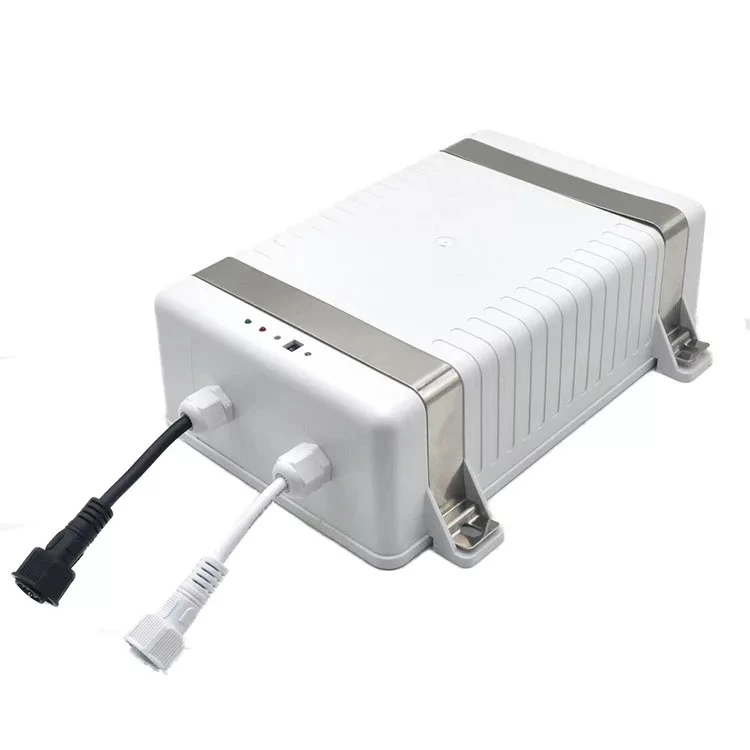

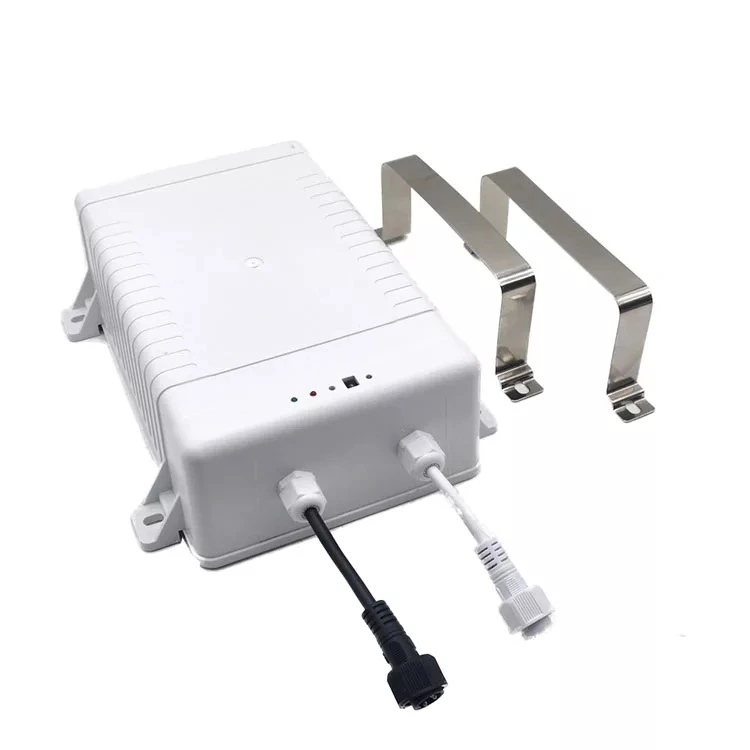

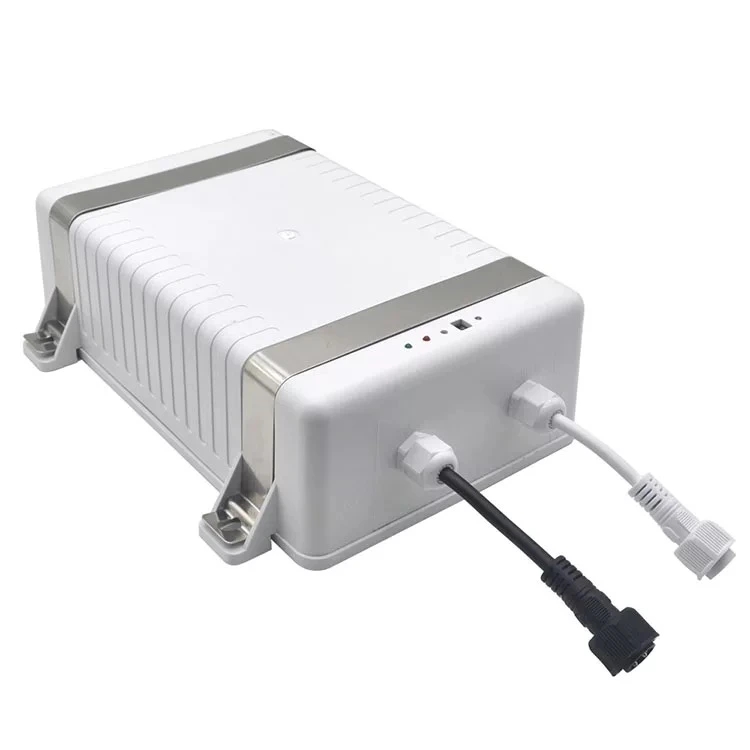

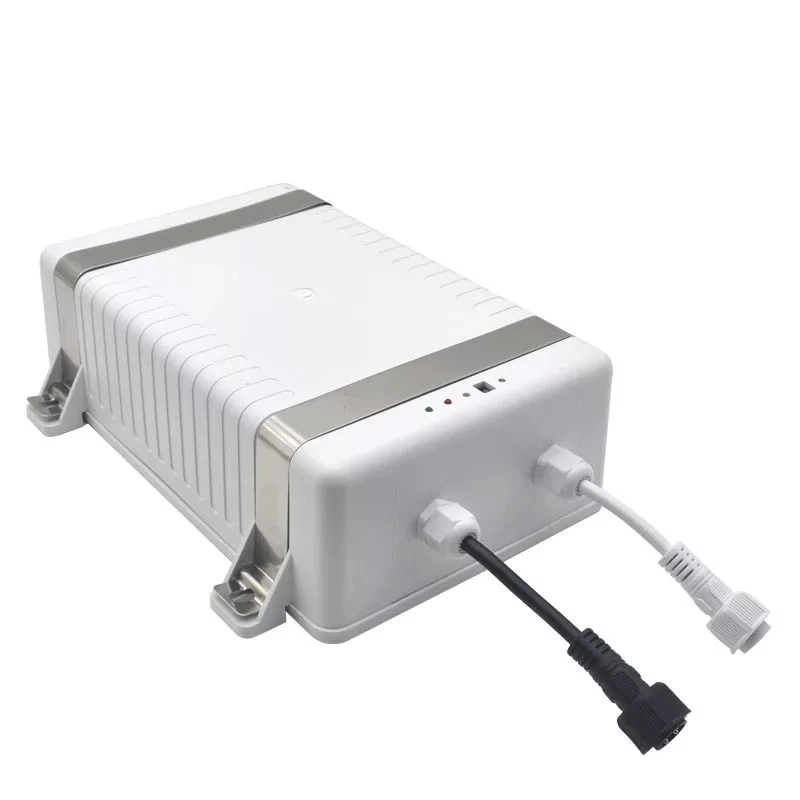

Product Pictures:




Hi-Power's Main Product Series:


1. LiFePO4 / Li-Ion cells: Cylindrical (18650/26650/32650/21700) / Prismatic:( 3.2/3.7V 1Ah -205Ah);

2. LiFePO4 Battery for Sealed Lead Acid Replacement (12.8V-320V with Capacity from 1Ah-500Ah);

3. LiFePO4 Battery for Telecommunication (Packs, Modules, Cabinets);

4. Power Wall (5KWH/7KWH/10KWH, or customized);

5. All-In-One Solar Energy Storage System include Inverter (5KWH, or customized);

6. LiFePO4/Li-Ion Battery for Electric Vehicles;

7. Portable Power Station (1KWH-3KWH)

8. Lithium Ion / LiFePO4 Battery Packs for Electric Vehicles (E-bike, scooter, mobility, wheelchair,

skateboard, goftcart, motorcycle, forklift, RV, AGV, motorhome, marine boat, tourist car, Intellectual Robot, ect.)


Why Choose Us


1. We offer one-stop power solutions, which saves design time and cost for customer:
-- Pack design / External Case design / BMS design

-- OEM/ODM Service

2. Strict quality control system which enhances customers' competitiveness:
-- 100% PCM test by IQC
-- 100% Capacity test by OQC

3. Delivery on time & excellent service:
-- Fast Delivery in 10 days if stock, 12 days for sample, and 20-30 days for mass production
-- 8h RFQ response & 48h spec. solution

4. Experienced R&D team, be customer's professional power solution consultant:
-- Comprehensive Battery Test Center (Safety and Reliable test)
-- Powerful ODM Ability to Afford Customized Design Requirement


Testing Center:





Workshop:



Electric motorcycle battery 72V 70AH 75AH lithium ion battery pack for electric scooter motorbike golf cart ATV Tricycle
