Rack-Mounted LiFePO4 Batteries

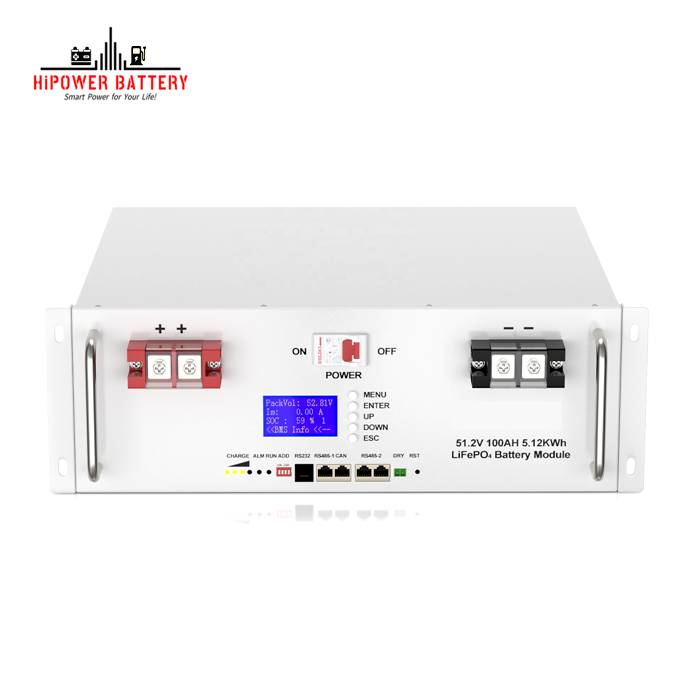

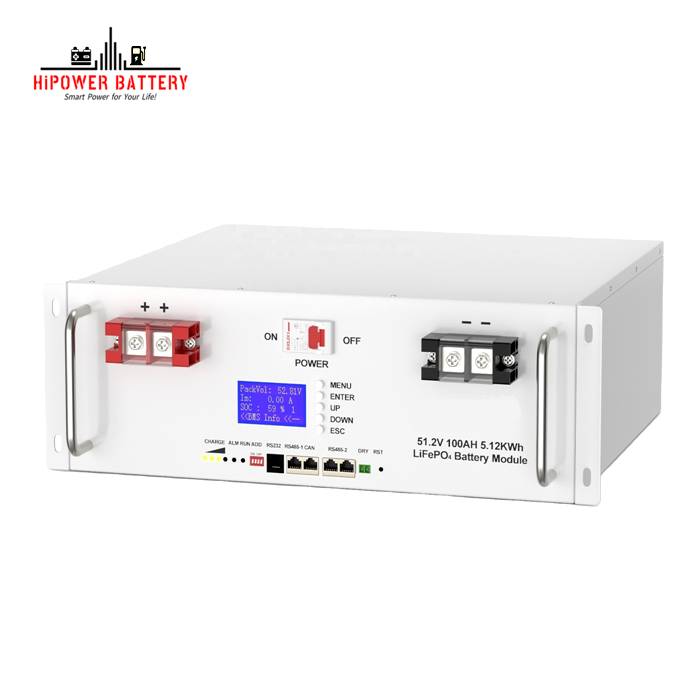

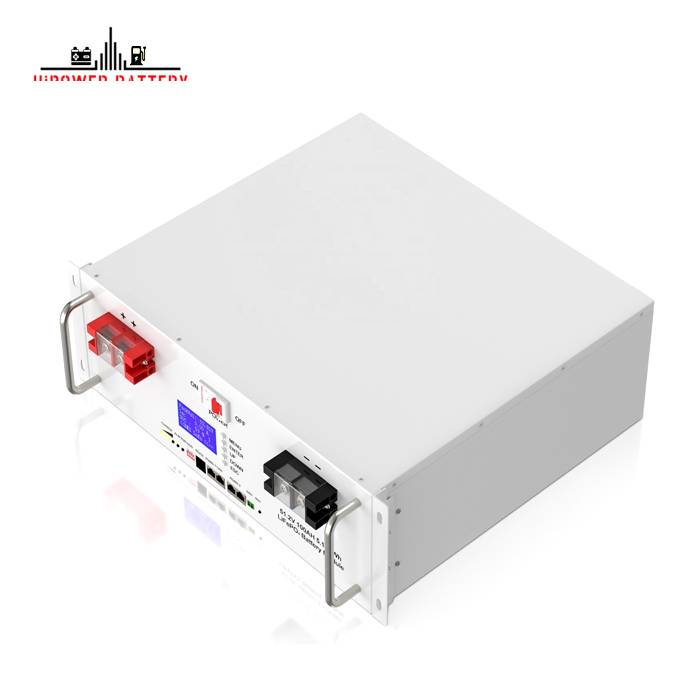

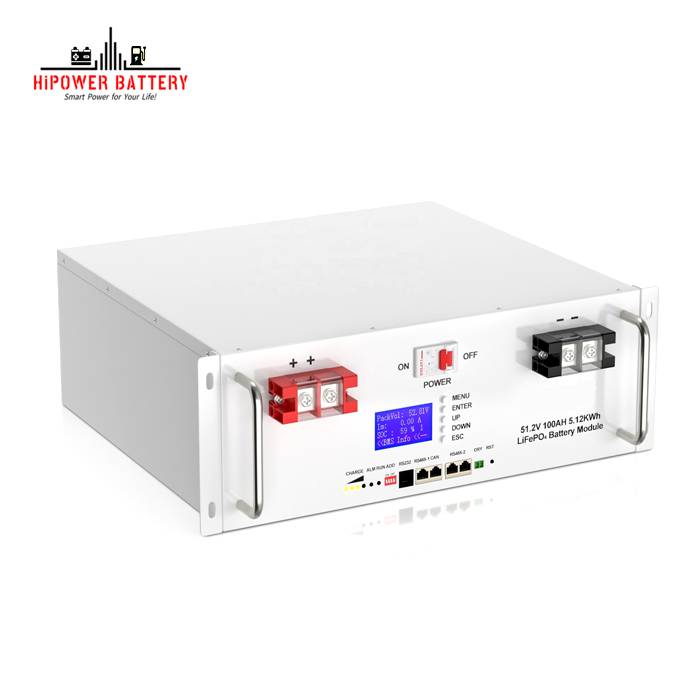

LiFePO4 48V 100Ah Rack-Mounted Lithium Battery

Nominal Voltage: 51.2V
Nominal Capacity: 100Ah
Energy: 5120Wh
Working Current: 100A
Product description: HiPOWER 19 inch Rack-Mounted LiFePO4 Battery 51.2V 100Ah for Solar Energy Storage System and Power Back-up Applications. Support Max. 16pcs Connection in Parallels to 82KW System. Contact Us for the L
INQUIRY

Specifications:

Model	HPLF51100
Nominal Voltage	51.2V
Nominal Capacity	100Ah
Energy	5.12kWh
Charge Voltage	56.8-58.4Vdc
Charge Current	10A
Max. Charge Current	100A
Working Voltage	43.2-58.4Vdc
Discharge Cut-off Voltage	40V±0.5V
Max Cont. Discharge Current	100A
Max. Power	5120W
Connection in Parallels	16pcs max.

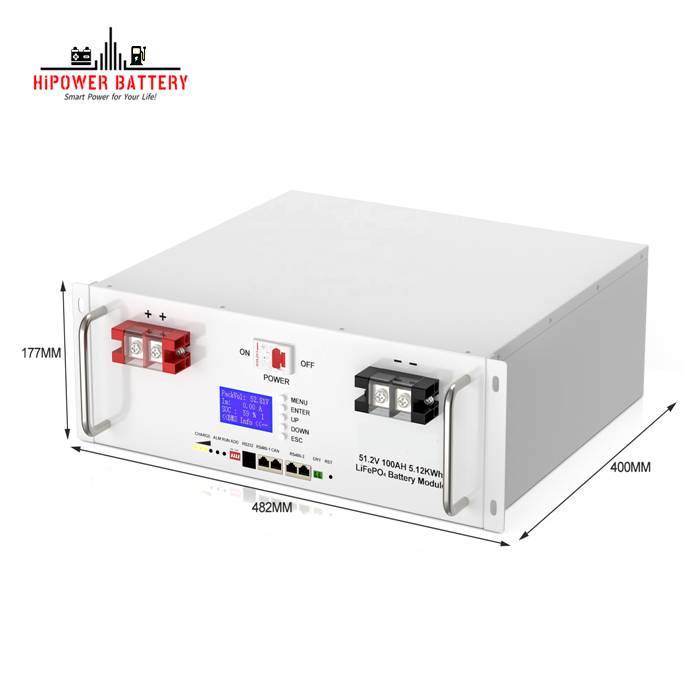

Approx. Dimensions	482x420x177mm or Customized
Approx. Weight	43kgs

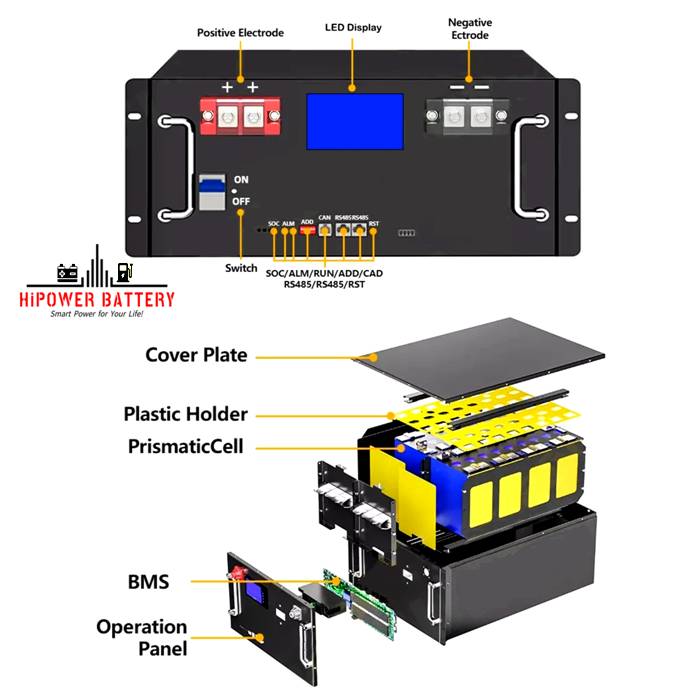

BMS Functions	Over charge, over discharge, over current, short circuit and temperature protection

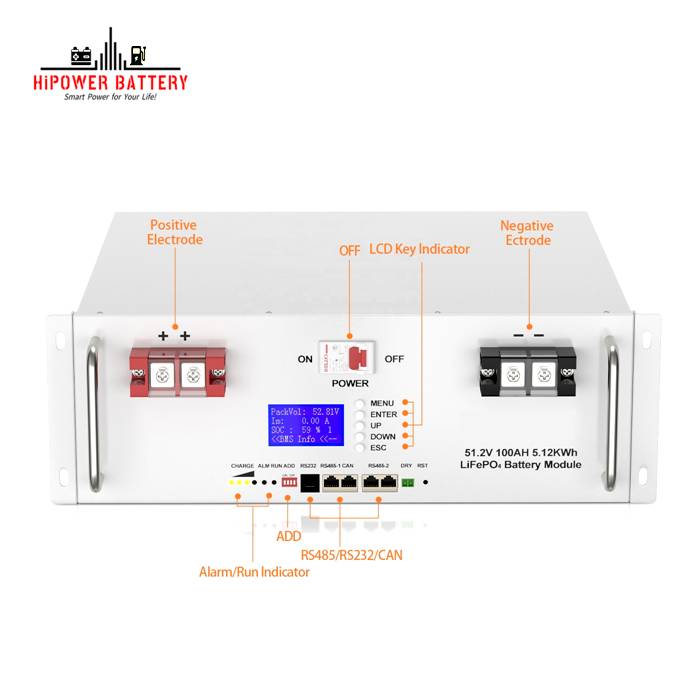

Communication	RS485, RS232, CAN
IP Class	IP20
Months Self Discharge	< 3%
Efficiency of Discharge	> 96%
Designed Service Life	> 10 Years
Cycle Life	> 5000 Cycles
Warranty	5-10 Years
Charge Temperature	0 ℃ to 55 ℃ (32F to 131F) @60±25% Relative Humidity
Discharge Temperature	-20 ℃ to 60 ℃ (-4F to 140F) @60±25% Relative Humidity
Storage Temperature	-20 ℃ to 45 ℃ (-4F to 113F) @60±25% Relative Humidity
Storage Time	5 Months @25 ℃, 3 Months @35 ℃, 1 Months @45 ℃
Lithium Battery Standard	UL1642, IEC, UN38.3, MSDS, CE, FCC, RoHS, ect.

Support OEM/ODM Service

* Customize Battery Size/ Color/ Logo, etc.

* Customize Battery Capacity, Working Current;

* Customize Battery Connector/ Charger

Support Max. 4PCS in Parallels

If without master control, it support max. 4pcs in parallels connection for highest 20.48Kwh battery system;

If with standard master controls, it can be paralleled and serialed with more batteries.

Easy Stack Installation

We can provide the install racks and just to stack batteries. Save your hundreds of $ dollars to buy battery cabinet. There is a lot

of space between the batteries, better for heat dissipation.

19'' Rack-Mounted LiFePO4 Battery Hot Sales Models:

HiPOWER Racked-Mounted LiFePO4 Battery Models
Model	Nominal Voltage	Nominal Capacity	Energy	Dimension	Weight
HPLF24100	25.6V	100Ah	2.56kWh	482x420x133mm	25kgs
HPLF24200	25.6V	200Ah	5.12kWh	482x420x177mm	43kgs
HPLF4850	48V	50Ah	2.40kWh	482x420x133mm	24kgs
HPLF48100	48V	100Ah	4.80kWh	482x420x177mm	42kgs
HPLF48150	48V	150Ah	7.20kWh	482X450X222mm	63kgs
HPLF48200	48V	200Ah	9.60kWh	482X500X280mm	82kgs
HPLF48250	48V	250Ah	12.00kWh	482X500X280mm	96kgs
HPLF5150	51.2V	50Ah	2.56kWh	482x420x133mm	25kgs
HPLF51100	51.2V	100Ah	5.12kWh	482x420x177mm	43kgs
HPLF51150	51.2V	150Ah	7.68kWh	482X450X222mm	65kgs
HPLF51200	51.2V	200Ah	10.24kWh	482X500X280mm	85kgs
HPLF51250	51.2V	250Ah	12.80kWh	482X500X280mm	100kgs
