Server Rack 48V 100Ah LiFePO4 Lithium Battery

48V Series Server Rack Battery

Product Model

HPLF4850SR

HPLF48100SR

HPLF48200SR

Battery Cell Parameters

Battery Cell Type

LiFePO4

LiFePO4

LiFePO4

Nominal Voltage

3.2V

3.2V

3.2V

Nominal Capacity

50Ah

100Ah

200Ah

Voltage Rage

2.8V-3.65V

2.8V-3.65V

2.8V-3.65V

Certification

MSDS/ UN38.3/ UL1973/ IEC62619

Battery Pack Parameters

Nominal Voltage

51.2V

51.2V

51.2V

Nominal Capacity

50Ah

100Ah

200Ah

Energy by kWh

2.56kWh

5.12kWh

10.24kWh

Serial/Parallel

16S1P

16S1P

16S1P

Discharge Voltage

40V-58.4V

40V-58.4V

40V-58.4V

Charge Voltage

54.4V-55.2V

54.4V-55.2V

54.4V-55.2V

Floating Charge Voltage

53.6V-54.4V

53.6V-54.4V

53.6V-54.4V

Max. Charge Current

50A

100A

100A

Max. Continuous Discharge Current

50A

100A

100A

Dimensions (W*D*H)

481*329*165mm

482.6*540*132.5mm

482.6*570*221.5mm

Weight (About)

20kgs

44.5kgs

78kgs

Housing

Metal Case

Cycle Life

>4000 cycles @ 80% DOD

Design Life Span

>10 years

Charge Temperature

0 - 55 °C

Discharge Temperature

(-)10 - 55 °C

IP Rating

IP20

Communication Interface

CAN2.0/RS485/232

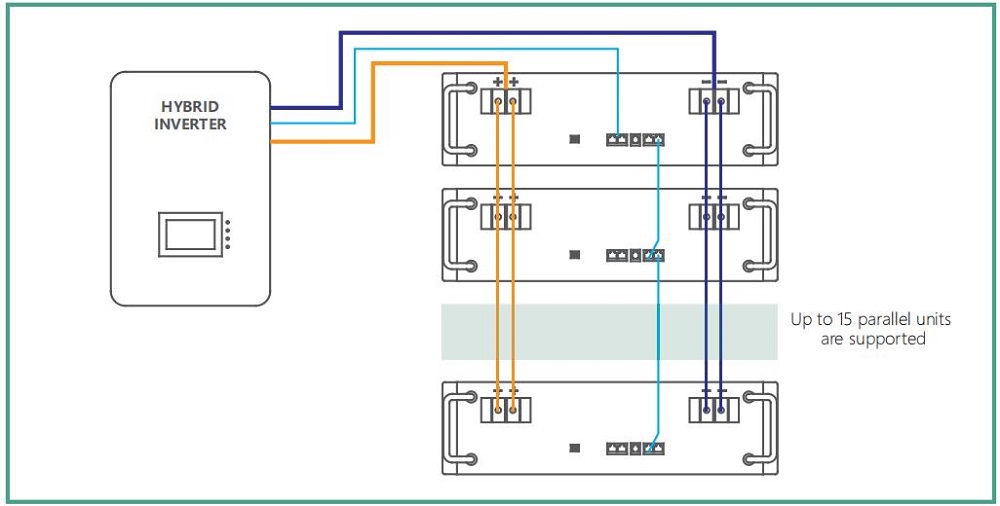

Support Connection in Parallel

Max. 15pcs

BMS Protection Functions

Over charge, Over discharge, Over current, Over Voltage, And Temperature Protection

Applications

Solar/Wind Energy Storage/Communication Backup/ Household and Commercial Energy Storage System/ Power Station, etc.

If Support OEM/ODM Service

YES
