LiFePO4 Battery for Solar Energy Storage

  • LiFePO4 48V 150Ah
  • LiFePO4 48V 150Ah
  • LiFePO4 48V 150Ah
  • LiFePO4 48V 150Ah
  • LiFePO4 48V 150Ah
  • LiFePO4 48V 150Ah
LiFePO4 48V 150AhLiFePO4 48V 150AhLiFePO4 48V 150AhLiFePO4 48V 150AhLiFePO4 48V 150AhLiFePO4 48V 150Ah

LiFePO4 48V 150Ah

  • Energy: 7680Wh
  • BMS: 100A
  • Cycle Life: >3000cycles
  • Communication: RS485/CAN
  • Product description: LiFePO4 48V 150Ah
  • INQUIRY

51.2V 48V 150Ah LiFePO4 Lithium Battery for Solar Energy Storage Application



Specifications

Electrical Characteristics
Nominal Voltage 51.2V
Nominal Capacity 150Ah
Minimum Capacity 150Ah
Energy 7680Wh
Cycle Life 3000 cycles
Months Self Discharge <3%
Efficiency of Charge 100% @0.5C
Efficiency of Discharge 96~99% @0.5C
BMS Functions Over charge, over discharge, over current, short circuit and temperature protection
Communication Port CAN, RS485
Standard Charge and Discharge
Charge Voltage 57.6-58.4V
Charge Mode 0.2C to 58.4V, then 58.4V,charge current to 0.02C (CC/CV)
Charge Current 30A
Max. Charge Current 100A
Charge Voltage 57.6-58.4V
Max Continuous Discharge Current 100A (Can be customized)
Peak Discharge Current 250A  1-3S
Discharge Cut-off Voltage 40V±0.5V
Mechanical
Shell Material SPCC
Approx. Dimensions L482L1442xW450xH222mm
Approx. Weight 63kgs
Terminal Type DW38
Environmental
Charge Temperature 0 to 55 (32F to 131F) @60±25% Relative Humidity
Discharge Temperature -20 to 60 (-4F to 140F) @60±25% Relative Humidity
Storage Temperature -20 to 45 (-4F to 113F) @60±25% Relative Humidity
IP Class IP20

Application:

l  Solar/Wind Energy Storage

l  Off-grid Application

l  Back-up Power for UPS/ EPS

l  Telecommunication

l  Marine Boats

l  DC Power Supply

l  Household Energy Storage

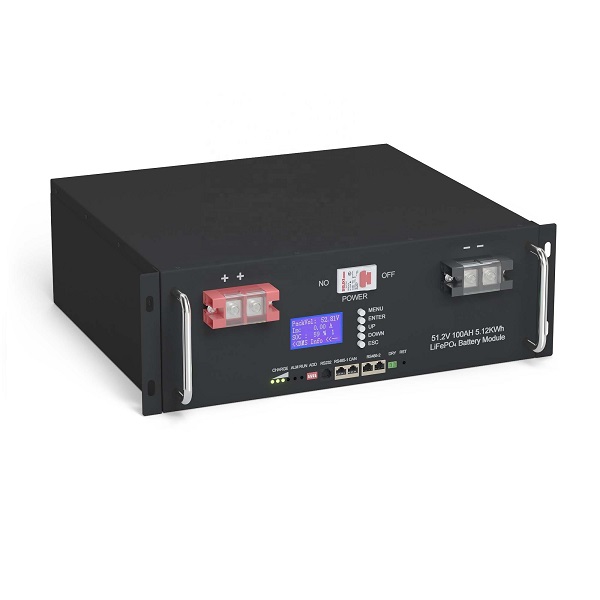

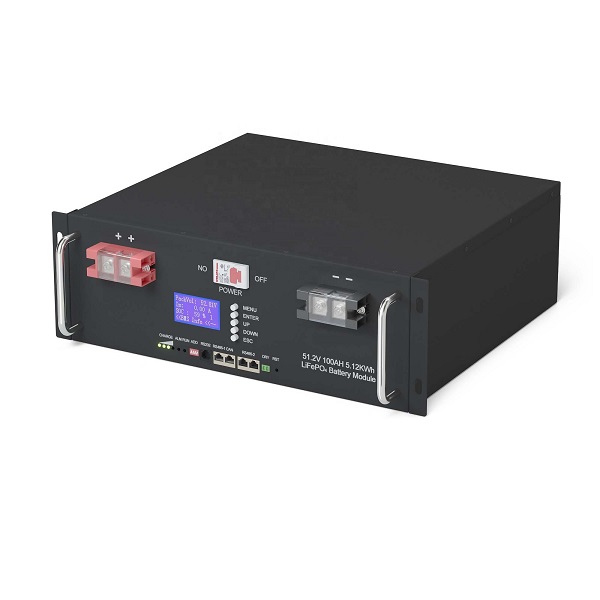

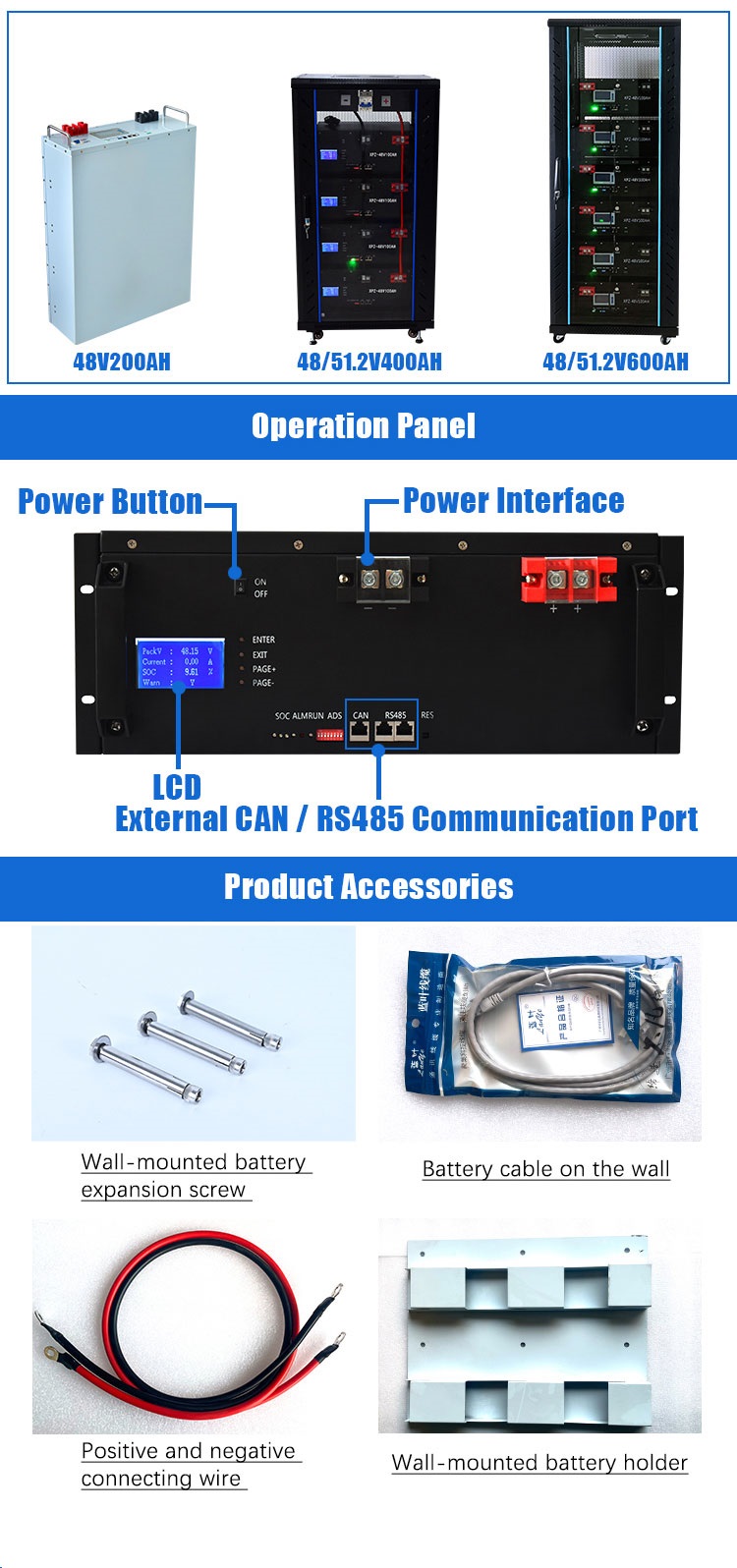

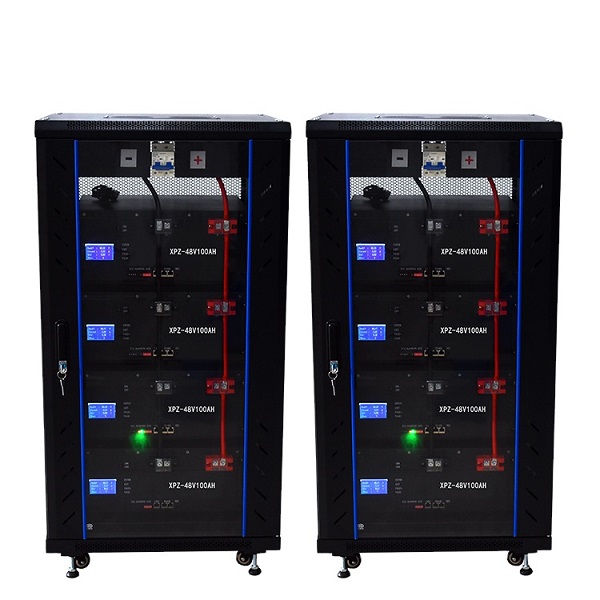

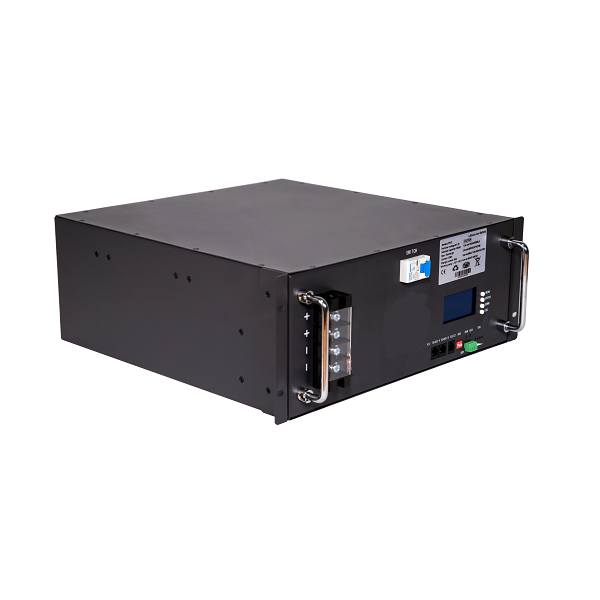

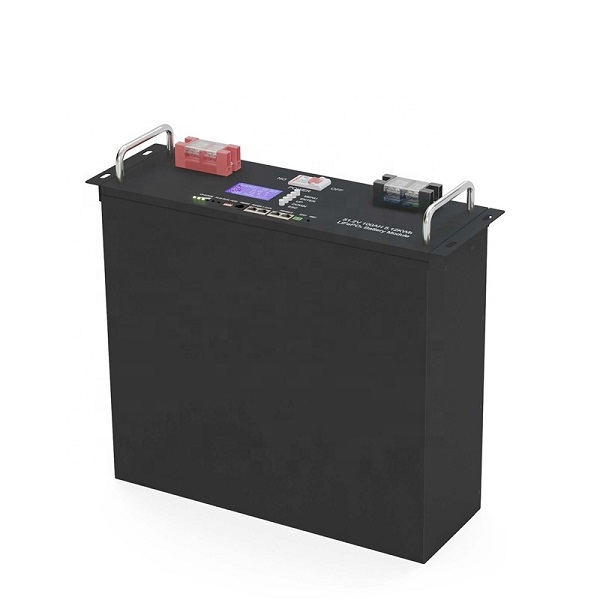

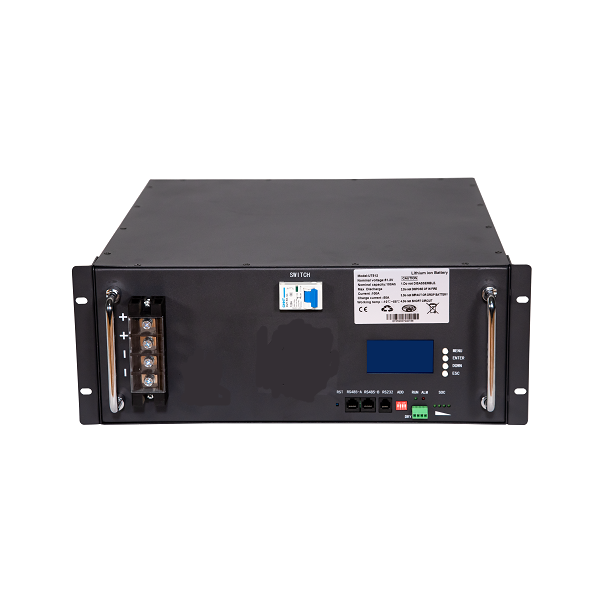

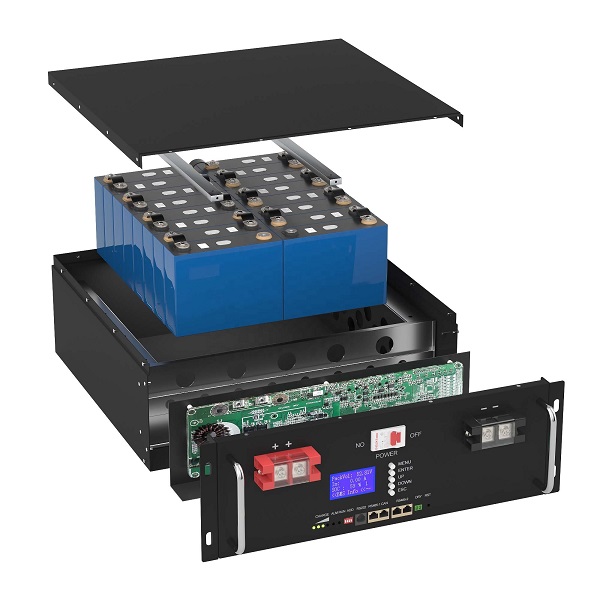

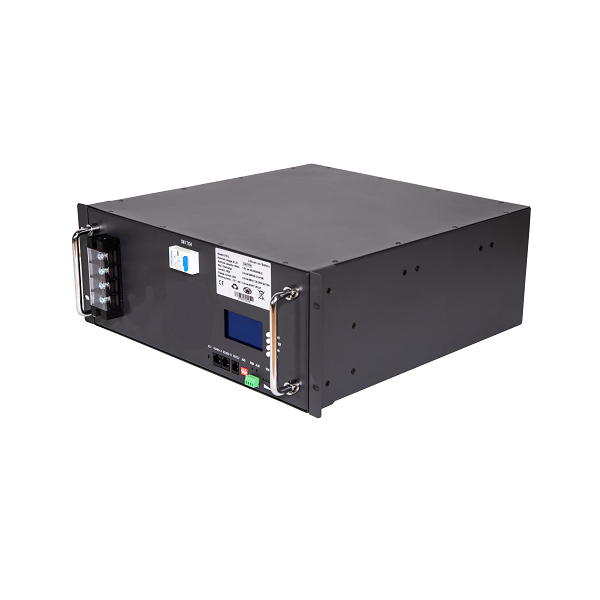

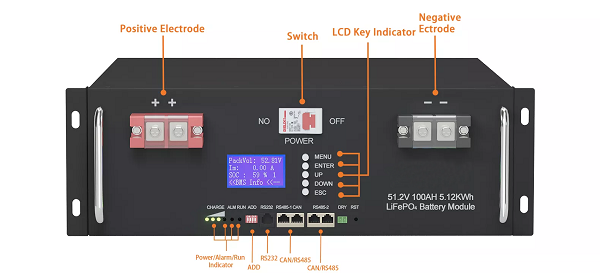

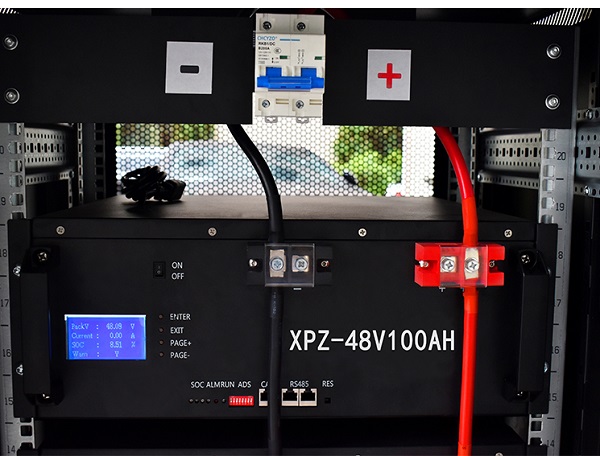

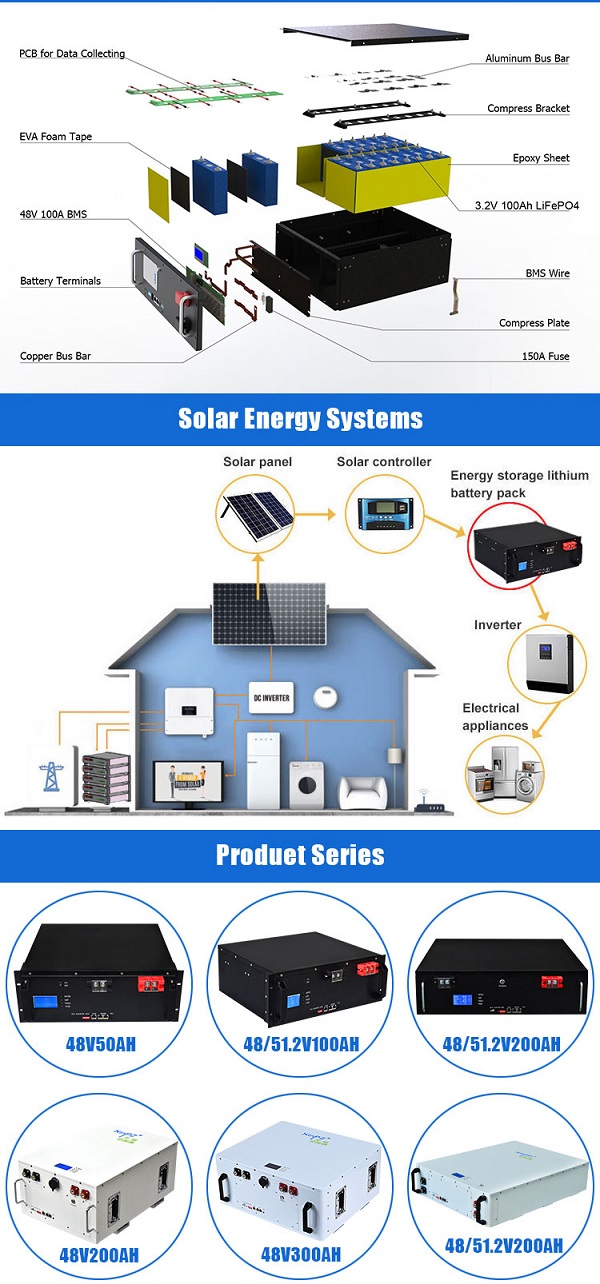

Product Pictures:
