E-bike Batteries

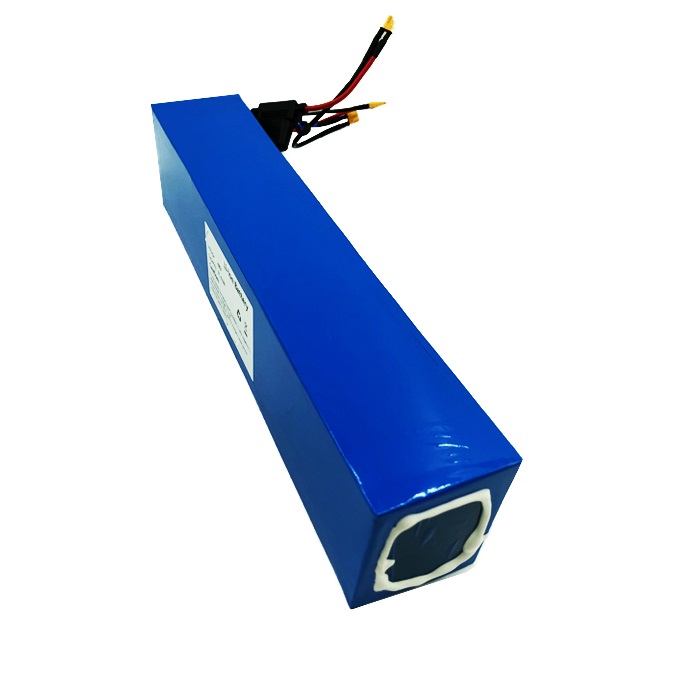

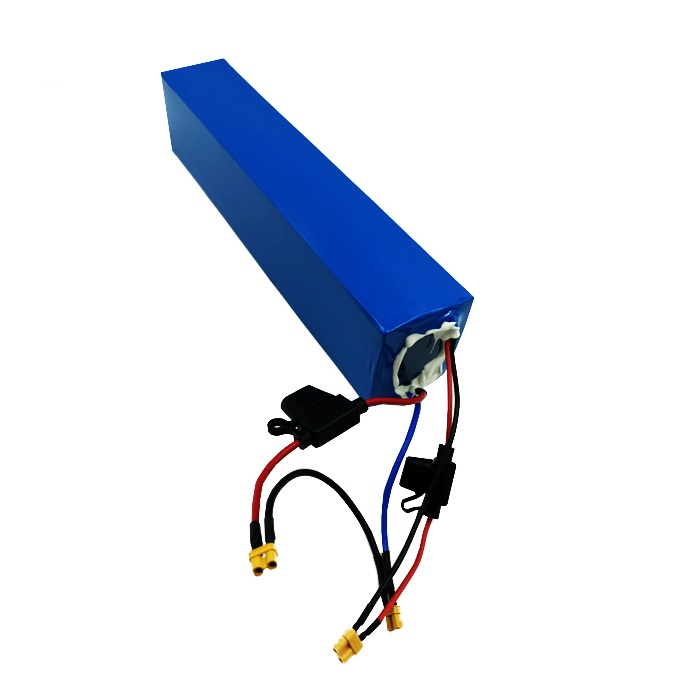

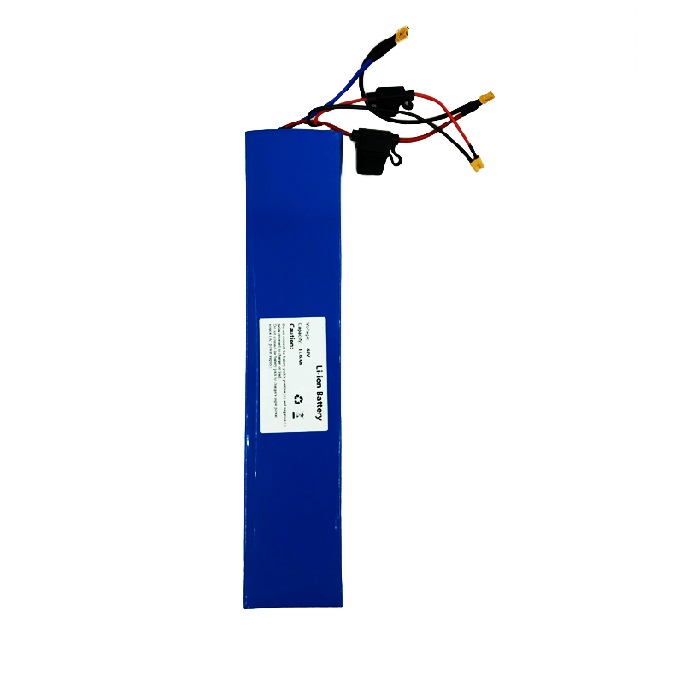

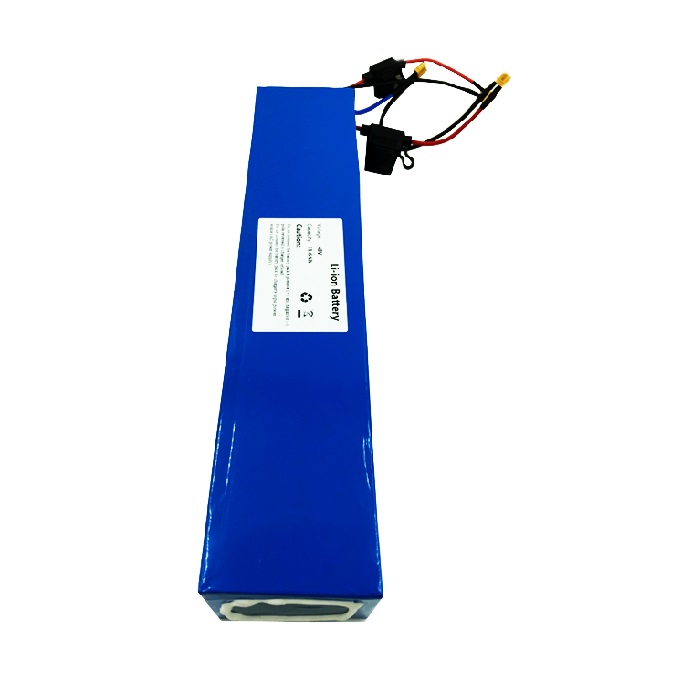

Lithium ion battery 48V 11.6Ah for e-bike e-scooter e-mobility

Lithium ion battery 48V 11.6Ah for e-bike e-scooter e-mobility

Nominal Voltage: 48V
Nominal Capacity: 11.6Ah
Max. Continuous Discharge Current: 10A
Peak Discharge Current: 30A
Product description: Lithium ion battery 48V 11.6Ah for e-bike e-scooter e-mobility Cycle Life: 1000 Cycles
INQUIRY

Lithium ion battery 48V 11.6Ah for e-bike e-scooter e-mobility

Specification:

Model: Li-Ion Battery 48V 11.6Ah

Battery Cell Type: Grade A Power Cells

Nominal Voltage: 48V

Nominal Capacity: 11.6Ah

Energy: 556.8Wh

Max. Continuous Discharge Current: 10A or customized

Peak Discharge Current: 30A

Charge Voltage: 54.6V

Standard Charge Current: 2A

Max. Charge Current: 10A

BMS Functions: Over Charge, Over Discharge, Over Current, Short Circuit and Temperature Protection.

Housing: PVC Wrapped, or Customized

Dimensions: Customized

Connector: Customized

Battery Indicator: Optional

Cycle Life: 1000 Cycles

Charge Temperature: -10℃ to 55℃ (-14F to 131F) @60±25% Relative Humidity

Discharge Temperature: -30℃ to 60℃ (-22F to 140F) @60±25% Relative Humidity

Storage Temperature: -10℃ to 45℃ (-14F to 113F) @60±25% Relative Humidity

Application: E-bike, E-scooter, E-mobility, Motorbike, Motorcycle, Tricycle, Electric Wheelchair, E-rickshaw, Golf Cart, VAN, RV, Marine, etc.

Other Standard E-bike Batteries:

Electric Bicycle Battery List
V/C	Battery type	Config.	Amp.(A)	Watts(W)	Dimension(MM)	Weight(KG)	Charger
Rear Rack type Li-ion battery
36V 10Ah	Li-ion	10S5P	20A	< 720W	36515069	3.5	2A
36V 12Ah	Li-ion	10S6P	20A	< 720W	36515069	4.18	2A
36V 15Ah	Li-ion	10S7P	20A	< 720W	36515069	4.88	3A
36V 16Ah	Li-ion	10S8P	20A	< 720W	36515069	5.58	3A
36V 18Ah	Li-ion	10S9P	20A	< 720W	36515082	5.57	3A
36V 20Ah	Li-ion	10S10P	20A	< 720W	36515082	6.4	3A
48V 10Ah	Li-ion	13S5P	20A	< 960W	36515069	4.55	2A
48V 12Ah	Li-ion	13S6P	20A	< 960W	36515069	5.45	2A
48V 15Ah	Li-ion	13S7P	20A	< 960W	36515082	5.82	3A
48V 16Ah	Li-ion	13S8P	20A	< 960W	36515082	6.65	3A
48V 18Ah	Li-ion	13S9P	20A	< 960W	36515082	7.48	3A
48V 20Ah	Li-ion	13S10P	20A	< 960W	36515082	8.32	3A
24V 10Ah	LiFePO4	8S3P	20A	< 480W	36515069	2.88	2A
24V 12Ah	LiFePO4	8S4P	20A	< 480W	36515069	3.78	2A
36V 10Ah	LiFePO4	12S3P	20A	< 720W	36515069	4.38	2A
36V 12Ah	LiFePO4	12S4P	20A	< 720W	36515069	5.84	2A
48V 10Ah	LiFePO4	16S3P	20A	< 960W	36515069	5.84	2A
Silver Fish type Li-ion battery
36V 10Ah	Li-ion	10S5P	20A	< 720W	38511075	3.28	2A
36V 12Ah	Li-ion	10S6P	20A	< 720W	38511075	3.72	2A
36V 14Ah	Li-ion	10S7P	20A	< 720W	38511075	4.35	3A
36V 15Ah	Li-ion	10S7P	20A	< 720W	38511075	4.35	3A
36V 16Ah	Li-ion	10S8P	20A	< 720W	40011075	5.05	3A
48V 10Ah	Li-ion	13S5P	20A	< 960W	38511075	4.1	2A
48V 12Ah	Li-ion	13S6P	20A	< 960W	40011075	4.85	2A
24V 10Ah	LiFePO4	8S3P	20A	< 480W	38511075	2.65	2A
24V 12Ah	LiFePO4	8S4P	20A	< 480W	42011075	3.78	2A
36V 10Ah	LiFePO4	12S3P	20A	< 720W	42011075	4.26	2A
Frog type Li-ion Battery
36V 10Ah	Li-ion	10S5P	20A	< 720W	25015080	3.62	2A
36V 12Ah	Li-ion	10S5P	20A	< 720W	25015080	3.62	2A
24V 10Ah	LiFePO4	8S3P	20A	< 480W	25015080	3.32	2A
Water Bottle type Li-ion Battery
36V 10Ah	Li-ion	10S5P	20A	< 720W	400*91	3.2	2A
36V 12Ah	Li-ion	10S6P	20A	< 720W	470*91	3.72	2A
48V 10Ah	Li-ion	13S5P	20A	< 960W	470*91	4.1	2A
24V 10Ah	LiFePO4	8S3P	20A	< 480W	280*91	2.14	2A
