Lithium ion battery 48V 20Ah for e-bike e-scooter motorbike

  • Nominal Voltage: 48V
  • Nominal Capacity: 20Ah
  • Max. Continuous Discharge Current: 20A
  • Peak Discharge Current: 60A
  • Product description: Lithium ion battery 48V 20Ah for e-bike e-scooter motorbike Cycle Life: 1000 Cycles
  • INQUIRY

Lithium ion battery 48V 20Ah for e-bike e-scooter motorbike





Specification:

Model: Li-Ion Battery 48V 20Ah

Battery Cell Type: Grade A Power Cells

Nominal Voltage: 48V

Nominal Capacity: 20Ah

Energy: 960Wh

Max. Continuous Discharge Current: 20A or customized

Peak Discharge Current: 60A

Charge Voltage: 54.6V

Standard Charge Current: 4A

Max. Charge Current: 20A

BMS Functions: Over Charge, Over Discharge, Over Current, Short Circuit and Temperature Protection.

Housing: Metal Case, PVC Wrapped, or Customized

Dimensions: 190*152*175mm or Customized

Connector: Customized

Battery Indicator: Optional

Cycle Life: 1000 Cycles

Charge Temperature: -10 to 55 (-14F to 131F) @60±25% Relative Humidity

Discharge Temperature: -30 to 60 (-22F to 140F) @60±25% Relative Humidity

Storage Temperature: -10 to 45 (-14F to 113F) @60±25% Relative Humidity

Application: E-bike, E-scooter, E-mobility, Motorbike, Motorcycle, Tricycle, Electric Wheelchair, E-rickshaw, Golf Cart, VAN, RV, Marine, etc.





Other Standard E-bike Batteries:

Electric Bicycle Battery List
V/C Battery type Config. Amp.(A) Watts(W) Dimension(MM) Weight(KG) Charger
Rear Rack type Li-ion battery
36V 10Ah Li-ion 10S5P 20A < 720W 365*150*69 3.5 2A
36V 12Ah Li-ion 10S6P 20A < 720W 365*150*69 4.18 2A
36V 15Ah Li-ion 10S7P 20A < 720W 365*150*69 4.88 3A
36V 16Ah Li-ion 10S8P 20A < 720W 365*150*69 5.58 3A
36V 18Ah Li-ion 10S9P 20A < 720W 365*150*82 5.57 3A
36V 20Ah Li-ion 10S10P 20A < 720W 365*150*82 6.4 3A
48V 10Ah Li-ion 13S5P 20A < 960W 365*150*69 4.55 2A
48V 12Ah Li-ion 13S6P 20A < 960W 365*150*69 5.45 2A
48V 15Ah Li-ion 13S7P 20A < 960W 365*150*82 5.82 3A
48V 16Ah Li-ion 13S8P 20A < 960W 365*150*82 6.65 3A
48V 18Ah Li-ion 13S9P 20A < 960W 365*150*82 7.48 3A
48V 20Ah Li-ion 13S10P 20A < 960W 365*150*82 8.32 3A
24V 10Ah LiFePO4 8S3P 20A < 480W 365*150*69 2.88 2A
24V 12Ah LiFePO4 8S4P 20A < 480W 365*150*69 3.78 2A
36V 10Ah LiFePO4 12S3P 20A < 720W 365*150*69 4.38 2A
36V 12Ah LiFePO4 12S4P 20A < 720W 365*150*69 5.84 2A
48V 10Ah LiFePO4 16S3P 20A < 960W 365*150*69 5.84 2A
Silver Fish type Li-ion battery
36V 10Ah Li-ion 10S5P 20A < 720W 385*110*75 3.28 2A
36V 12Ah Li-ion 10S6P 20A < 720W 385*110*75 3.72 2A
36V 14Ah Li-ion 10S7P 20A < 720W 385*110*75 4.35 3A
36V 15Ah Li-ion 10S7P 20A < 720W 385*110*75 4.35 3A
36V 16Ah Li-ion 10S8P 20A < 720W 400*110*75 5.05 3A
48V 10Ah Li-ion 13S5P 20A < 960W 385*110*75 4.1 2A
48V 12Ah Li-ion 13S6P 20A < 960W 400*110*75 4.85 2A
24V 10Ah LiFePO4 8S3P 20A < 480W 385*110*75 2.65 2A
24V 12Ah LiFePO4 8S4P 20A < 480W 420*110*75 3.78 2A
36V 10Ah LiFePO4 12S3P 20A < 720W 420*110*75 4.26 2A
Frog type Li-ion Battery
36V 10Ah Li-ion 10S5P 20A < 720W 250*150*80 3.62 2A
36V 12Ah Li-ion 10S5P 20A < 720W 250*150*80 3.62 2A
24V 10Ah LiFePO4 8S3P 20A < 480W 250*150*80 3.32 2A
Water Bottle type Li-ion Battery
36V 10Ah Li-ion 10S5P 20A < 720W 400*91 3.2 2A
36V 12Ah Li-ion 10S6P 20A < 720W 470*91 3.72 2A
48V 10Ah Li-ion 13S5P 20A < 960W 470*91 4.1 2A
24V 10Ah LiFePO4 8S3P 20A < 480W 280*91 2.14 2A



Fetures:

1) Environmental friendly

2) High density of energy

3) Light weight
4) Low self-discharge
5) Low internal resistance
6) Long cycle life, chargeable up to 1000 times

7) No memory effect

8) Doesn’t contain Mercury, No fire, No explosion, No leakage



* OEM ACCEPTED!!!

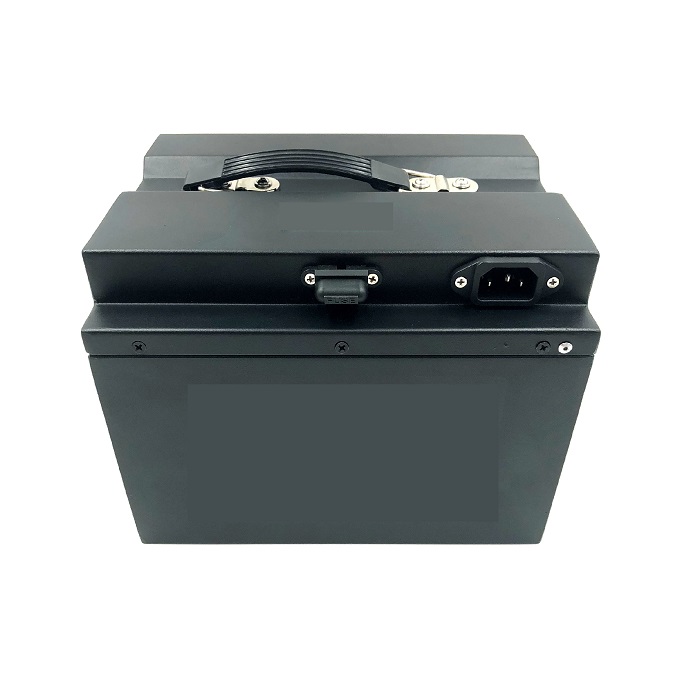

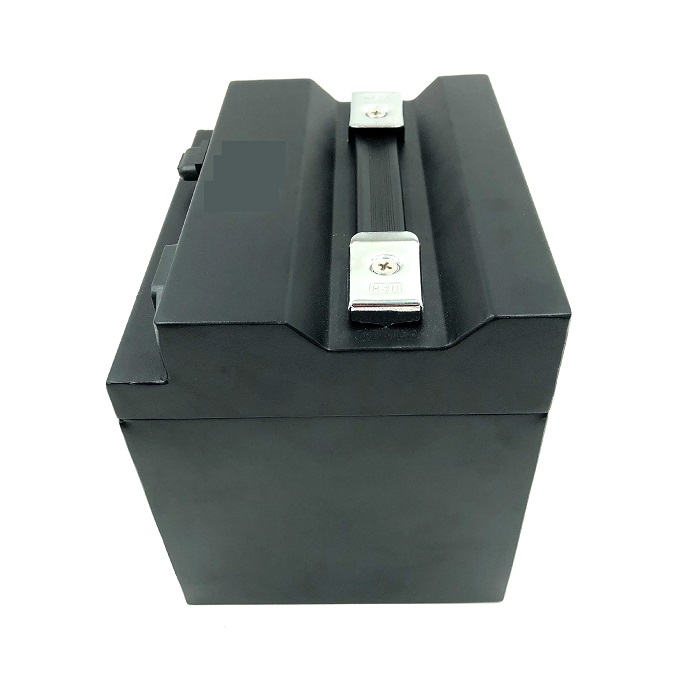

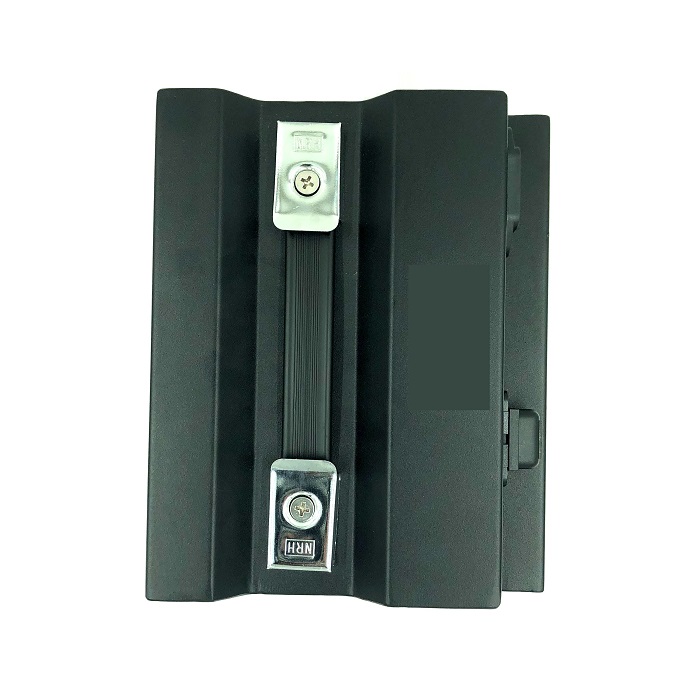

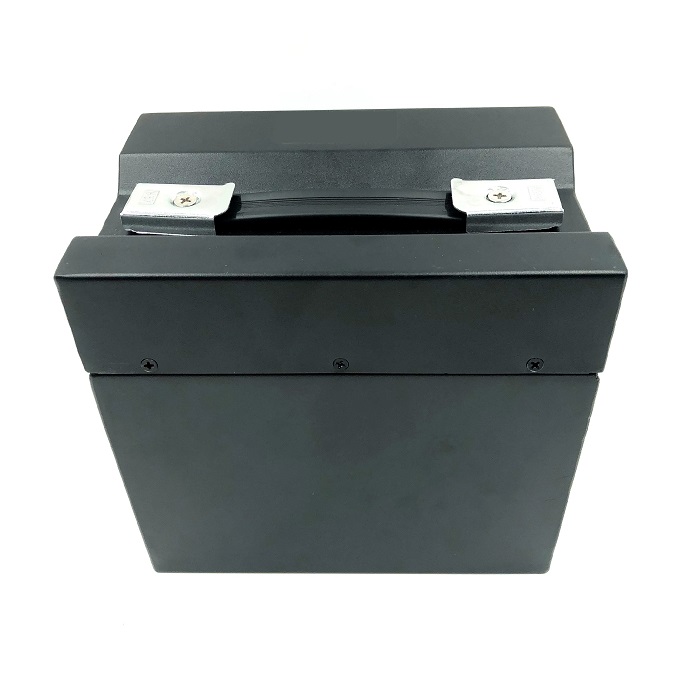

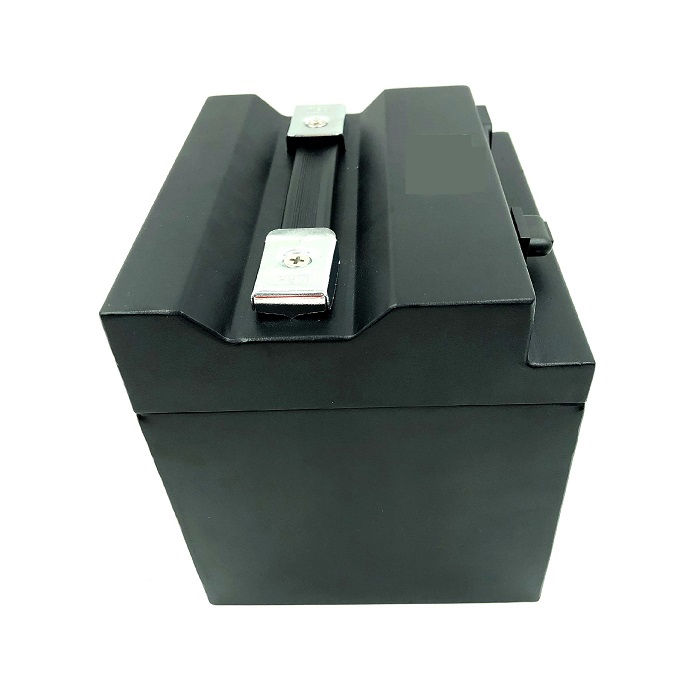

Production Pictures:
